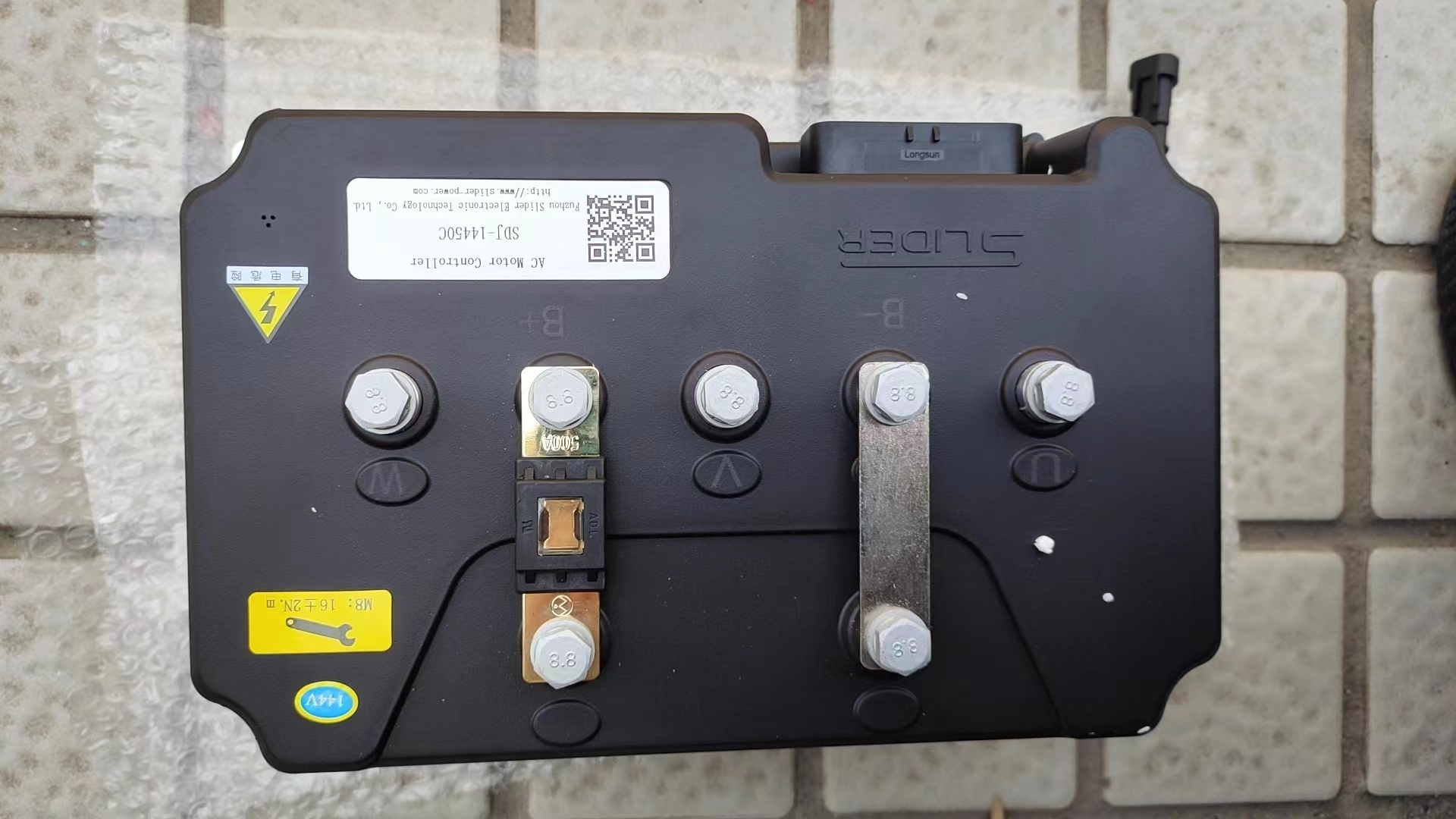

Forklift AC Controller 6236 Product Description

The 6236 AC controller is an AC asynchronous motor controller developed for forklifts. It applies advanced vector control algorithm and MOSFET drive technology, adopts CAN bus or wireless Bluetooth communication method, and can program and monitor the controller through a computer; this machine has an automatic motor matching function, which can make the motor run more efficiently; it has short circuit capabilities , overload, over temperature, high and low voltage and other multiple protection functions.

Designed in accordance with EN1175, EN13849 and UL583 specifications, it uses vector control and MOSFET technology to realize programming, parameter changes and data monitoring of the controller through a computer.

Features

• Professional asynchronous motors using mainstream DSP are used as digital drive control systems to build a good platform for motor control algorithms;
• International brand high-power MOSFET tubes are selected as power devices to achieve efficient energy conversion;
• High-current busbar technology, low heat generation, supports long-term high-current stalling;
• Dual CPU interlocking safety technology, micro-motion technology and steep slope descent and slope holding technology;
• Protection grade IP65, can operate in the environment of -40℃-+55℃;
• Support short circuit protection (phase-ground-phase-source) overload, over-temperature, and over-voltage protection;
• Dynamic low-speed feedback electric braking technology improves the vehicle's driving range;
• CAN bus technology reduces wiring and enables parameter adjustment and online programming of the controller;
• Multiple safety CAN interface protection and lithium battery BMS for safety certification management;
• Adopt a compact design to make the volume smaller and lighter;
• Adaptive function simplifies installation and debugging steps.
• Parameters or software can be customized according to customer needs.

Product parameters

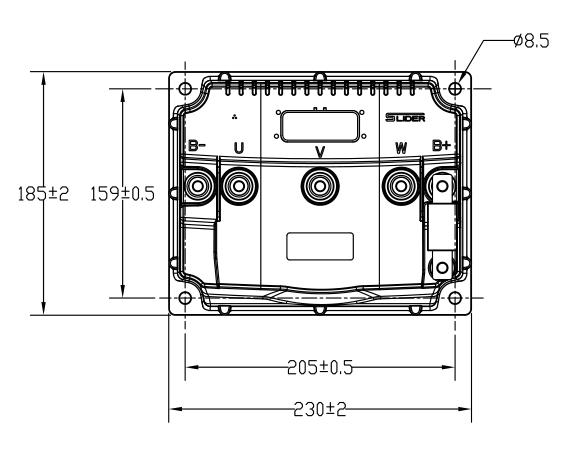

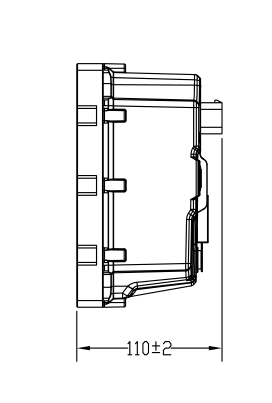

physical dimension
