370 miniature 12V24V DC deceleration motor 5W slow forward and reverse gear low speed slow electric small motor

Brand: XD
Model: XD-25GA370
Origin: Mainland China
Power mode: DC
Voltage: 24V
Model:: XD-25GA370
Operating speed: low speed motor
Function type:: DC geared motor
Power Type:: DC Motor

Micro DC reduction motor

Voltage: 24V/12V

Power: 5W

Speed adjustable/reversible/sample available

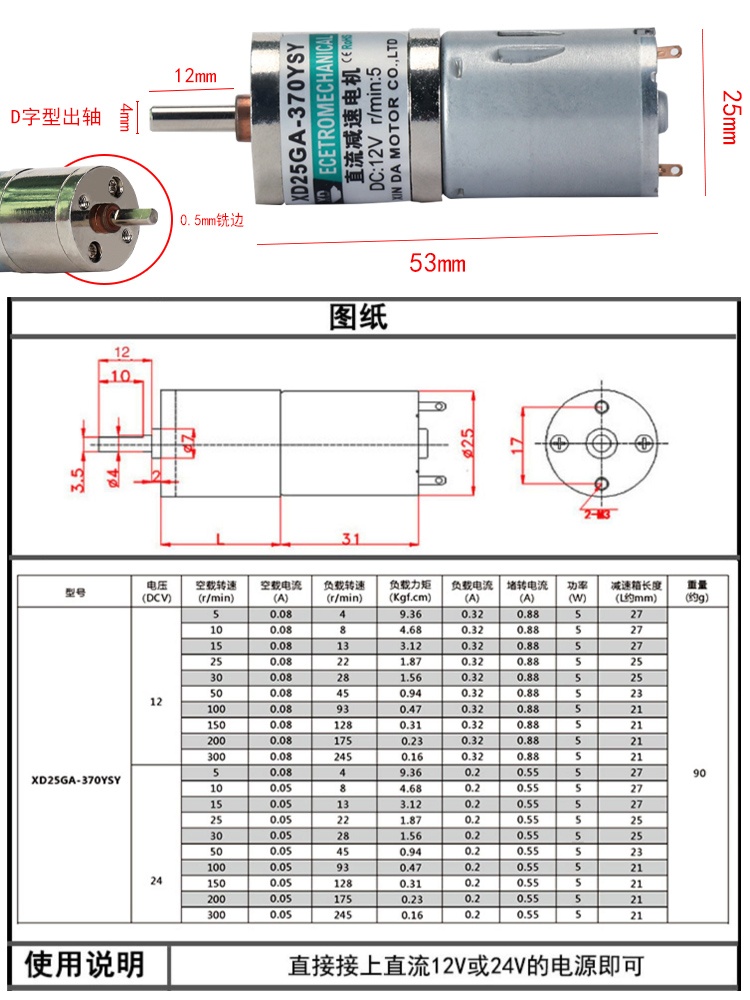

Motor Parameter

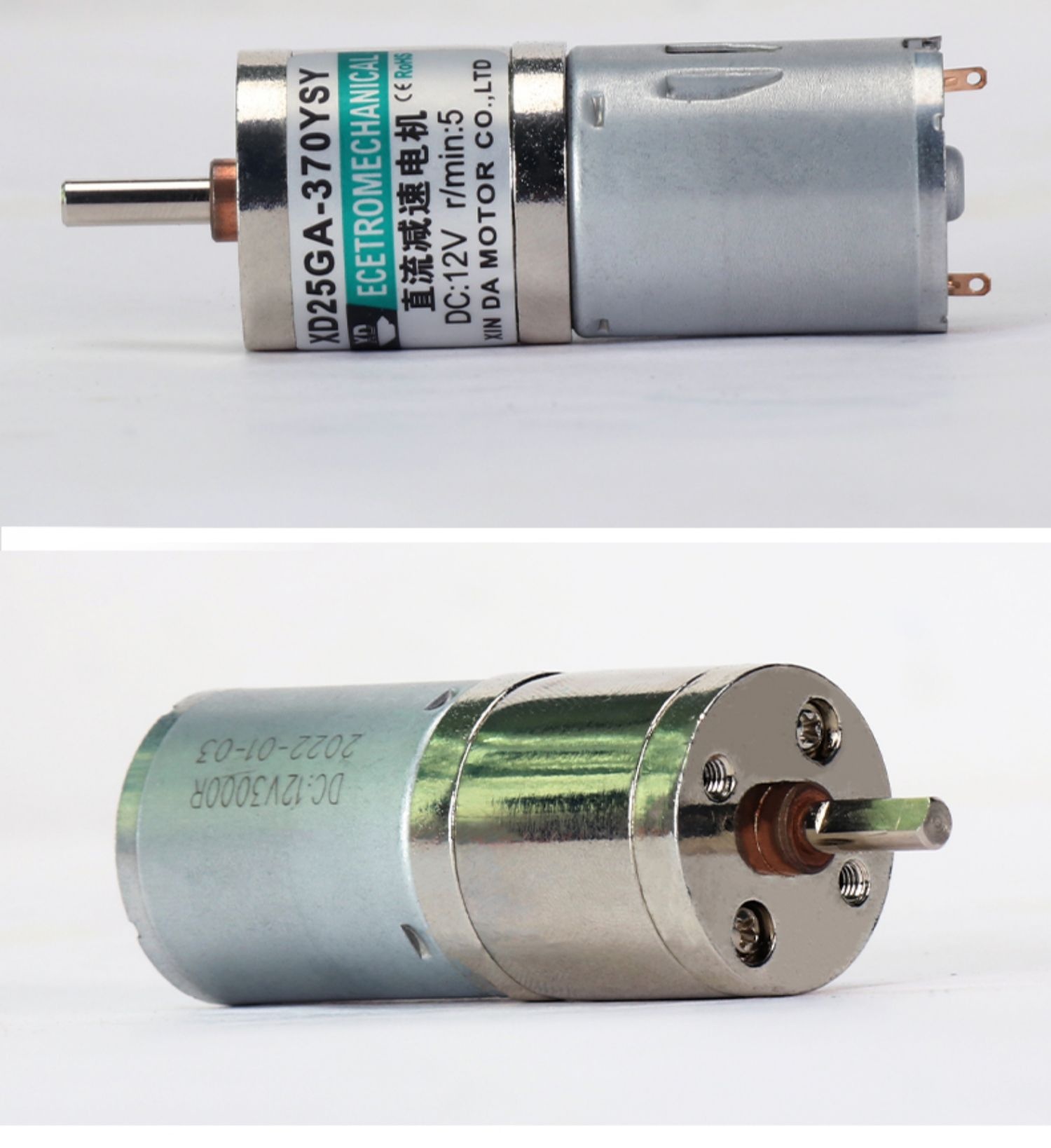

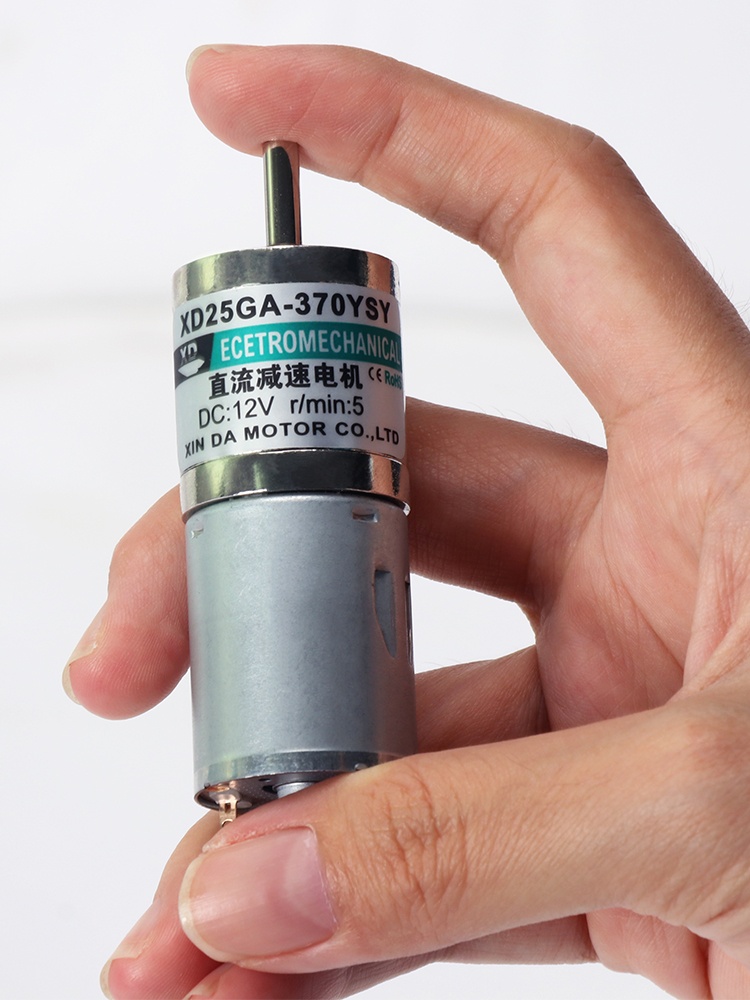

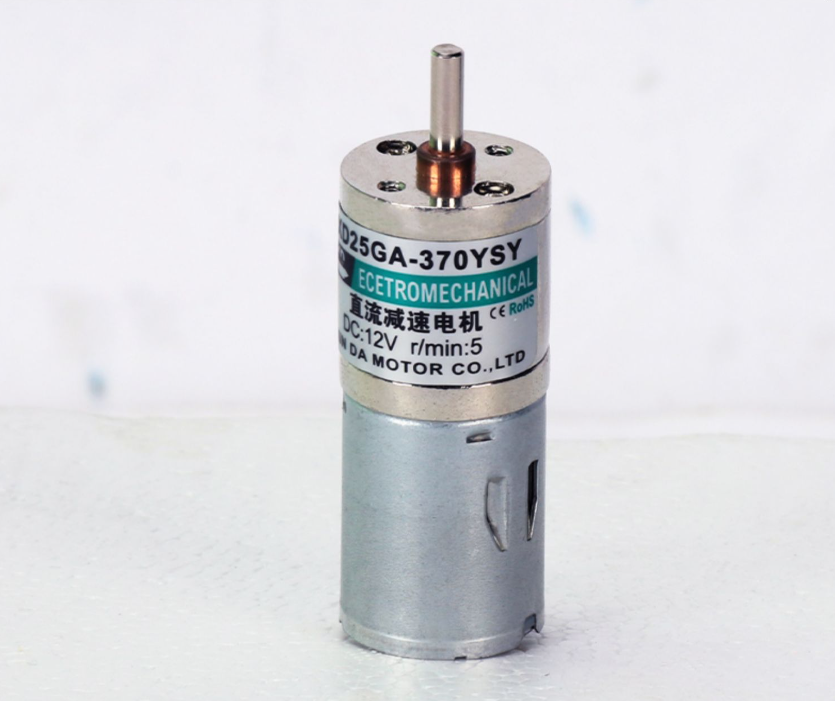

Real photos of the motor

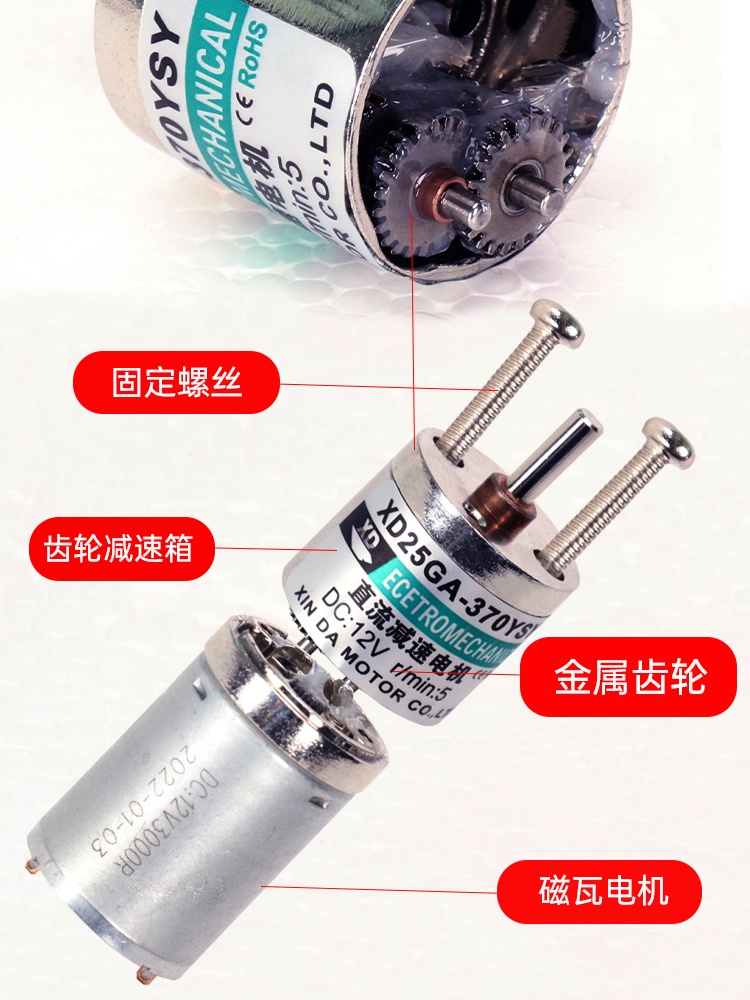

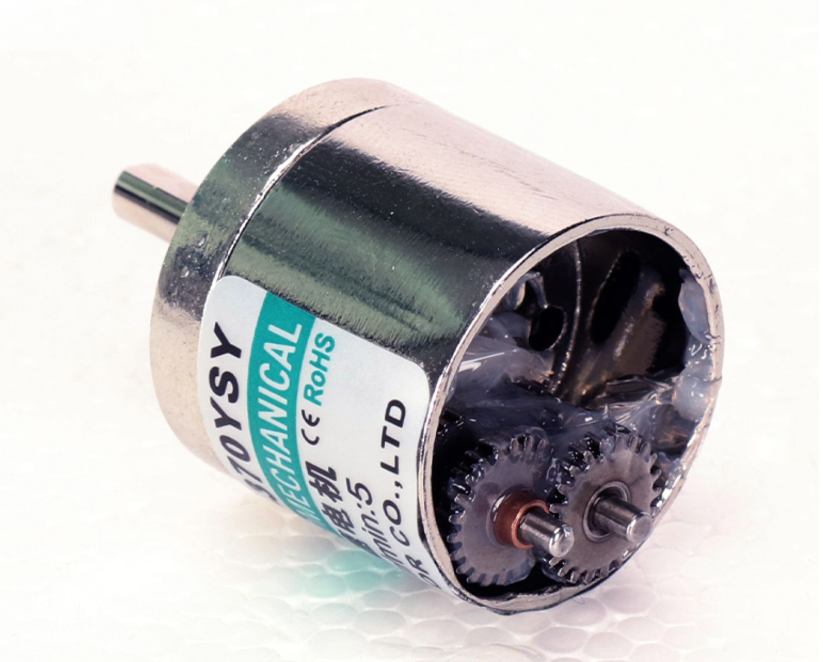

Structure of the Motor

Fxiture screw/Gearbox/Metal Gear/magnetic motor

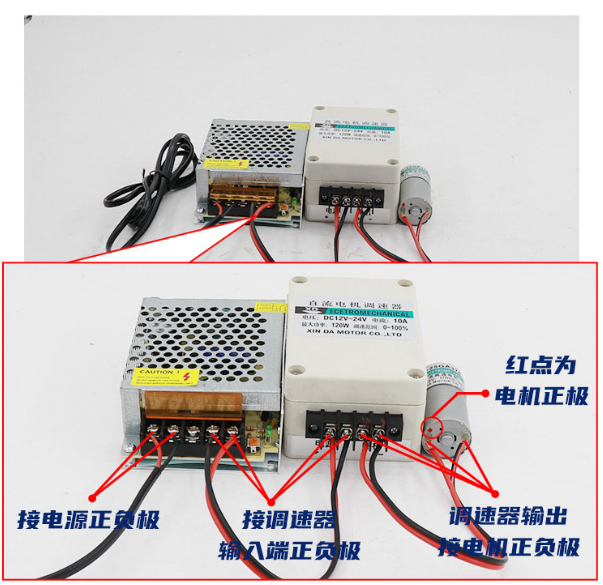

Motor wiring connection view

Application

The XD25GA370 DC motor could be used for food machine, auto sales machine, packaging machine, gateway, sweeping vehicle, etc..
