5D120GN-C 12V24V 120W High power for led light DC deceleration high torque 16-1000rpm Gear Motor

Essential details

Warranty:Other
Place of Origin:China
Brand Name: XD
Model Number: XD-5D120GN-C
Usage:Electric Bicycle, FAN, Home Appliance, Cosmetic instrument, SMART HOME
Type:GEAR MOTOR
Torque:10.9-242.88kg.cm
Construction:Permanent Magnet
Commutation:Brush
Protect Feature:Totally Enclosed
Speed(RPM):16-1000rpm
Continuous Current(A):7A
Efficiency:IE 2
Certification:CCC,ce,RoHS
Single package size: 15X10X9 cm

Single gross weight:4.400 kg

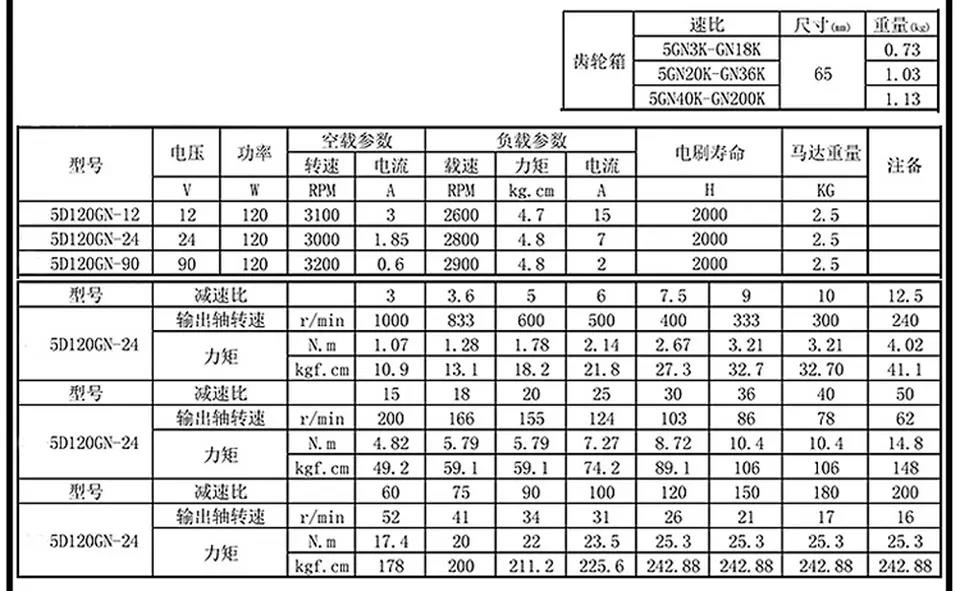

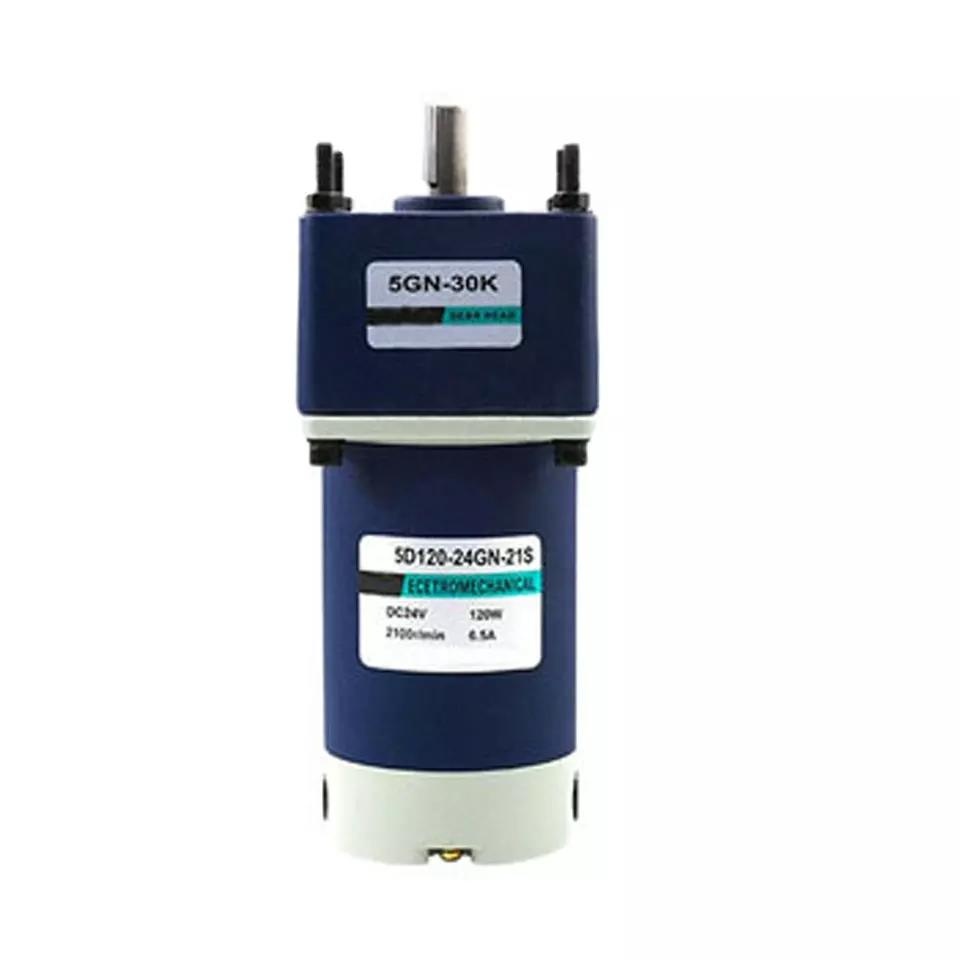

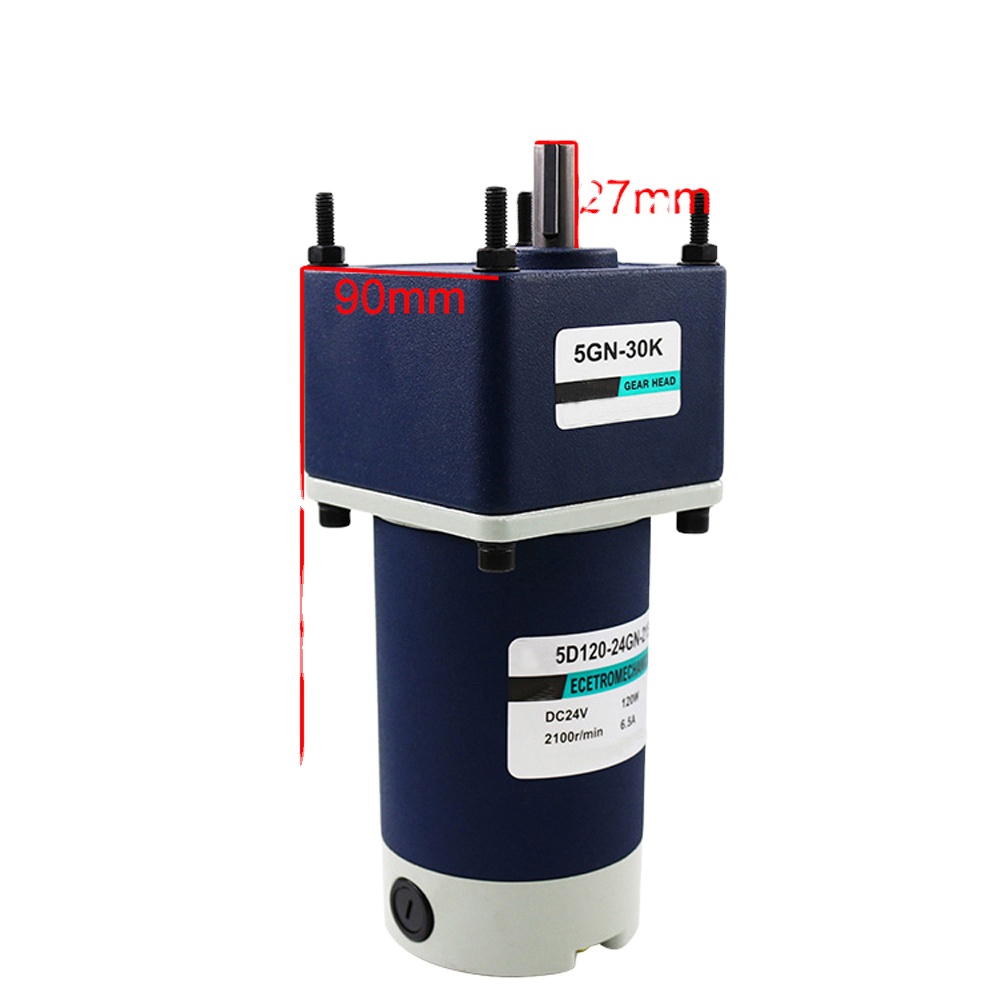

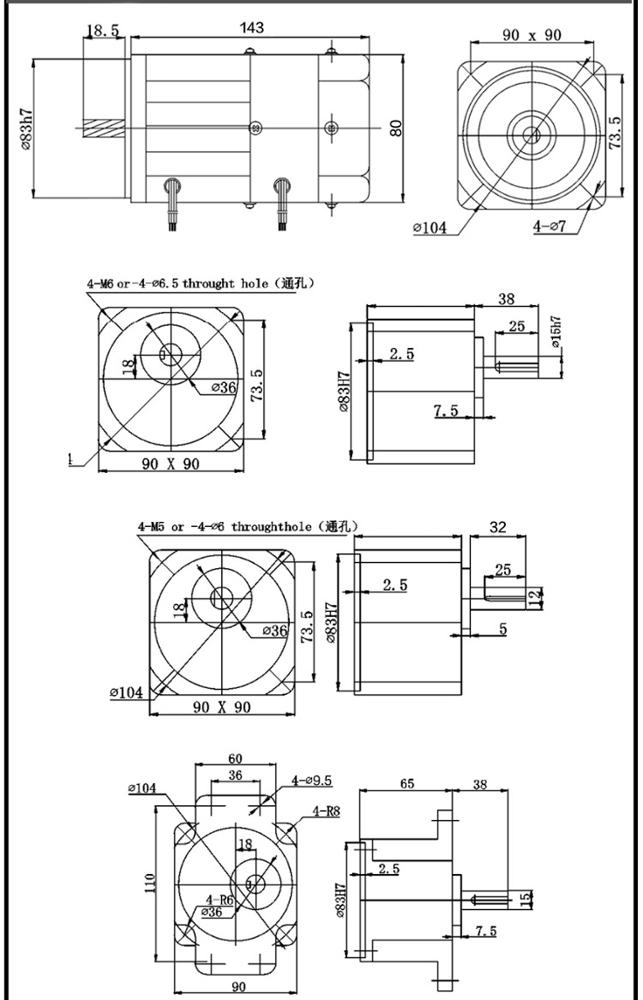

Product show & Drawing
