Brushless reduction motor

Date：2025-01-04　　　Author：XINDA MOTOR

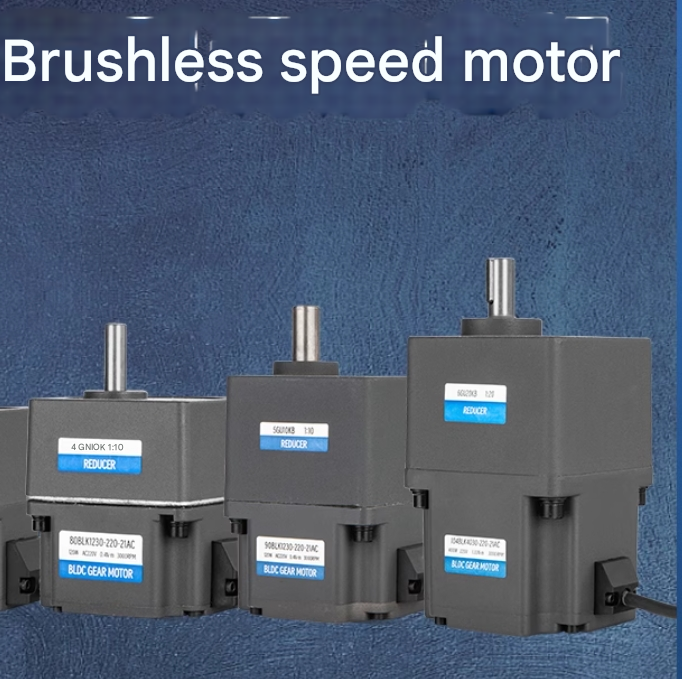

AC brushless reduction motor micro 220v

#brushlessmotor #ACMotor #micromotor #GearedMotors #bldcmotor

sort by model type:

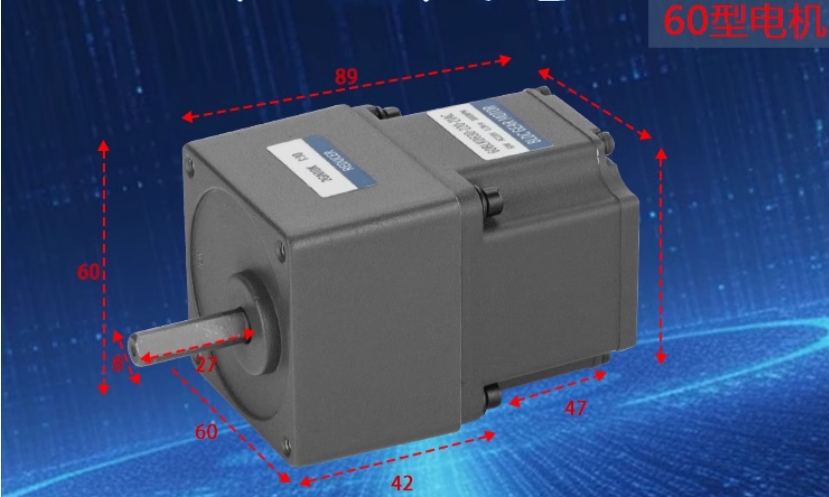

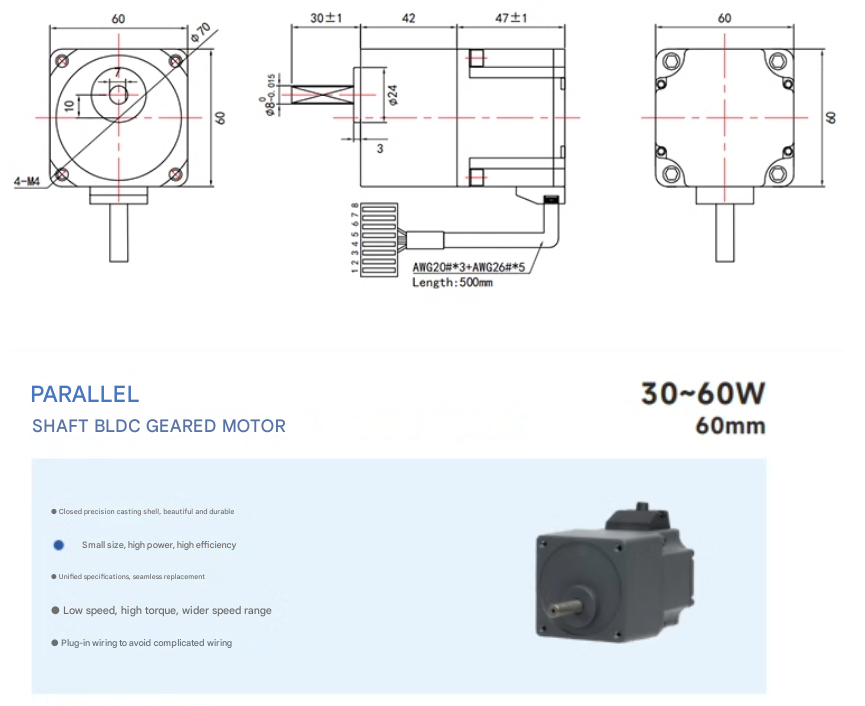

60 type 30w 8 axis D type

60 type 60w 8 axis D type

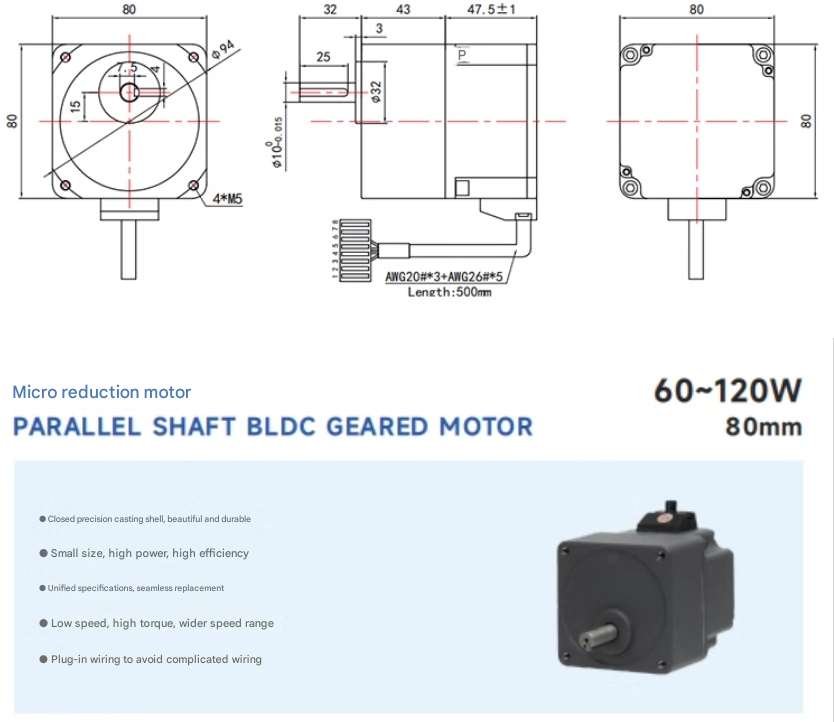

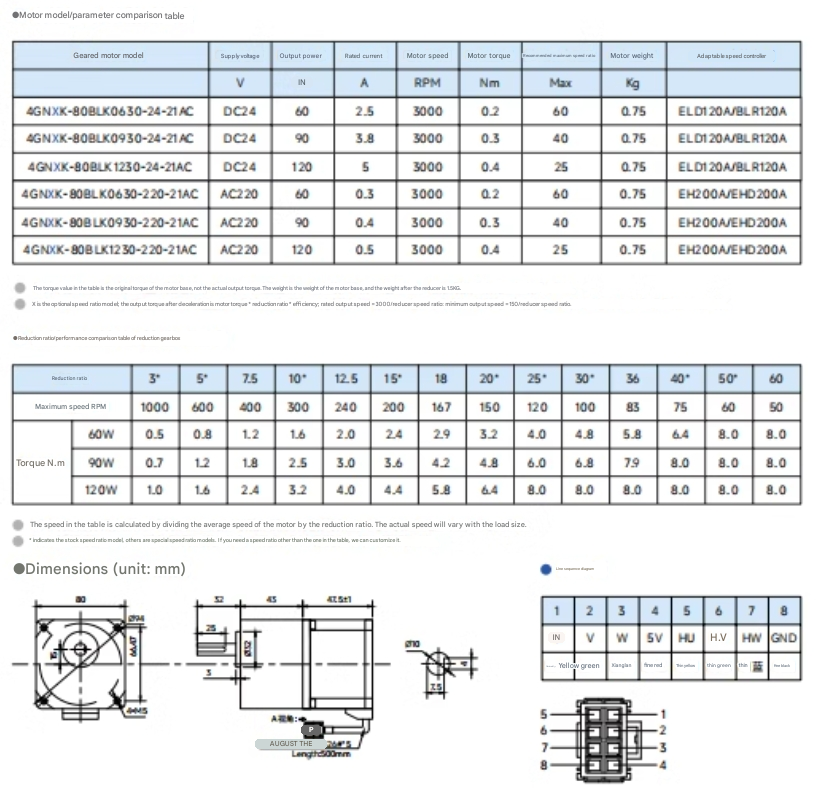

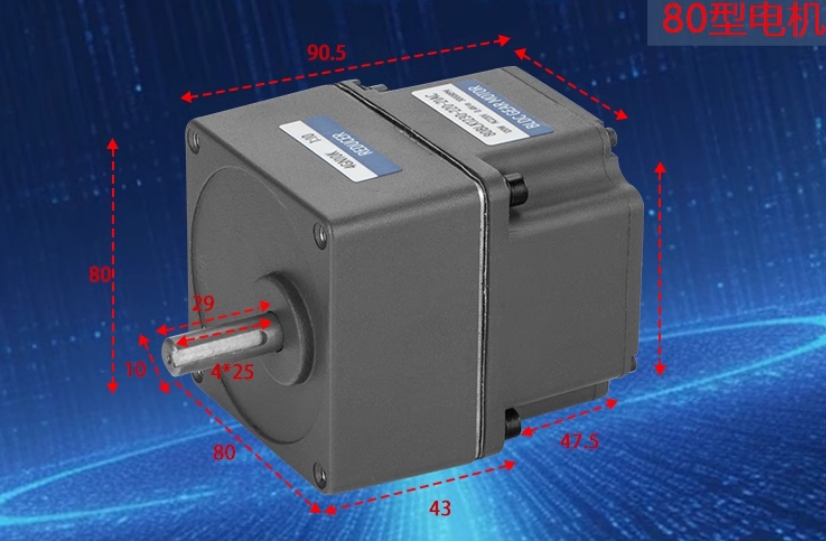

80 type 60w10 shaft keyway

80 type 120w10 shaft keyway

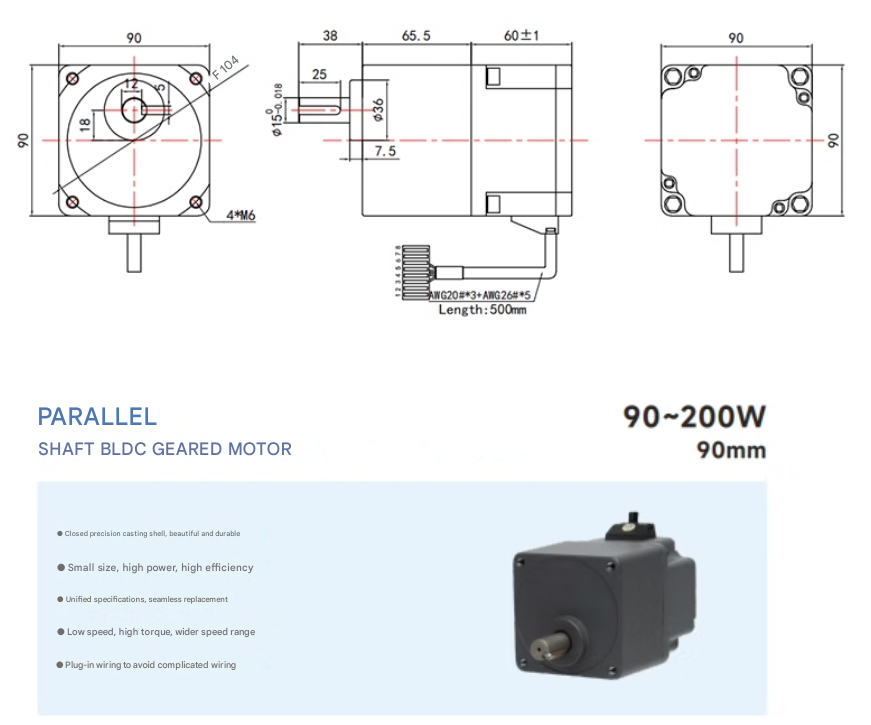

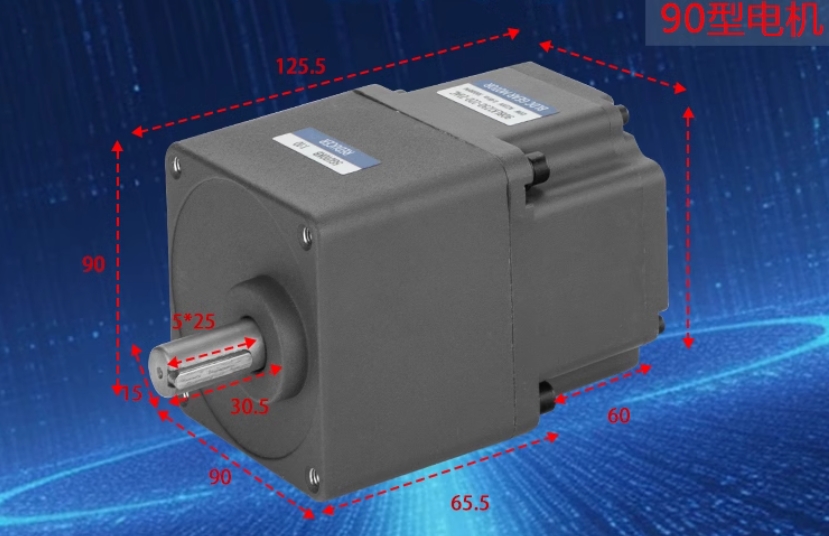

90 type 120w15 shaft keyway

90 type 200w15 shaft keyway

90 type 400w custom made

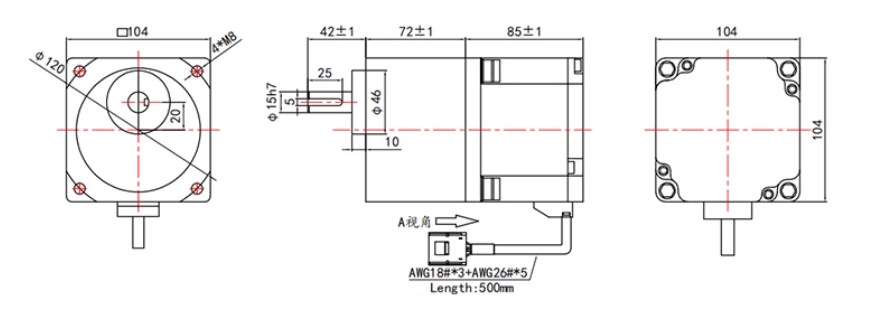

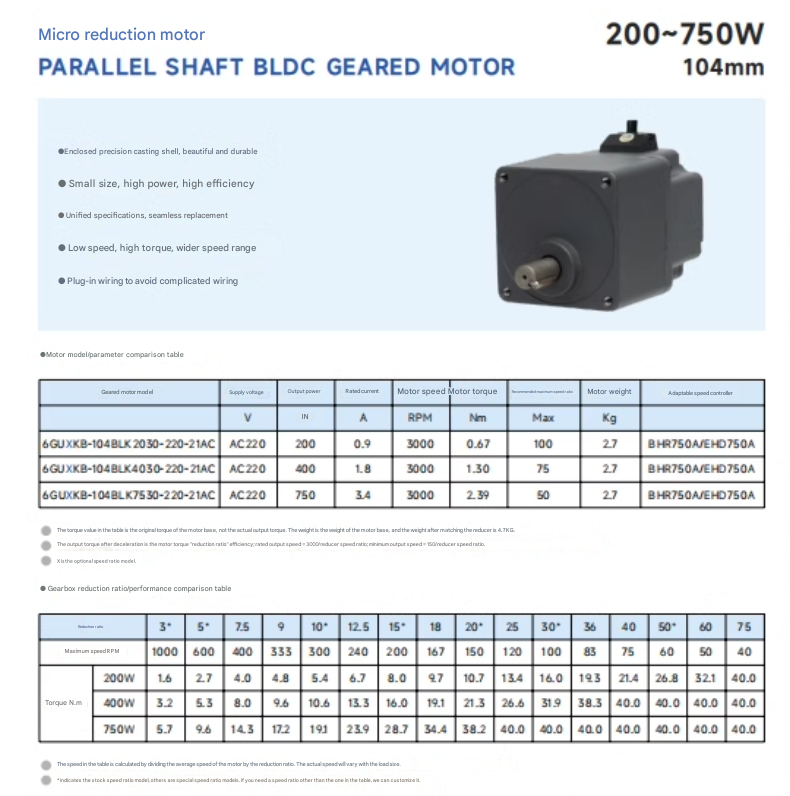

104 type 400w15 shaft keyway

104 type 750w15 shaft keyway

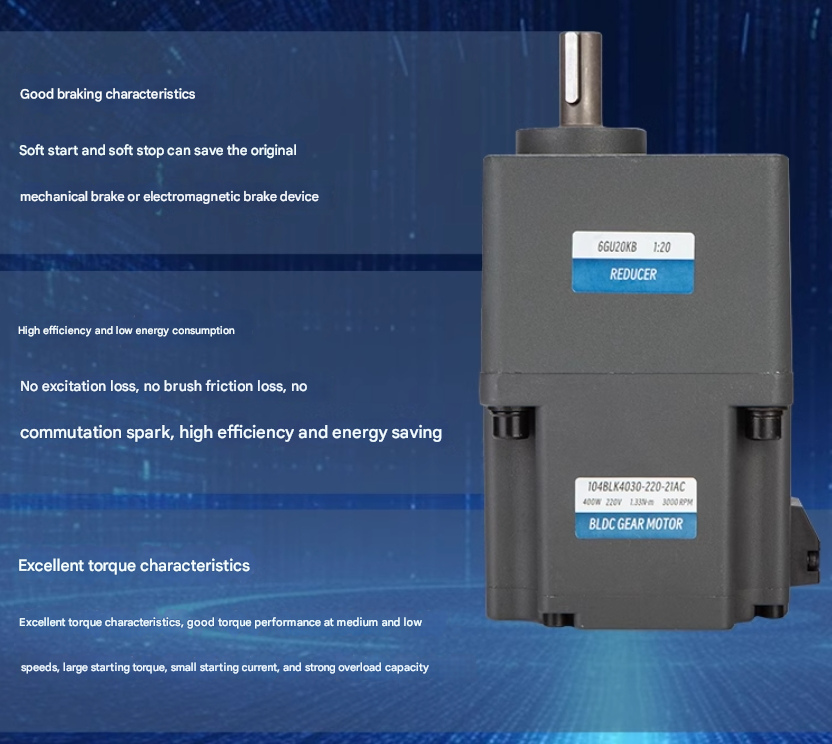

Good braking characteristics
Soft start and stop can save the original mechanical brake or electromagnetic brake device
High efficiency and low energy consumption
No excitation loss, no brush friction loss, no commutation spark, high efficiency and energy saving
Excellent torque characteristics
Excellent torque characteristics, good torque performance at medium and low speeds, large starting torque, small starting current, strong overload capacity

Reduction ratio:

Speed ratio 1/5, 600 rpm

Speed ratio 1/10, 300 rpm

Speed ratio 1/15, 200 rpm

Speed ratio 1/20, 150 rpm

Speed ratio 1/25, 120 rpm

Speed ratio 1/30, 100 rpm

Speed ratio 1/35, 85 rpm

Speed ratio 1/40, 75 rpm

Speed ratio 1/45, 67 rpm

Speed ratio 1/50, 60 rpm

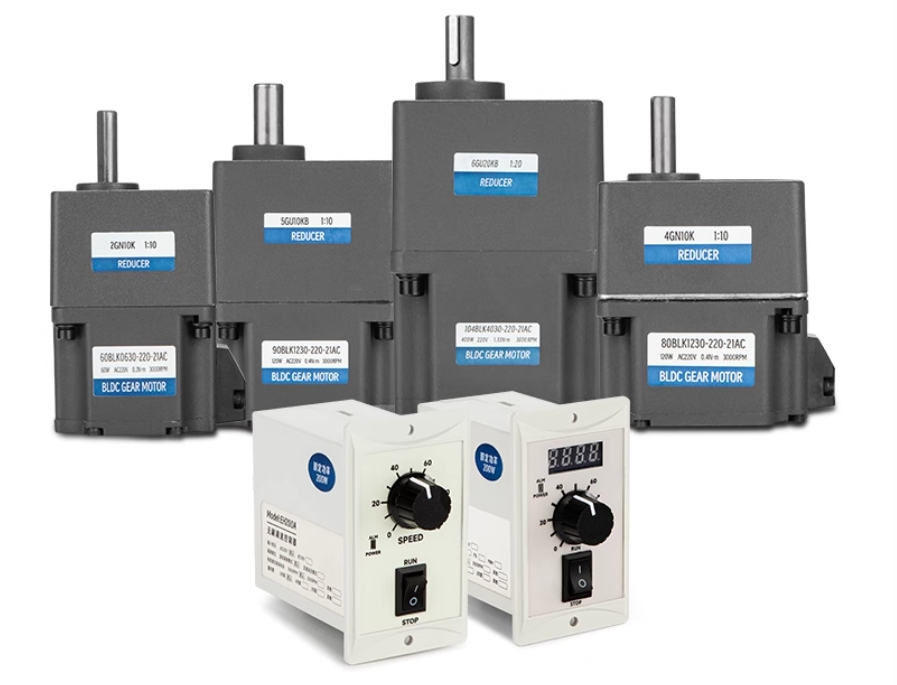

Speed regulator:

Ordinary speed regulator

Digital speed controller

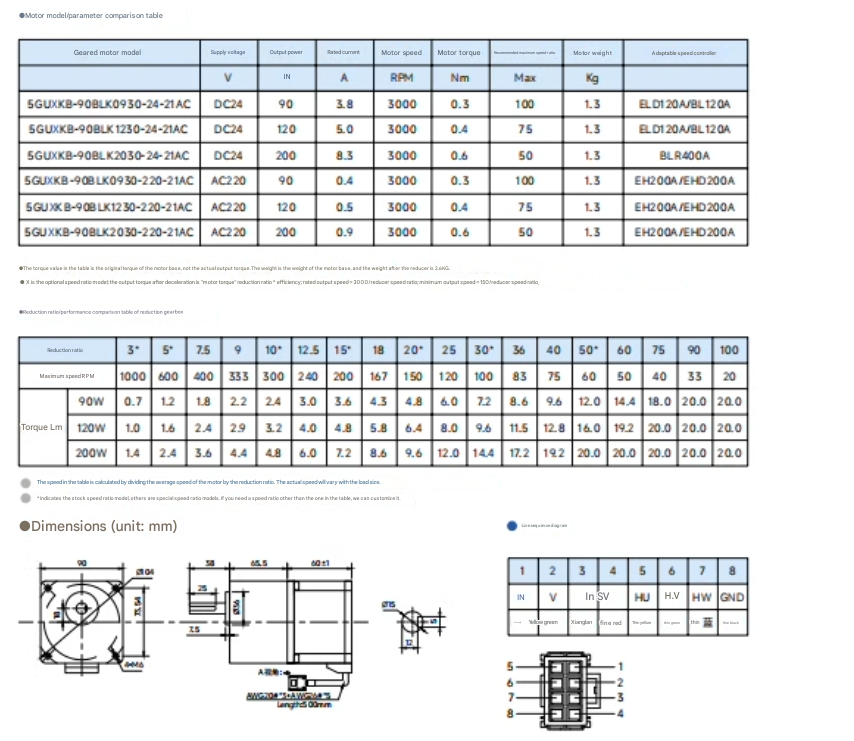

Parameter information

model

Brushless reduction motor

Origin

Chinese mainland

Voltage

220V

Power supply mode

Alternating current

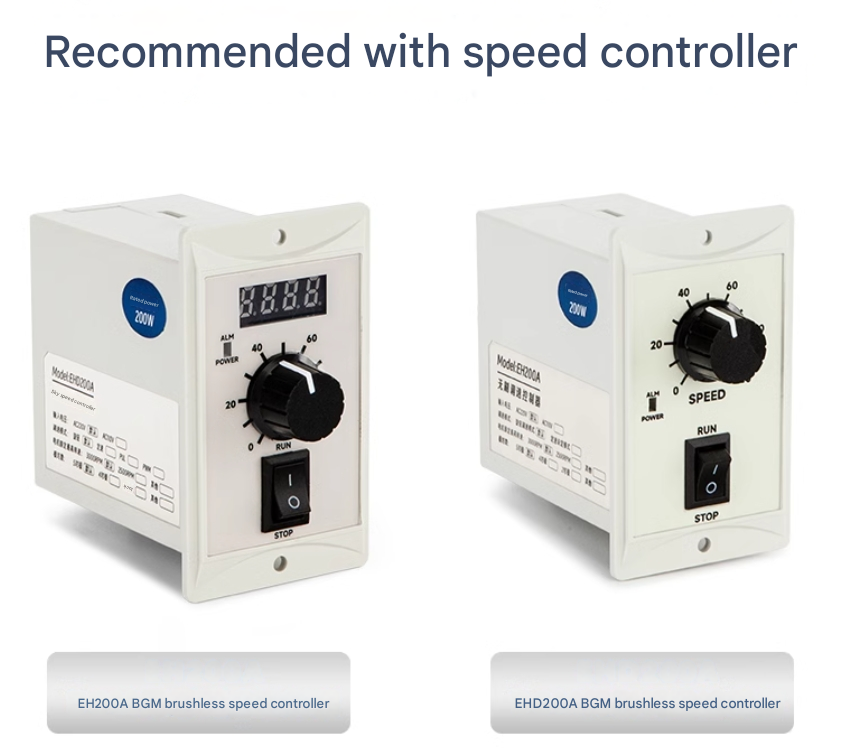

EH200A
BGM brushless speed controller
EHD200A
BGM brushless speed controller

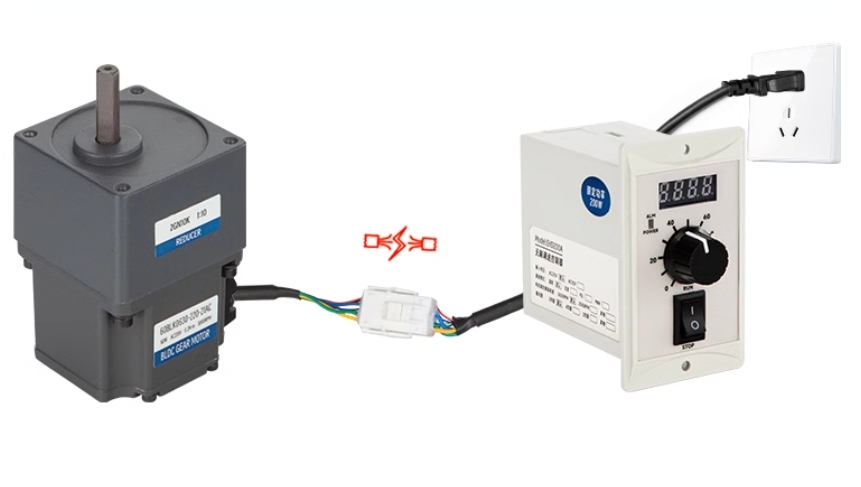

With BGM exclusive adapter speed controller, it has fast startup and response speed. In the case of AC motor plus inverter, it can further highlight its high cost-effectiveness, and the wiring is convenient and it can be used immediately after power on.
