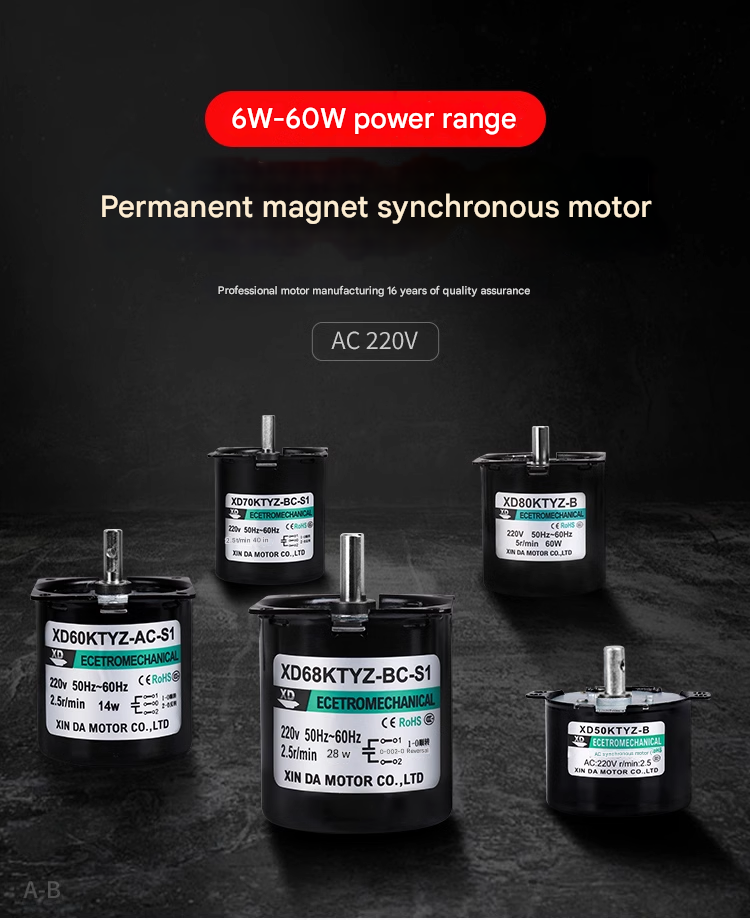

14W-60W PMSM motors
1. Can this motor be adjusted in speed?
This motor cannot be adjusted in speed. This motor is a fixed speed motor. You can take a picture of the speed, that is, how many revolutions per minute.
2. Where can this motor be used? As long as the motor size, voltage, speed, and torque meet your requirements, it can be used in any automated mechanical equipment, such as: light boxes, barbecue grills, automatic curtains, etc.
Can this motor be reversed? 3. It can be reversed, with a forward and reverse switch or by changing the wiring port to control the forward and reverse.
4. What is the normal operating temperature of the motor?
The operating temperature is below 85 degrees.
5. Is the motor loud?
The normal operating sound of the motor is about 45 decibels (normal speaking volume)

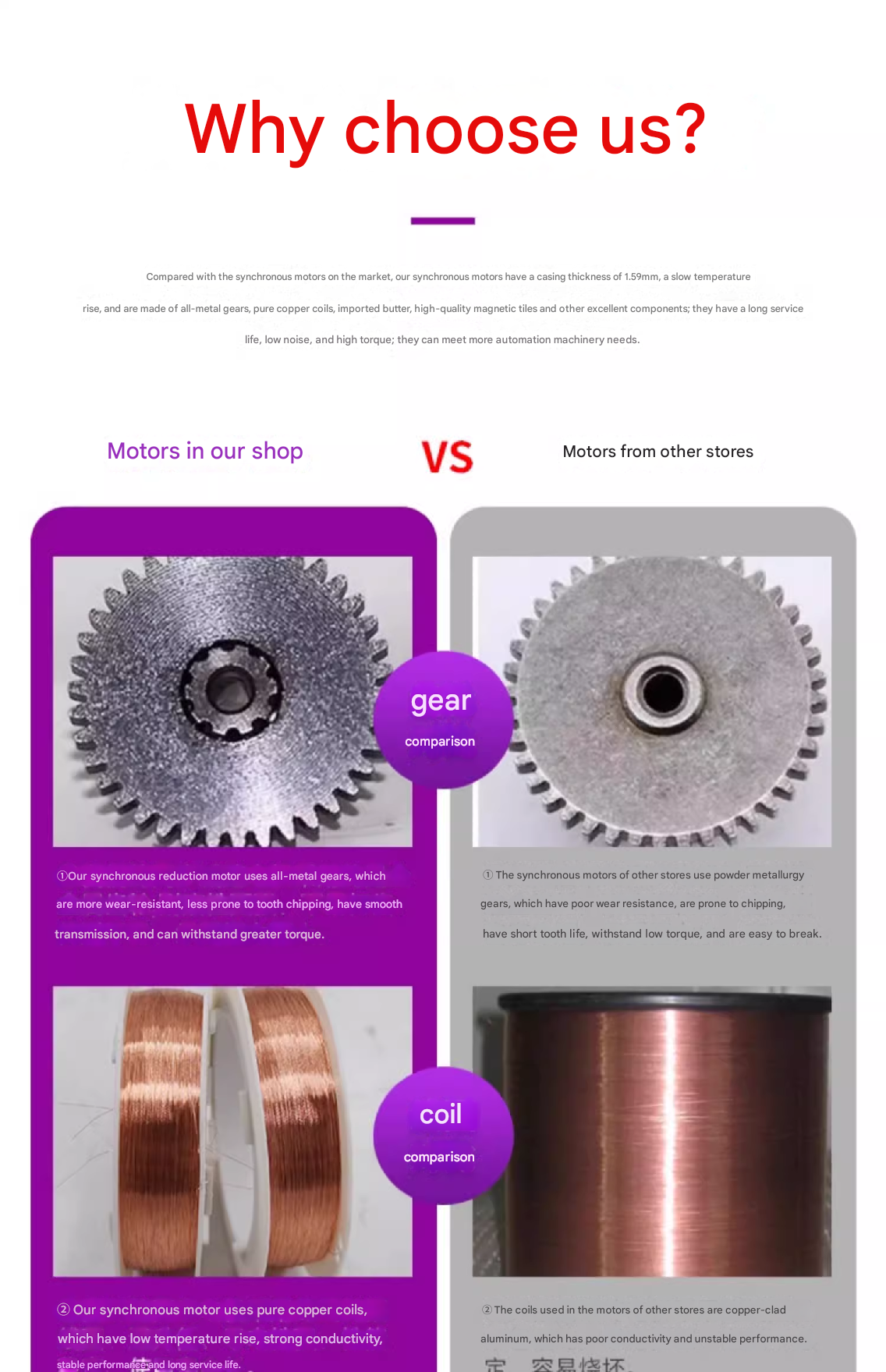

Why choose us?
Compared to the synchronous motors on the market, our synchronous motors have a casing thickness of 1.59mm, slow temperature rise, and use all-metal gears, pure copper coils, imported butter, high-quality magnetic tiles and other excellent components; long service life, low noise, high torque; meet more automation machinery needs.
The motor is quiet when running. Each component is carefully selected. The normal operation of the motor is about 45 decibels, which is a quiet office volume.
Motor ambient temperature
Motor temperature rise 60K, motor operating temperature below 85° is normal
Ambient temperature range -10-100°
Special environment can be customized
High temperature 100℃℃
Low temperature -10°C
Wide range of uses
As long as the motor size, voltage, speed, and torque meet your requirements: the motor can be used on any automated mechanical equipment.
Wide range of use, from general household machines to production equipment, widely used in various fields of automation: for example: automatic mahjong tables, automatic barbecue machines, stage lighting, electric dining tables, electric curtains, sweepers, barbecue equipment, water meter IC cards, oil valves, vending machines, medical equipment, rotating antennas, advertising light boxes, channel gates and other products.

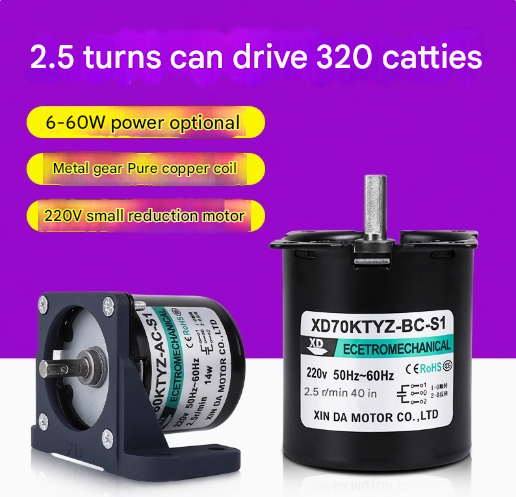

Model: 50/60/68/70/80KTYZ
Output shaft type: center output shaft/eccentric output shaft

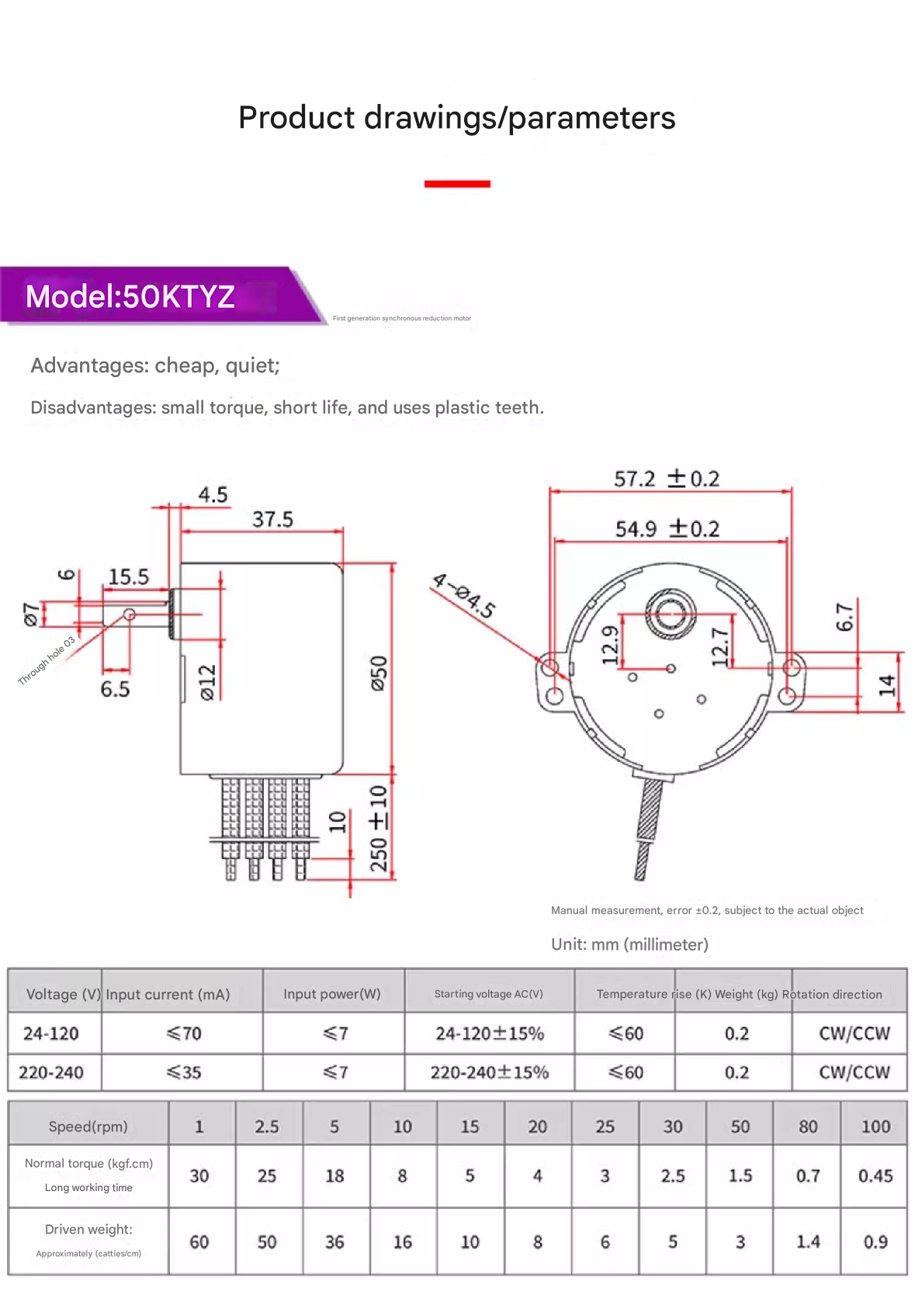

Output shaft size: refer to the drawing for details
Voltage: 220V
Power: 6-60W
Weight: refer to the parameter table for details
Motor speed: 2.5/5/10/20/30/50/80/110
Product features: can be reversed, can work continuously for 24 hours
If the conventional parameters do not meet your requirements, we support customization. We have our own factory, 16 years of experience in motor manufacturing, a strong development team, professional technical support, and our products are 3C certified, with guaranteed quality.
Product wiring display
The wiring is simple and convenient, and can be used with 220V household electricity (pay attention to safety)
Connect the forward and reverse switch
Two wires connect the forward and reverse switch to the motor, as shown in the figure 34 power line, one to the middle port of the motor, and one to the middle port of the forward and reverse switch.
4 output wires of the motor:
Two black wires are connected to one end of the power line, as shown in the figure (1 Red wire/green wire is connected to the left and right ends of the forward and reverse switches, as shown in the figure
Power line:
-one wire is connected to the motor as shown in the figure (1) The other wire is connected to the middle port of the forward and reverse switches as shown in the figure 4
Capacitor:
Respectively connect the two ends of the forward and reverse switches, as shown in the figure ②③
