5882-45ZY worm motor

Date：2024-10-05　　　Author：Shandong Xinda Motor Co., Ltd.

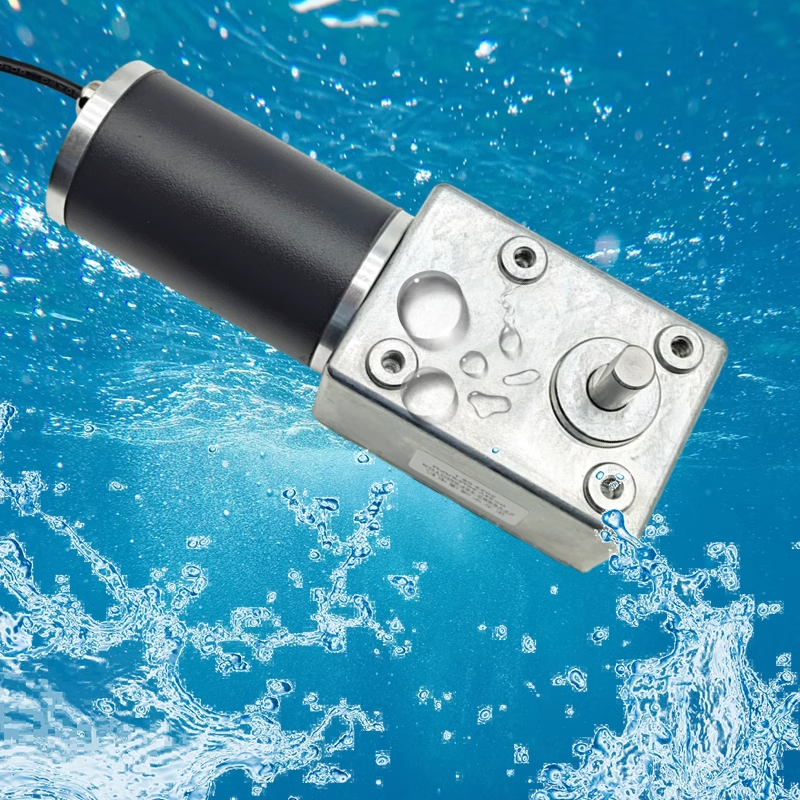

5882-45ZY Dustproof IP68 Waterproof Motor Turbine Worm Full Metal Gear DC Reducer Underwater Motor

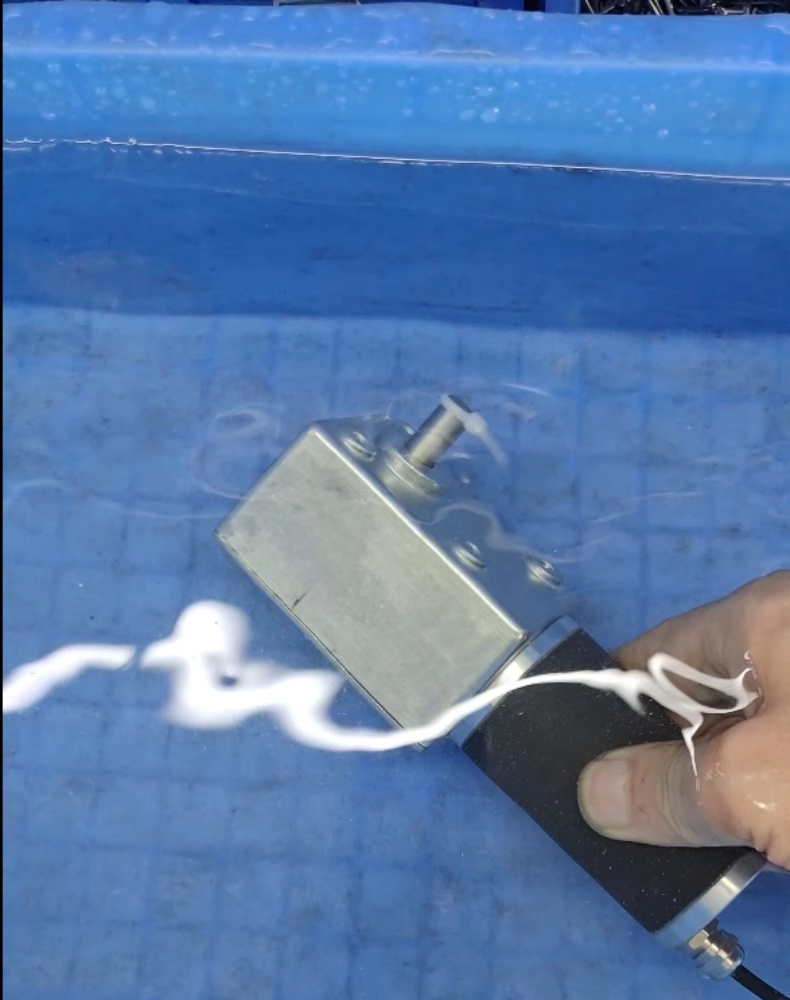

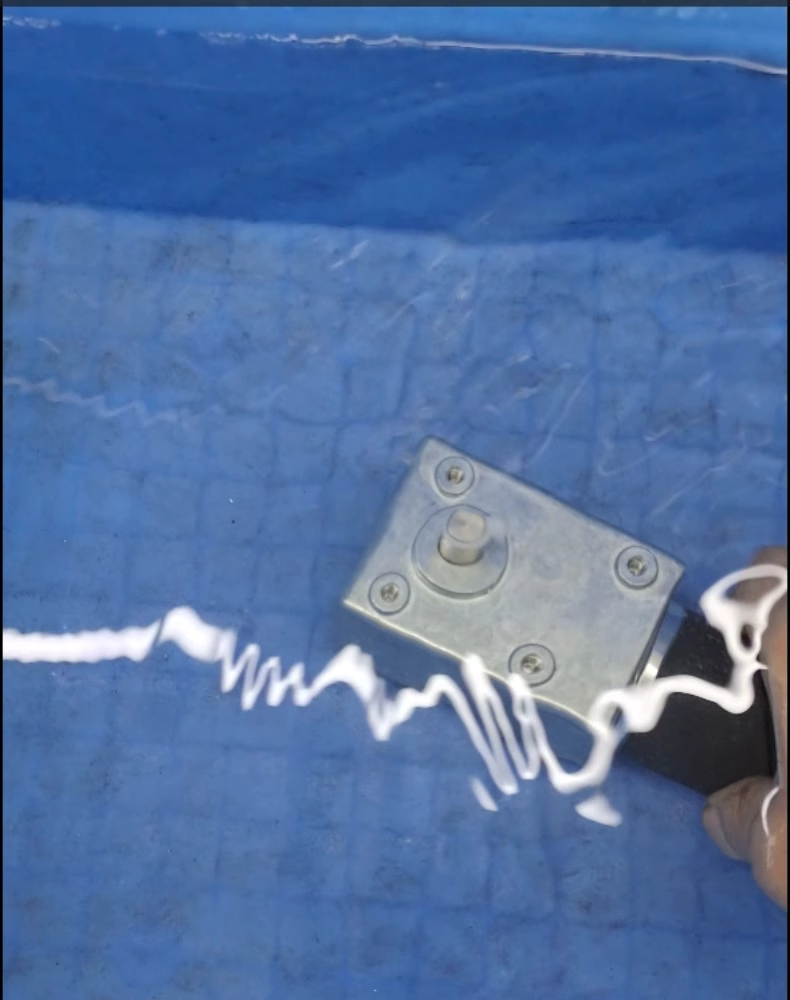

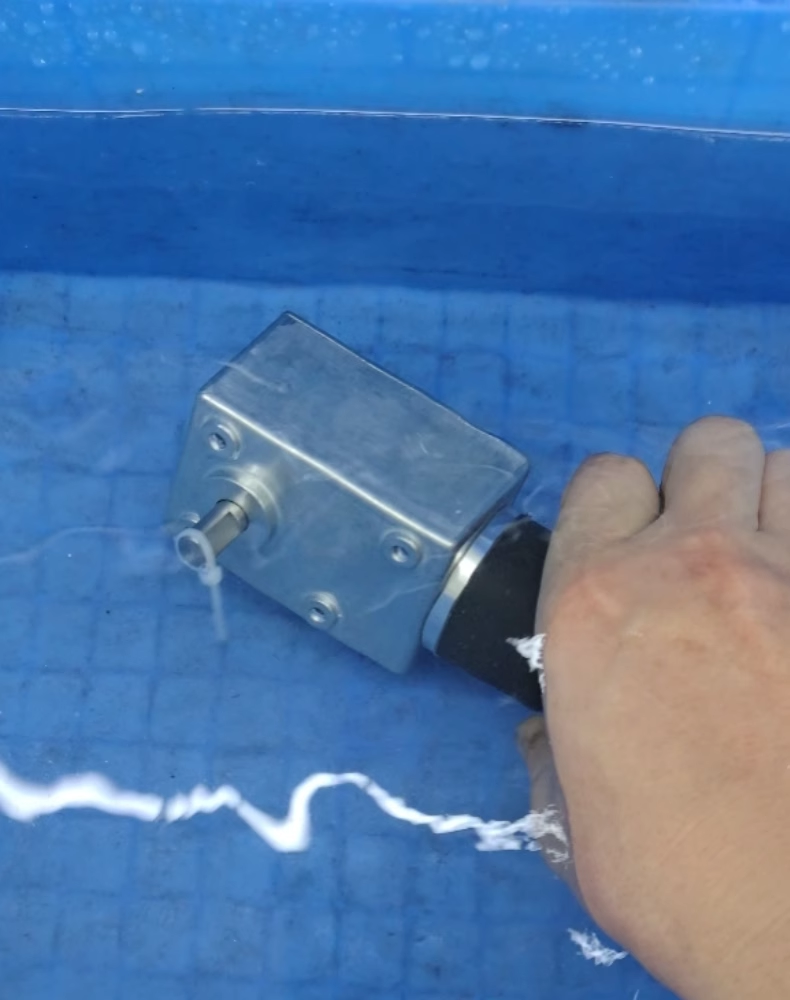

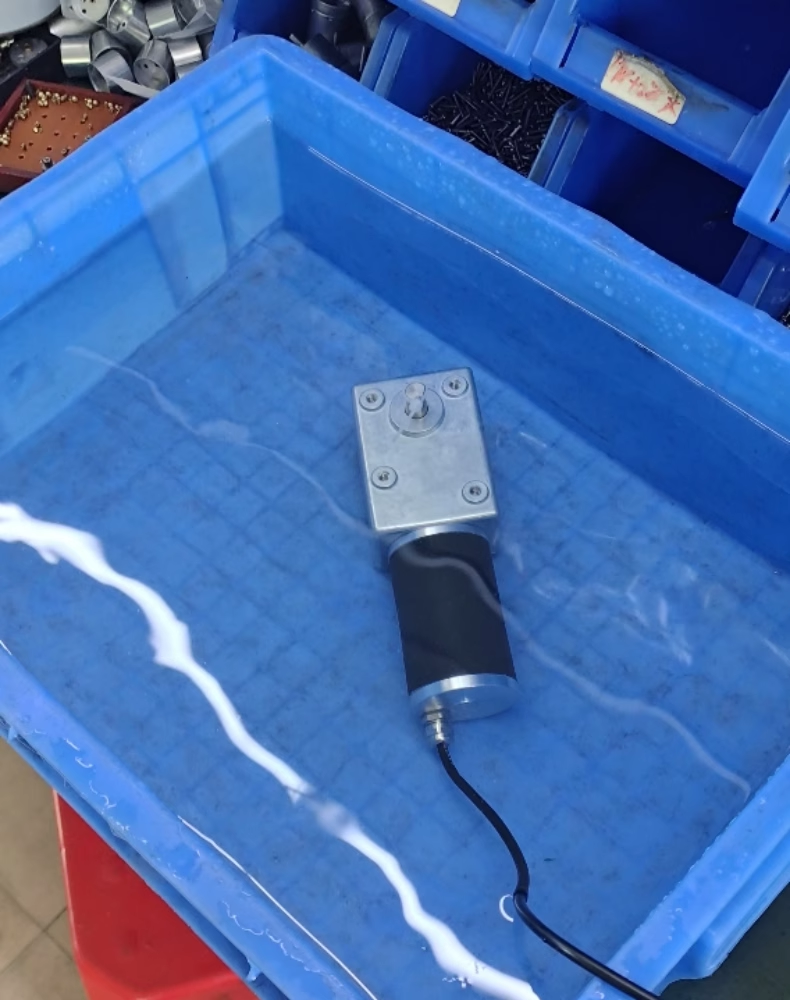

Underwater working motor

Can be rotated forward and reverse

Reduction motor

Speed adjustment

Waterproof grade: IP68

With mechanical self-locking function

Waterproof, dustproof, corrosion-resistant, splash-proof

#motors #machine #chinamotor #ip68 #waterproof #gearmotor #dcmotor #underwater

Voltage:

12V

24V

DC reduction motor

Low noise, high torque, long battery life, forward and reverse rotation, adjustable speed

Speed:

7 revolutions per minute

16 revolutions per minute

30 rpm

45 rpm

80 rpm

160 rpm

265 rpm

530 rpm

For other speeds please contact customer

combo:

Motor + speed regulator

Single motor

Motor + bracket

Motor + Power Supply

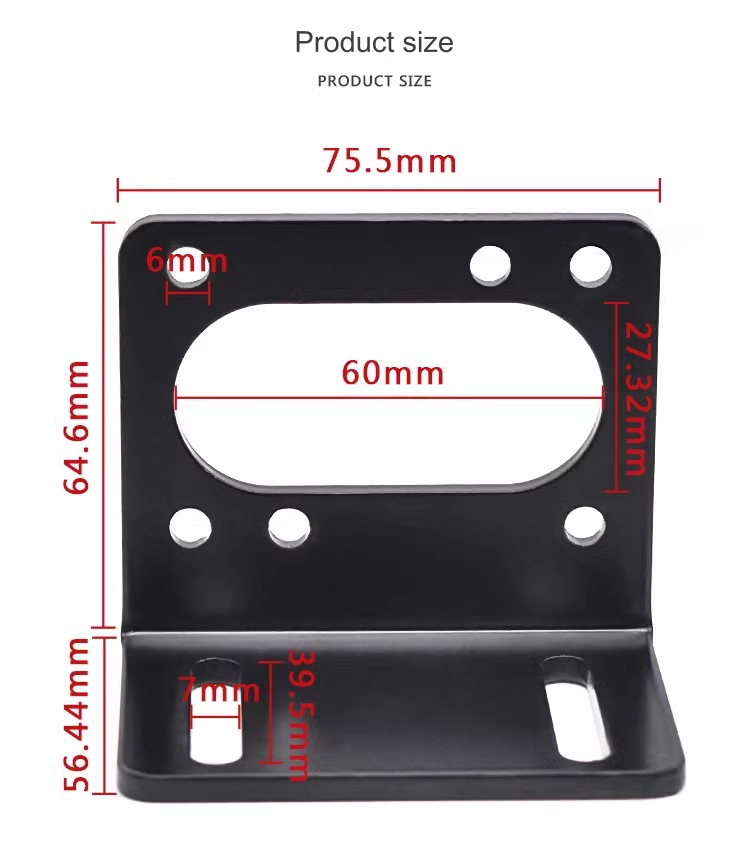

Motor bracket

Full set

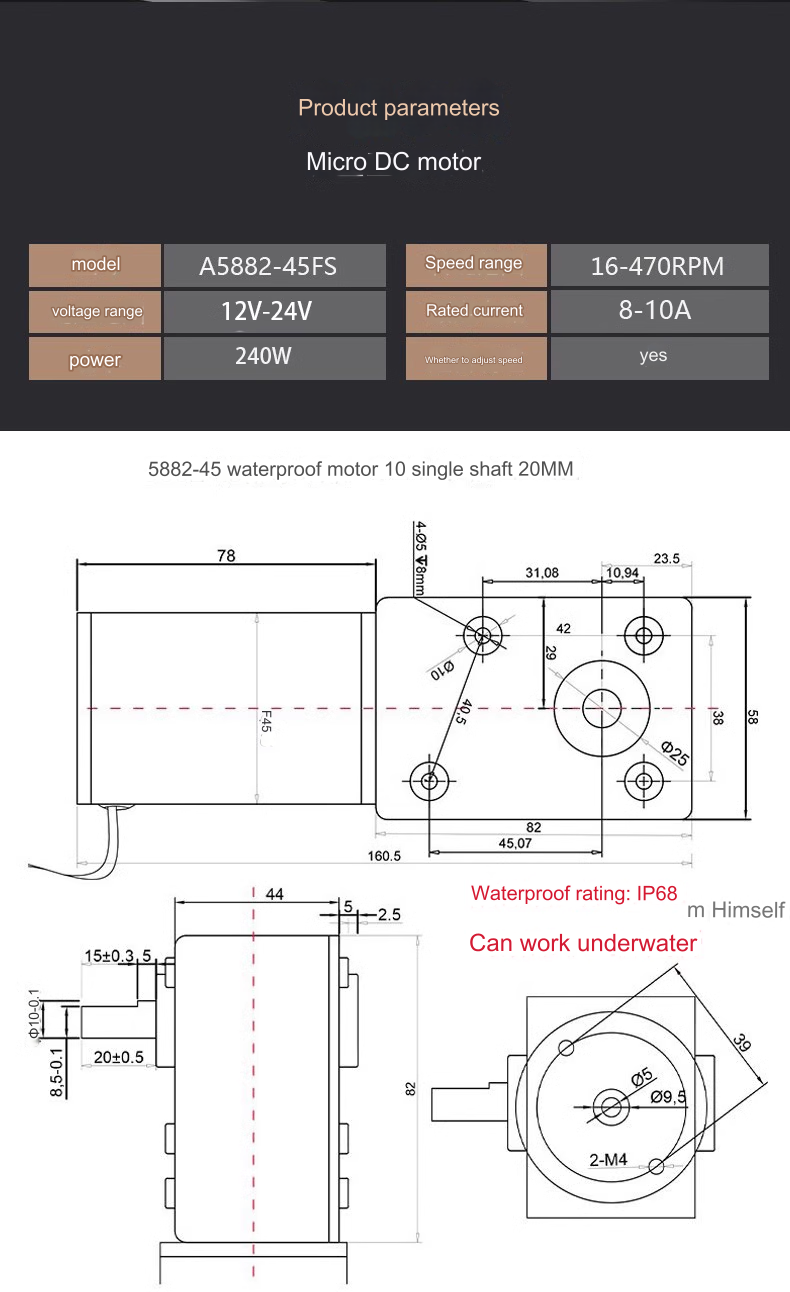

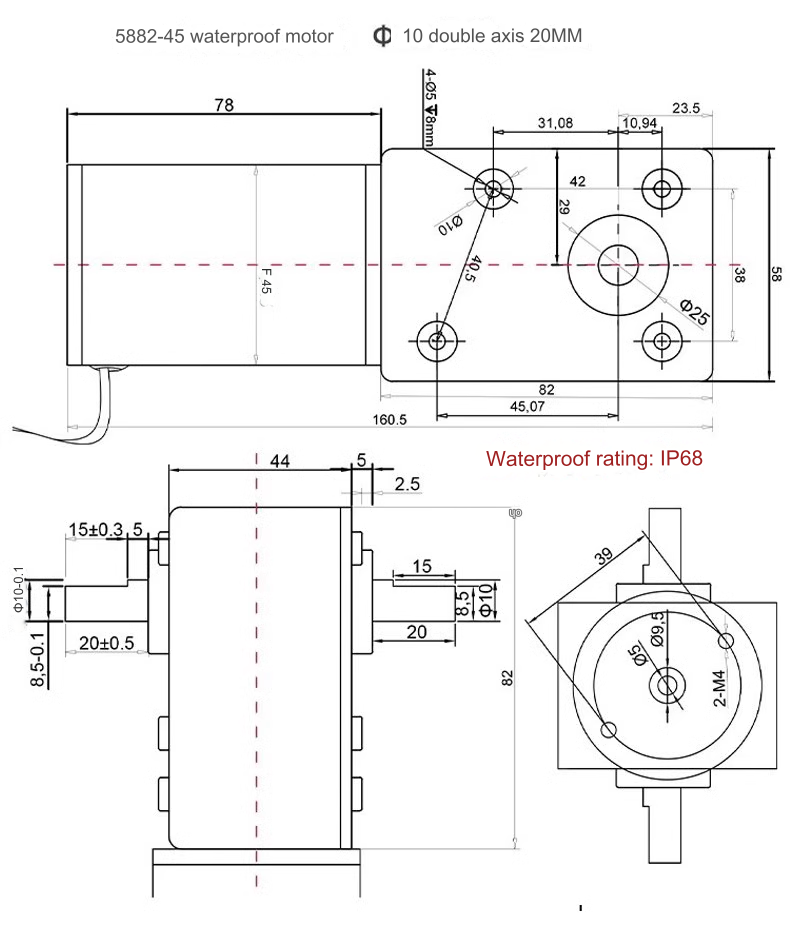

Parameter information

brand

model

5882-45ZY

Origin

Chinese mainland

Power supply mode

Direct current

Voltage

24V

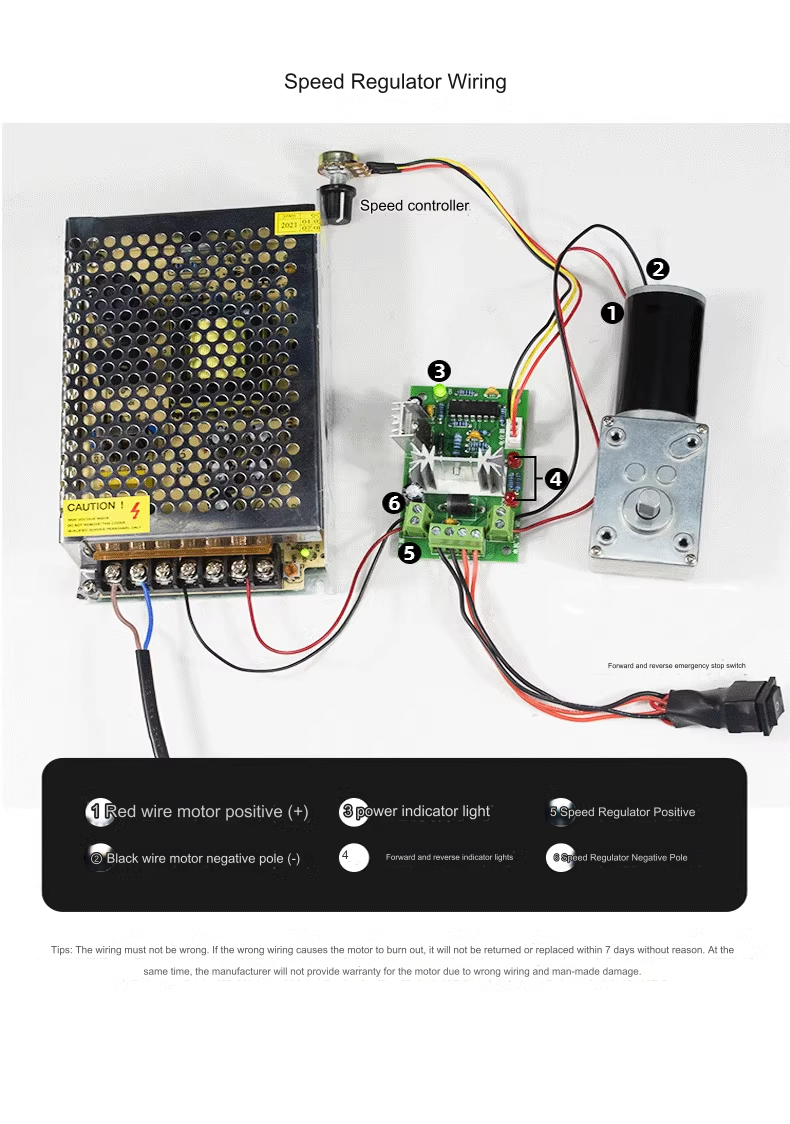

Wiring method of speed regulator

Warm reminder: The wiring must not be wrong. If the wrong wiring causes the motor to burn out, it will not be returned or replaced within 7 days without reason.

At the same time, the manufacturer will not provide warranty for the motor if the wiring is wrong or the motor is damaged by human factors.

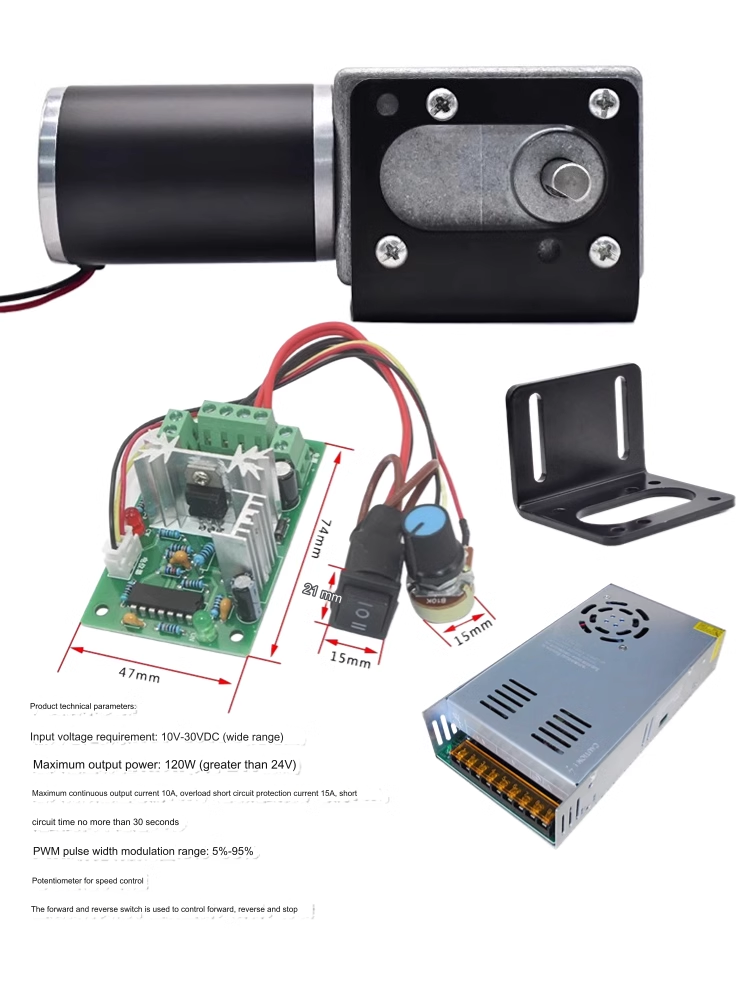

Product technical parameters:
Input voltage requirement: 10V-30VDC (wide range)
Maximum output power: 120W (greater than 24V)
Maximum continuous output current 10A,
Overload short circuit protection current 15A
Short circuit time does not exceed 30 seconds
PWM pulse width modulation range: 5%-95%
Potentiometer for speed regulation
Forward and reverse switches are used to control forward, reverse, and stop

Product details

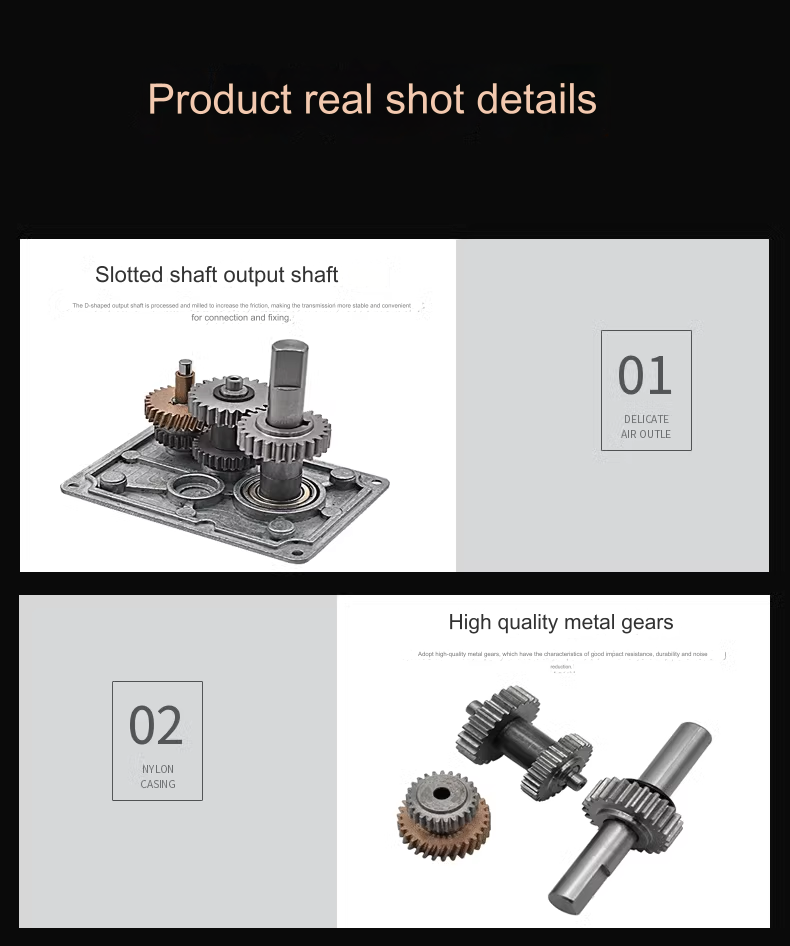

D-shaped shaft output car
The D-shaped output shaft is processed and milled to increase the friction, making the transmission smoother and easier to connect and fix

High-quality metal gears
Using high-quality metal gears, it has the characteristics of good impact resistance, durability and noise reduction

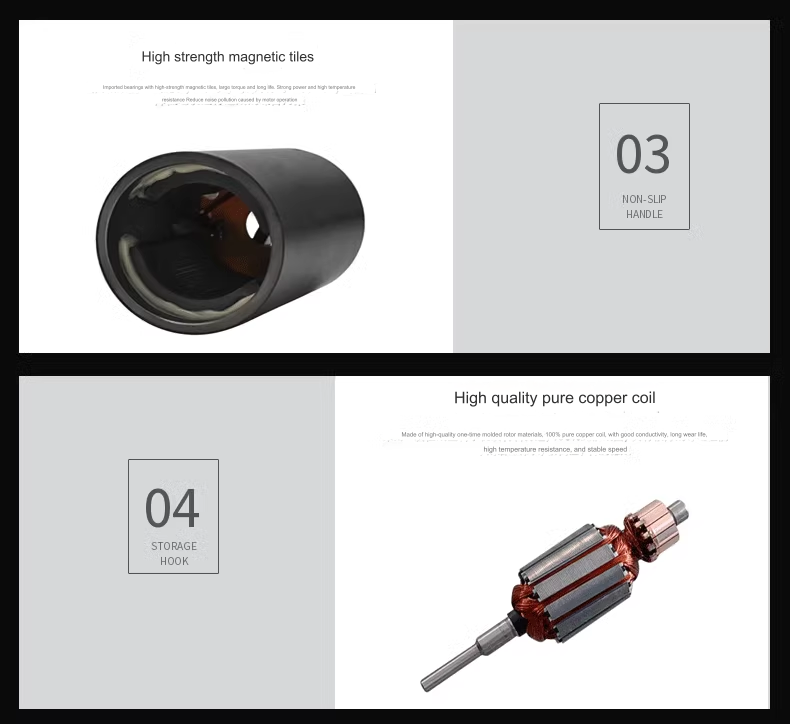

High-strength magnetic tile
Imported bearing high-strength magnetic tile, large torque, long life. Strong power, high temperature resistance, low noise pollution caused by motor operation

High-quality pure copper coil
Made of high-quality materials for one-time molded rotor, 100% pure copper coil, with good conductivity, long wear life, high temperature resistance, stable speed
