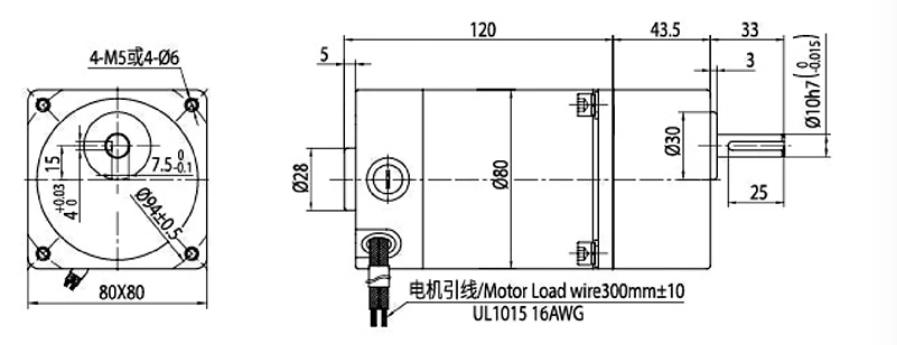

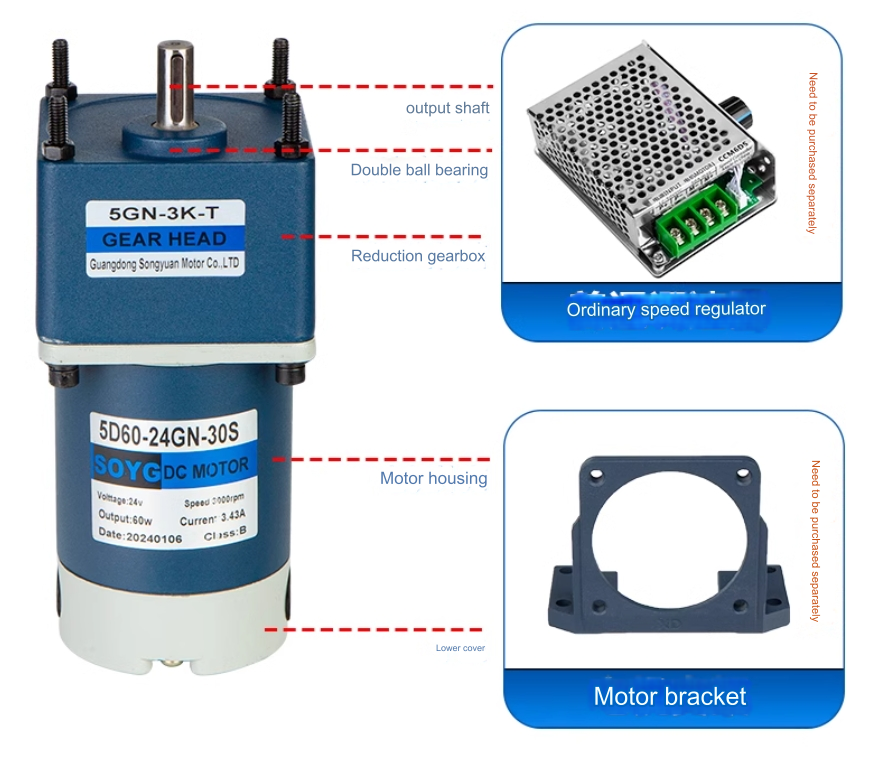

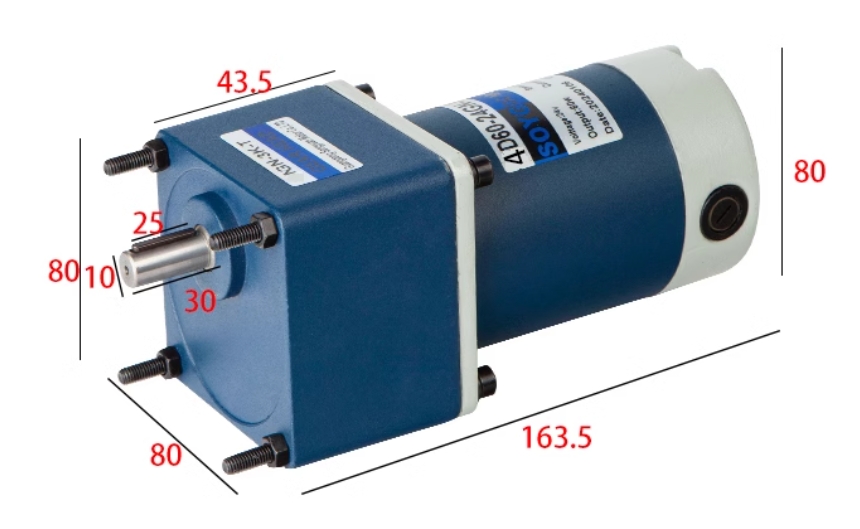

5D60-24GU-30S 12v24v DC reduction motor

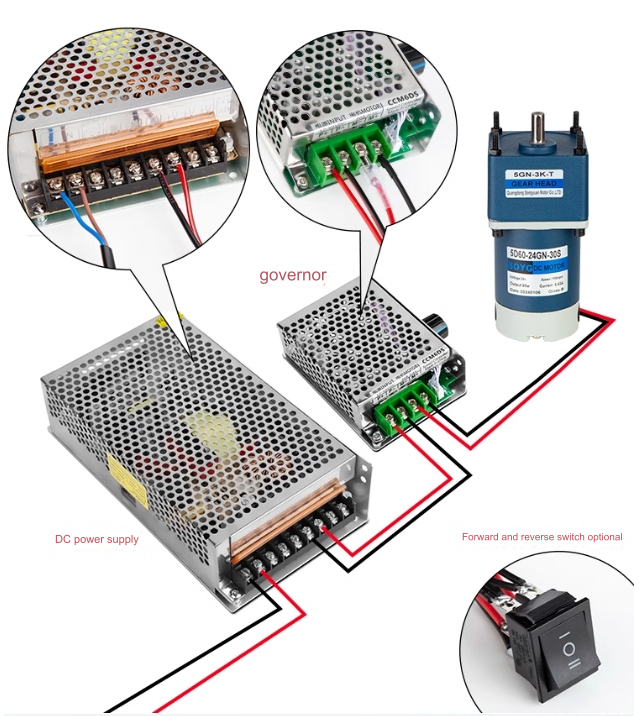

Motor wiring with speed controller

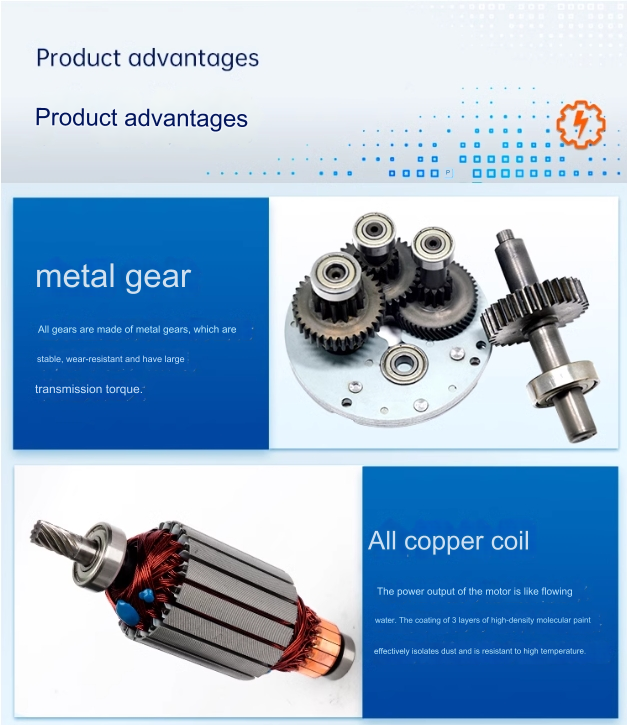

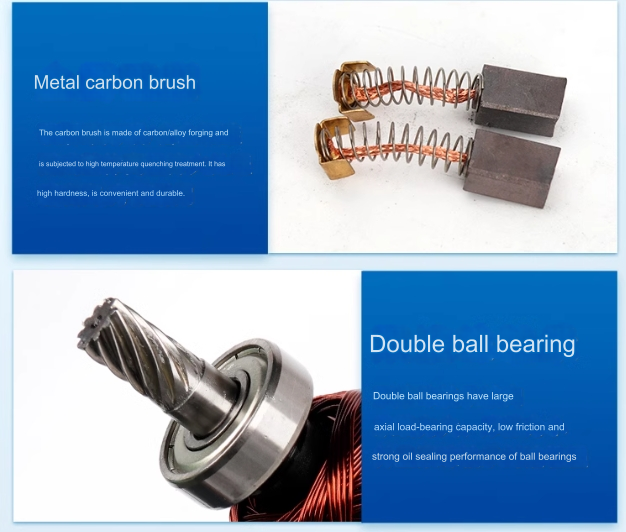

The advantages of our motors

The application scenario of the model 5D60-GN-S

About speed: Refer to the reduction ratio table below and select the speed that is close to your most commonly used speed. When the speed regulating motor is unloaded, the motor can be infinitely adjusted, and the speed can be slowed down from the maximum speed to 0. But when the motor is installed on the equipment and loaded, please pay special attention:

Working condition

1: The load is small and the motor does not work continuously for a long time, and the speed regulator shall not be adjusted below 50% of the full speed. Working condition

2: The load is large and the motor works continuously for a long time, and the speed regulator shall not be trained below 70% of the full speed. About power: According to the selected speed, torque, and shaft force, the power is determined, and the power is selected larger rather than smaller. Speed selection The final output speed of the reduction motor = motor speed: reduction ratio The slower the speed of the reduction motor is decelerated by the gear reducer without speed regulation, the greater the torque. The slower the speed is adjusted by the speed regulator, the more the torque will drop sharply.
