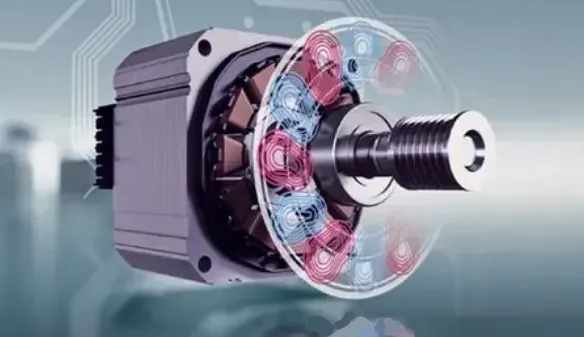

BLDC (Brushless DC Motor) and DD (Direct Drive Motor) are two different types of motors that differ in design, working principle, performance, and application areas.This article will introduce in detail the characteristics, advantages and disadvantages of these two motors and their applications in different fields. 1. BLDC motor ( brushless DC motor )1.1 Working Principle A BLDC motor is a motor that uses an electronic commutator instead of a traditional carbon brush commutator. It controls the motor's magnetic field through an electronic controller to achieve contactless commutation. The rotor of a BLDC motor usually uses permanent magnets , while the stator is composed of coils.1.2 Design Features Brushless: BLDC motors eliminate carbon brushes, reducing maintenance costs and wear. High efficiency: Due to contactless commutation, the motor has high efficiency. High reliability: Electronic commutator reduces the possibility of mechanical failure. Low noise: brushless design reduces noise. Good control performance: accurate speed and position control can be achieved through electronic controller.1.3 Application Areas BLDC motors are widely used in various fields, such as: Industrial automation: robots, conveyor belts, etc. Household appliances: fans, vacuum cleaners, washing machines, etc. Means of transportation: electric bicycles, electric scooters, etc. Aerospace: drones, satellites, etc.
2. DD motor (direct drive motor)2.1 Working Principle DD motor is a motor that directly connects the motor's rotor to the load. It eliminates the intermediate links such as gears and belts in the traditional transmission system and directly transmits the motor's rotational force to the load.2.2 Design Features No intermediate transmission: The motor's rotor is directly connected to the load, reducing transmission losses. High precision: Since there is no transmission link, DD motor can achieve high-precision position control. High rigidity: Direct drive structure improves the rigidity of the system. Easy maintenance: Due to its simple structure, the maintenance cost is low. High response speed: Direct drive structure improves the response speed of the system.2.3 Application Areas DD motors are mainly used in applications that require high precision, high rigidity, and high response speed, such as: CNC machine tools: used to achieve high-precision cutting processing.Semiconductor equipment : used to precisely control the position of wafers. Medical equipment: such as CT scanners, MRI and other high-precision medical equipment. Astronomical telescope: used to precisely control the pointing of the telescope. 3. Comparison between BLDC motor and DD motor3.1 Efficiency BLDC motors have higher efficiency due to contactless commutation, while DD motors have relatively higher efficiency due to no transmission loss. The two motors are similar in terms of efficiency.3.2 Maintenance Cost BLDC motors have lower maintenance costs because they do not have carbon brushes. DD motors also have lower maintenance costs because of their simple structure. The two motors are similar in terms of maintenance costs.3.3 Control performance BLDC motors can achieve precise speed and position control through electronic controllers. DD motors can achieve high-precision position control due to their direct drive structure. In terms of control performance, DD motors have advantages.3.4 Application Areas BLDC motors are widely used in industrial automation, household appliances, transportation and other fields. DD motors are mainly used in situations that require high precision, high rigidity, and high response speed, such as CNC machine tools, semiconductor equipment, etc. The two have different application fields. 4 Conclusion BLDC motors and DD motors have their own advantages and disadvantages, and they have their own advantages in different application fields. BLDC motors are widely used in industrial automation, household appliances and other fields due to their high efficiency, low noise, good control performance and other characteristics. DD motors have advantages in CNC machine tools, semiconductor equipment and other fields due to their high precision, high rigidity and high response speed.
