1. The external characteristic efficiency curve of PMSM is much higher than that of asynchronous motor in light load, which is the biggest advantage of PMSM in energy saving compared with asynchronous motor.Because the motor when the driving load,usually rarely situation is run at full power, this is because: on the one hand, users in the model selection of the motor, is generally based on the limit of load conditions to determine the motor power, and limit condition is a chance is very few, at the same time, to prevent motor burn out when abnormal condition, the user will also further to the motor power leave allowance;On the other hand, in order to ensure the reliability of the motor, the designer usually leaves a certain power margin on the basis of the power required by the user when designing the motor. As a result, more than 90% of the actual running motor works below 70% of the rated power, which leads to the motor usually working in the light load area.For the induction motor, its efficiency is very low in light load, and the PMSM in the light load area, still can maintain a high efficiency, its efficiency is more than 20% higher than the asynchronous motor.
2. The rotor structure of PMSM is diverse and flexible, and different rotor structures often bring their own performance characteristics, so rare earth PMSM can choose different rotor structure according to the use needs.Permanent magnet synchronous motor (PMSM) has a series of advantages such as small size, light weight, high efficiency and energy saving in a certain power range

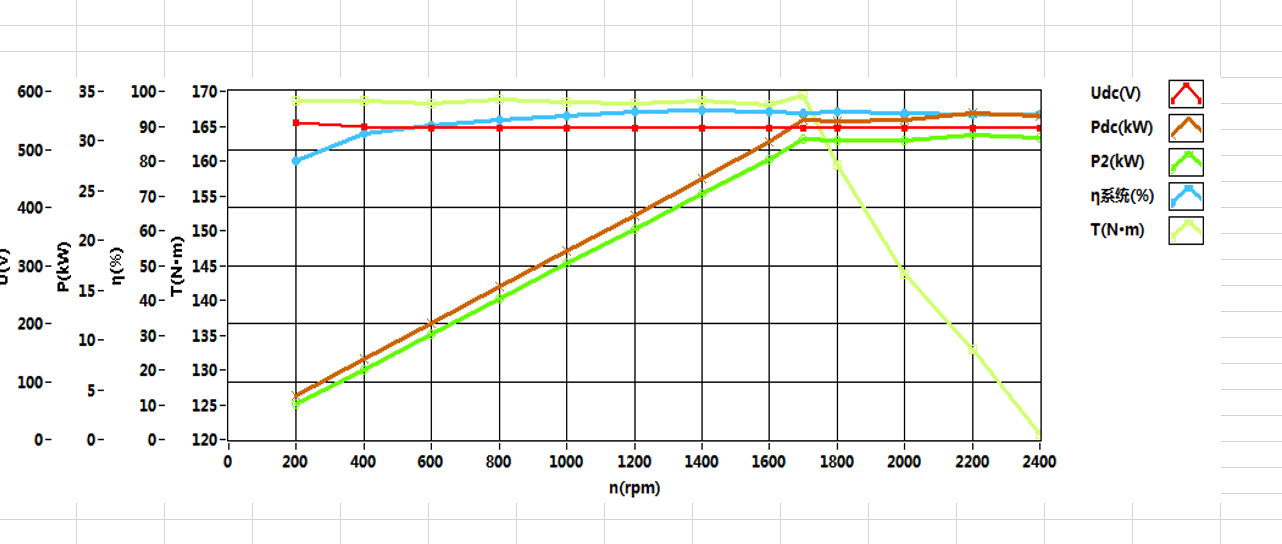

Rated electric characteristic curve
Rated electric characteristic curve

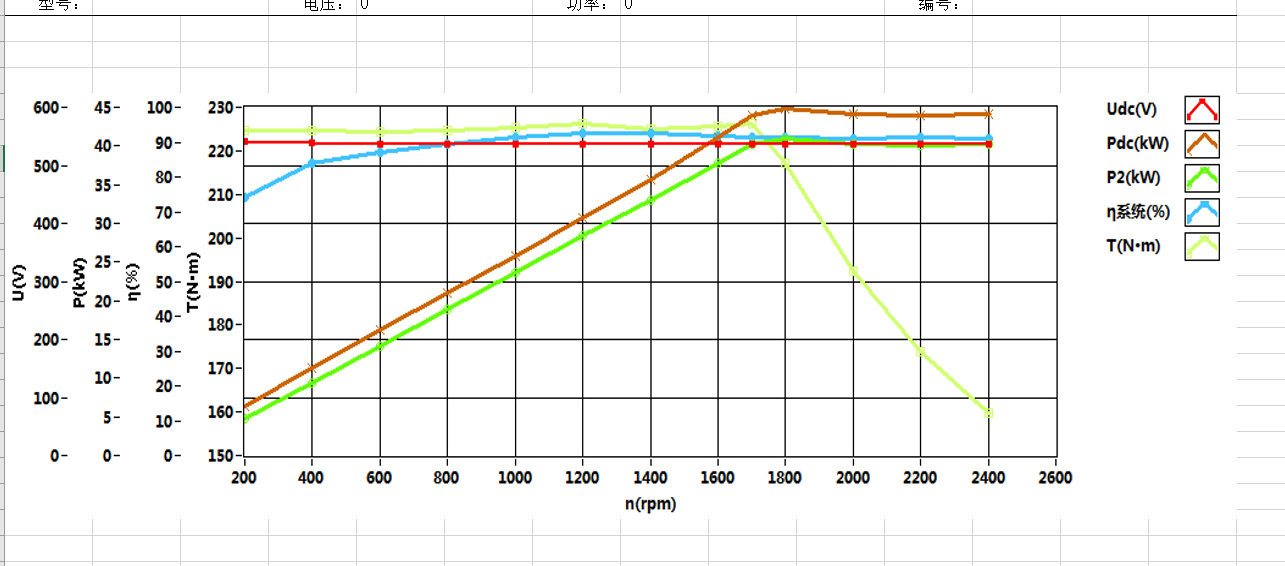

Peak electric characteristic curve
Peak electric characteristic curve
Electric state driving motor system efficiency MAP
Electric state driving motor system efficiency MAP
Application
Company Introduction
Shandong Hugh's power technology co., LTD., located in zibo high-tech industrial development zone, the company was founded in early 2000, is the earliest professional production of one of the new energy automotive electrical appliances enterprise, is a collection of research, development, production and sales of electric vehicle drive system, control system, auto intelligent control, charging products of high-tech enterprises.The company has signed long-term research and development strategic cooperation agreements with the electrical engineering institute of Chinese academy of sciences, tsinghua university, xi 'an university of science and technology, shandong university of science and technology, shandong university and other research institutions.It has a technical team and a research and development team led by the doctor. It has independent laboratories and detection lines. The products independently developed for many years have reached dozens of series and thousands of varieties.
Adhering to the quality policy of "people-oriented, scientific and technological innovation, continuous improvement and pursuit of excellence", the company has successively obtained and passed ISO9001 quality management system certification, French BV certification, CE certification and TS16949 certification .
Rated electric characteristic curve
Peak electric characteristic curve
Peak electric characteristic curve
Electric state driving motor system efficiency MAP
Electric state driving motor system efficiency MAP
