The structure of the electric forklift motor is simpler than that of the internal combustion forklift.

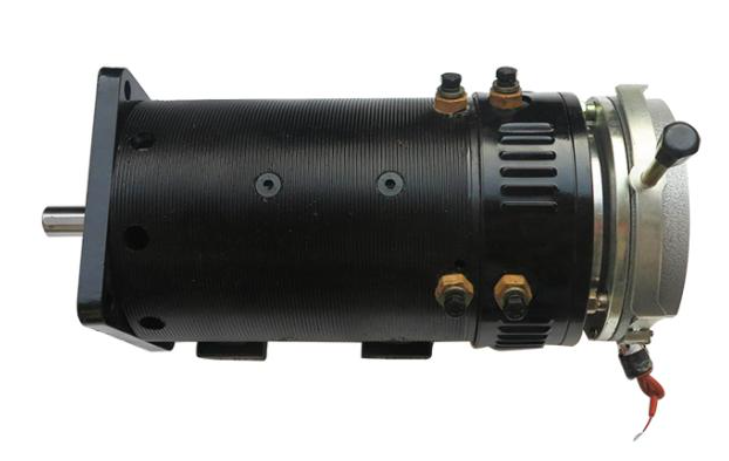

The picture shows the 1DC type 1t straight fork counterbalanced electric forklift motor.

The basic structure of the electric forklift motor consists of the following parts:
1. Power unit: battery pack. Standard battery voltages are 24, 30, 48, 72V.
2. Frame: It is the frame of the forklift, which is welded by steel plate and section steel. Almost all parts of the forklift are mounted on the frame. It is subjected to various loads during operation, so it should have sufficient strength and rigidity.
3. Transmission: transmit the power of the motor to the driving wheel of the forklift.
4. Steering system: control the driving direction of the forklift.
5. Braking system: to slow down and stop the forklift.
6. Motor and electrical system: The electrical system controls the motor through various components to achieve the start, stop, commutation and speed regulation of the forklift, and to control the oil pump motor or hydraulic pressure.

Product real shot display
