SRM 40-10000 Rpm For Kitchen Appliances Cooking Machine

date:2021-09-23

  • Product Details

Short Description:


Technical features of SRM-CL/GD/JD series motors:

    It has the characteristics of wide-width direct drive, high efficiency, high-speed operation, low noise, long continuous operation time, frequent forward and reverse rotation and long life. Taking SRM-CL as an example, this product has a wide range of direct drive, excellent output characteristics, high speed, high precision, high technical content and complex process.

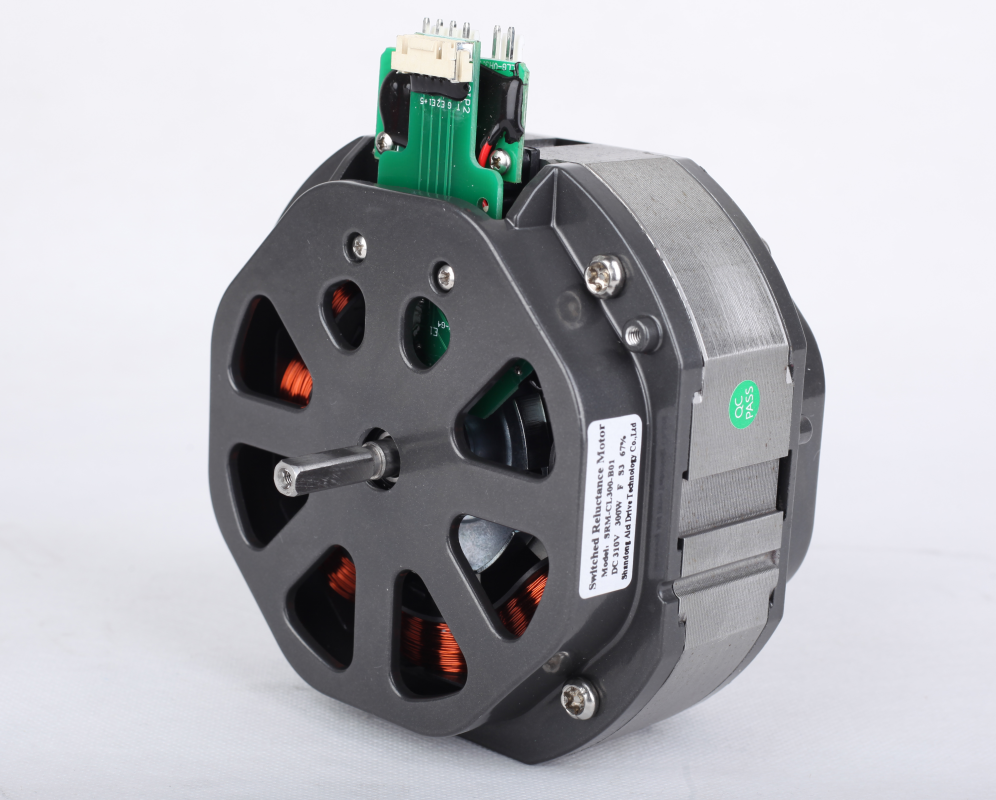

High-precision switched reluctance motor for multi-function cooking machines with production capacity 15,000 sets per month



Basic parameters Basic parameters

Numerical value

low speed Min Speed

35rpm

high speed Max speed

10500rpm

Torque range Torque range

2.5-3.0nm(min rpm)- 0.2nm(max rpm)

High Power Max power

550W

high speed noise Noise at Max speed

≤ 78db

Motor steering Rotation direction Instantaneous forward  and  reverse  in a very short time.
Insulation protection class Insulation protection grade of Motor

H

Operating ambient temperature Safe operating ambient temperature of Motor

-10 ℃ - 85 ℃

Motor operating temperature Safe Operation Temperature of Motor

≤ 120 ℃

Motor wire temperature is high Max winding temperature

180 ℃

Controller input voltage PCBA input voltage

120v or 240v nominal AC

Heating function Heating

1. Motor size specification size

Note: The height direction can be from 78mm to 74m; the motor shaft form and can be adjusted according to customer requirements.

2. Basic description of PCAB control system

Type A. Outline Dimensions:

The specific shape and size need to be determined according to customer design requirements and negotiation.

1) The controller consists of mos power devices, heat sinks, control, drive, capacitors and other parts, and may include switching power supply parts (this part is sometimes in other parts of the cooking machine). Including brake protection, overheating protection and other key protections.

2). Overview of performance and standards

CE Electromagnetic Compatibility Forward and reverse rotation at any speed within 1-1.5 seconds Scientific stall algorithm Brake anti-shake algorithm
Dual 85 degree standard Mute technology, interference processing technology High reliability, high consistency, long life National standards

Two: normal version
A mid-range specification that can be sold at a lower price.

1. The basic performance is as follows:

Basic parameters Basic parameters

numerical value



low speed Min Speed

40+ rpm

high speed Max speed

10500rpm

Torque range Torque range

2nm(min rpm)- 0.1nm(max rpm)

High Power Max power

450W

high speed noise Noise at Max speed

≤ 83db

Motor steering Rotation direction Instantaneous forward  and  reverse  in a very short time.
Insulation protection class Insulation protection grade of Motor

H

Operating ambient temperature Safe operating ambient temperature of Motor

-10 ℃ - 85 ℃

Motor operating temperature Safe Operation Temperature of Motor

≤ 120 ℃

Motor wire temperature is high Max winding temperature

180 ℃

Controller input voltage PCBA input voltage

120v or 240v nominal AC

heating Yes/no

Yes

2. Basic description of PCAB control system

Outline basic size:

Specific shape and size, discussed and decided

The controller consists of mos power devices, heat sinks, control, drive, capacitors and other parts, and can optionally include or not include switching power supply parts. Including brake protection, overheating protection and other key protections specified by customers. No heating/heating is optional.

B: SRD products for other home appliances of Ai Magnetic Technology

AICI has strong SRD technology and R&D capabilities, which can meet your product needs in a short period of time.

use speed rpm noise  development cycle Technology and Products
High-speed wall breaker No load 45000 ; load 30000  Meet the national standard   90 days Complete technology, product finalization
hand dryer 45000-50000 Meet the national standard    45 days Complete technology, product finalization
 washing machine  Any desired speed (including direct drive and high speed)  Meet the national standard    90 days Complete technology
 fan (fan),


Air-conditioning compressor

Any desired speed (including direct drive and high speed)  Meet the national standard 90 days Complete technology, some products are finalized
 garbage shredder Direct drive in any required speed range  Meet the national standard 90 days Complete technology
Vacuum cleaner, hair dryer   100,000 rpm +  Meet the national standard  450 days  technology

Xinda Electric Technology Co., Ltd. manufacture switched reluctance motor, and it is also a company that can provide closed reluctance motors and controllers with independent intellectual property rights for household appliances in batches. Welcome to cooperate!

Product introduction:

After years of continuous technical research, Xinda has completely mastered the core technology of switched reluctance motors for household appliances, and has formed a series of products with completely independent intellectual property rights. The company's products have been widely used in household appliances, such as washing machines, blenders, high-speed wall breakers, vacuum cleaners, hand dryers, air compressors, etc., and have achieved batch exports to Europe and the United States and other countries.

Technical features of SRM-CL/GD/JD series motors:

It has the characteristics of wide-width direct drive, high efficiency, high-speed operation, low noise, long continuous operation time, frequent forward and reverse rotation and long life. Taking SRM-CL as an example, this product has a wide range of direct drive, excellent output characteristics, high speed, high precision, high technical content and complex process.

Comprehensive parameters of SRM-CL/GD/JD series motors:

Basic performance parameters

Voltage specification Direct drive range high speed capability noise control
110V


220V

30-11000rpm


70-25000rpm

100000rpm Quietness ≤ 79db


Ordinary type ≤ 84db





High-speed, direct-drive switched reluctance motors for multifunctional food machines

Xinda is the first company in China that can develop, produce, and sell such motors in large quantities.

The 45,000-rpm high-speed switched reluctance motor developed by Xinda Technology can work for a long time with a load of 30,000 rpm. It is a high-speed motor that can break walls.
