Forklift AC Controller 6234/6234F Product Description

AC asynchronous motor controller developed for forklifts. It applies advanced vector control algorithms and MOSFET drive technology, uses CAN bus or wireless Bluetooth communication, and can program and monitor the controller through a computer; this machine has an automatic motor matching function, which can make the motor run more efficiently; it has multiple protection functions such as short circuit, overload, overtemperature, high and low voltage, etc.

Designed according to EN1175, EN13849 and UL583 specifications, it adopts vector control and MOSFET technology, and the controller can be programmed, parameters changed and data monitored through a computer.

Features

• Square shape, easy to install and layout;
• Adopting professional asynchronous motors with mainstream DSP as digital drive control system, a good platform for motor control algorithm is built;
• International brand high-power MOSFET tubes are selected as power devices to achieve efficient energy conversion;
• Apply high-current busbar technology, low heat generation, and support long-term high-current stalling;
• Dual CPU interlocking safety technology, micro-motion technology and steep slope slow descent parking technology;
• Protection grade IP65, can operate in an environment of -40℃ to +55℃;
• Support short circuit protection (phase-ground-phase-phase-source), overload, over-temperature and over-voltage protection;
• Dynamic low-speed feedback electric brake technology improves vehicle mileage;
• CAN bus technology reduces wiring and enables controller parameter adjustment and online programming;
• Multiple safety CAN interface protections and lithium battery BMS for safety authentication management;
• Adopt compact design to make it smaller and lighter;
• Adaptive function simplifies installation and debugging steps.
• Parameters or software can be customized according to customer needs.

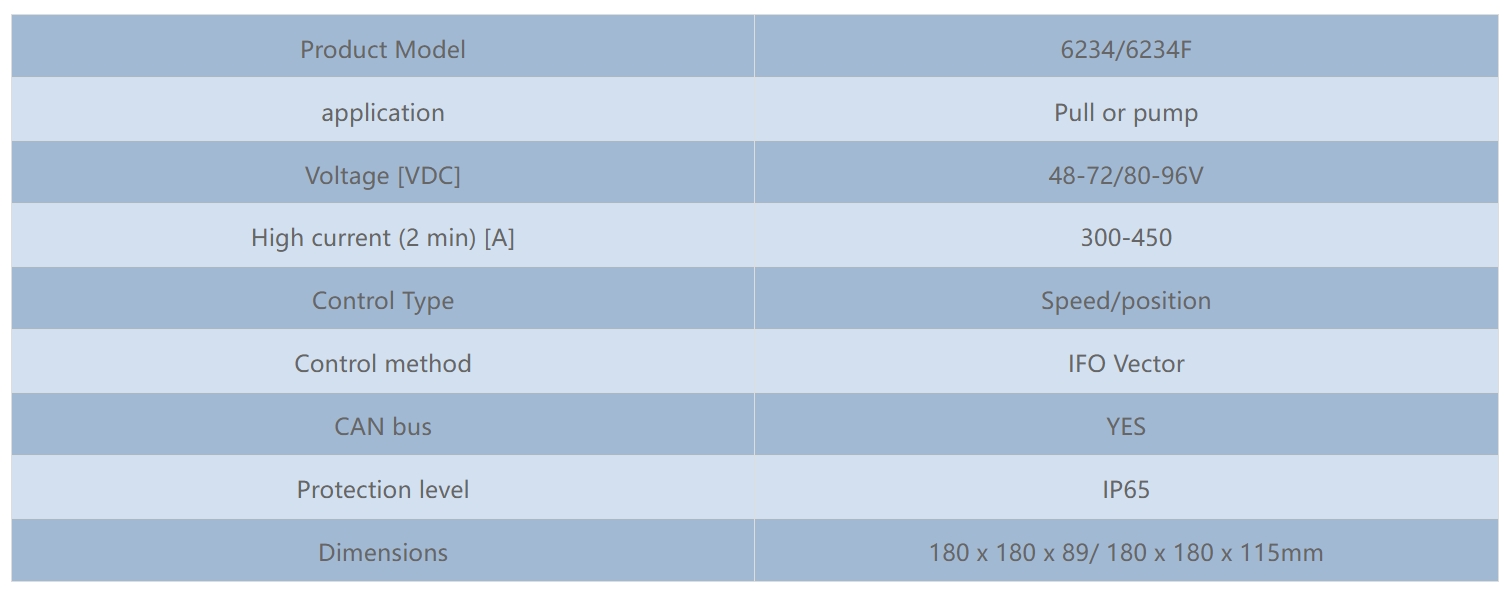

Product Parameters

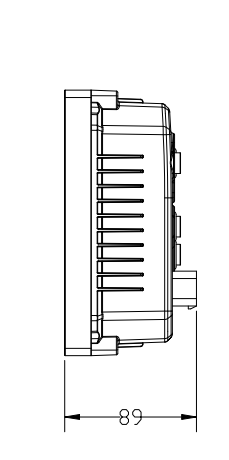

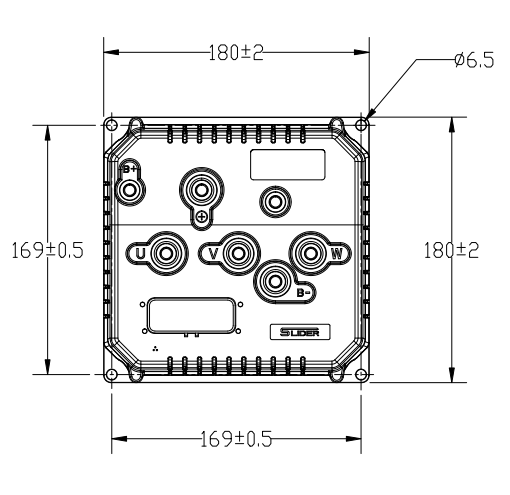

Dimensions

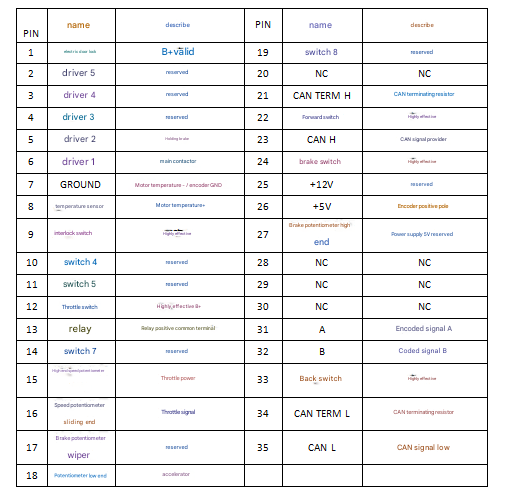

Motor Controller Interface Definition
