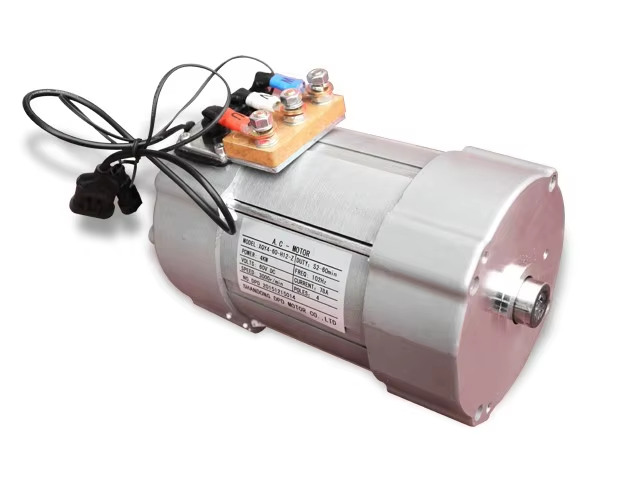

3KW AC MOTOR for SIGHTSEEING BUS,GOLF CART,ELECTRIC TRUCK-Xinda Motor- electric motors and EV accessories supplier|INDEX--

Product Details

Key attributes

Industry-specific attributes

AC Voltage

60V

Other attributes

Warranty

3months-1year

Place of Origin

Shandong, China

Brand Name

Depuda

Model Number

XQY3-60-H12

Type

Asynchronous Motor

Phase

Three-phase

Protect Feature

Drip-proof

Efficiency

Ie 3

rated power

3KW

Peak power

7.5KW

Rated voltage

60V

Rated torque (N.m)

9.5

Rated speed

3000r/min

Peak speed

6000r/min

Working system

S2:60

Insulation class

Protection level

IP56

Packaging and delivery

Packaging Details

Carton or wooden case

Port

Qingdao or as required

Supply Ability

40000 Set/Sets per Month

Products Description

rated power	3KW
Peak power	7.5KW
Rated voltage	60V
Rated torque (N.m)	9.5
Rated speed	3000r/min
Peak speed	6000r/min
Working system	S2:60
Insulation class	H
Protection level	IP56
Main scope of application	Low-speed electric passenger vehicles, logistics vehicles SIGHTSEEING BUS MOTOR、GOLF CART MOTOR、ELECTRIC TRUCK MOTOR

1. Smooth and reliable. Joined with transaxle of vehicles with involute spline shaft,provide reliable and safe guarantee for vehicle. 2. Climbing ability. High starting torque, greater speed range and higher top speed, higher overload capability, which will supply big power for electric car and meet the climbing needs. 3.Long driving range of a single charge. Higher motor efficiency,provide the effectiveness 4. Durable in use,easy maintenance
