Model number:ZC6.3B-72c01

Rated power: 6.3KW

Rated voltage:72V

Rated current:109A

Rated speed: 1500rpm

Excitation mode: series excitation

Insulation grade:Ｈ

Environment temperature: -25-40 C

Running time: S2-60min

skills requirement

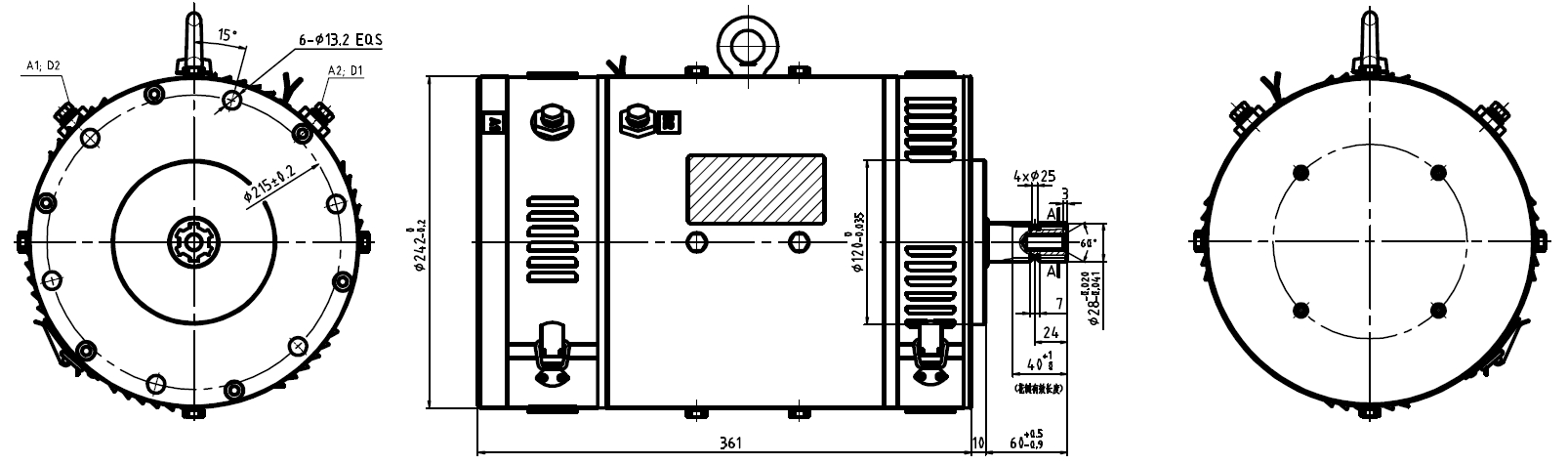

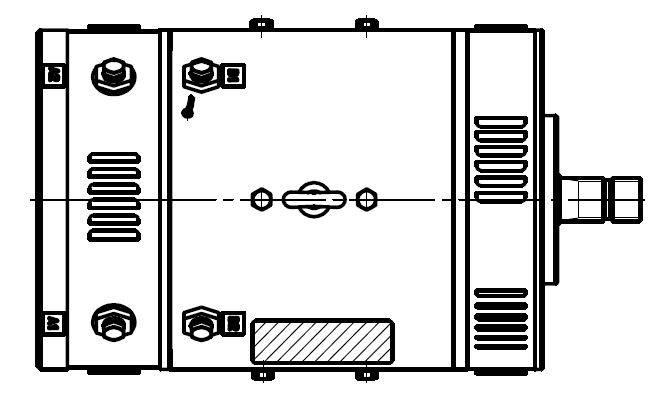

1. The nameplate and terminal label should be affixed according to the position shown in the figure. If the customer has special requirements for the affixing position of the nameplate, it needs to be affixed according to the customer's requirements. 2. If the dimensional tolerance is not noted, please follow GB/T1804-m.
3 Spline surface hardness: 4550HRC
4. Apply anti-rust oil (coating) on the upper opening and stop end of the shaft head end cover.
5. The lead length of the thermal protector and the connector model shall be based on the sales contract review/planning order requirements.

6. When the customer tightens the cable, the tightening torque of the wiring screw must be strictly controlled. See Figure B for details.

7. The rated speed of the motor is 1500RPM, and 1400RPM is printed on the nameplate at the customer's request.
