STZ120HF1.560N14-BC 1.5KW60VDC PMSM Motor for electric tricycle

date:2023-10-27

  • Product Details

Motor parameter


Motor Type: PMSM

Model number: STZ120HF1.560N14-BC

Rated power: 1.5KW

Rated voltage: 60VDC

Rated current:30A

Rated speed: 3000rpm

Insulation grade: H

Cooling method: IC411

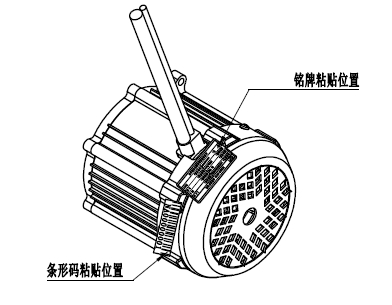

Motor Drawing


Technology requirement


1. The appearance of the motor is clean and there are no oil stains;
2. Turn it gently by hand, the motor should run smoothly without any jamming;
3. After assembly, apply anti-rust oil 202-1 on the shaft extension end;
4. Viewed from the shaft extension direction, the forward rotation direction of the motor is counterclockwise;
5. The rated voltage of the motor is 60V, the rated current is 30A, the rated power is 1.5KW, the rated speed is 3000r/min, the cooling method is natural cooling, the rated torque is 4.775N.m, and the maximum torque is 42N.m;
6. The motor protection level should comply with the relevant regulations in GB/T4942.1, and its protection level should not be less than IP54;
7. The limit deviation of the motor output shaft without tolerance dimensions shall be implemented in accordance with GB/T1804-m;
8. The limit deviation of the uninjected shape tolerance of the motor output shaft shall be implemented in accordance with GB/T1804-k;
9. The exposed part at the root of the signal line connector should be controlled within 30mm, or it should be bundled with black heat shrink tube or black insulating tape to a distance of 30mm from the incoming line of the connector;
10. The torque of the M6 fixing bolts at the motor end is 7±1N.m;
11. The Hall connector is made of Hebi Tianhai (THB).



TZ120HF1.560 series motor for electric tricycles
Technical Specification


Product name: STZ120HF1.560N14-BC
Manufacturer: Shandong Xinda Motor Co., Ltd.
Issue:2022/11/29
Compile No.: DPD-JSW-202211001

Scope of application


1.  This product technical specification applies to model TZ120HF1.560 series permanent magnet synchronous motor.


2.  Normative reference documents
2.1. GB/T 18488.1-2015 Motors and controllers for electric vehicles Part 1: Technical conditions

2.2. GB/T 184882-2015 Motors and controllers for electric vehicles Part 2: Test methods

2.3. GB/T29307 Drives for electric vehicles Motor system reliability test method

2.4. Meets the "Automotive Hazardous Substances and Recyclability Management Requirements" proposed by the Ministry of Industry and Information Technology of the People's Republic of China, and the use of hazardous substances and recyclability calculation methods for new products should comply with national standards respectively. Requirements of "GB/T 30512-2014 Requirements for Prohibited Substances in Automobiles" and "GB/T 19515-2015 Calculation Method for Reusability and Recyclability of Road Vehicles"


3. Conditions of Use
3.1 Applicable environment: temperature -40°C-55°C, humidity: 10%-90%

3.2 Storage environment: temperature -30°C-80°C, humidity: 6520%


4. Appearance and installation dimensions

    see attached


5. Packaging standards

5.1 The packaging of the product should ensure that the product does not have bumps, deformations or other abnormalities during normal transportation, and the product should be protected from rain. The detailed requirements are implemented in accordance with GB/T 9174 "General Technical Conditions for Transport Packaging of General Goods" 5.2 The product is in It does not affect the performance, appearance and aesthetics of parts, does not affect the assembly relationship, is convenient for production and query, and has a permanent mark to facilitate traceability by Party A and Party B.
5.3 The permanent marking of automobile parts shall be carried out in accordance with the requirements of the "Regulations on Permanent Marking of Parts and Parts"


6. The specification of the motor

Battery rated voltage (VDC): 60

Motor Rated voltage (VAC):42

Rated power (KW): 1.5

Peak Power (KW):3

Rated speed (rpm): 3000

Peak speed (rpm): 4500

Rated torque (N.m): 4.775

Peak torque (N.m): 42

Rated current (Arms): 30

Peak current (Arms): 210

Motor poles number: 5

Back electromotive force line voltage effective value: 13.6VAC@1000rpm

Working system: S2-60min

Max efficiency: 92%

Cooling method: air cooling

Insulation grade:H

Protection class: IP54

Built-in Hall: see attachment

Temperature sensor model: KTY84-150 temperature sensor product specification


KTY84-150 temperature sensor product specification sheet


1. 25°C resistance
603+38Q(Ta=25°C+0.05°C, PT50mW)

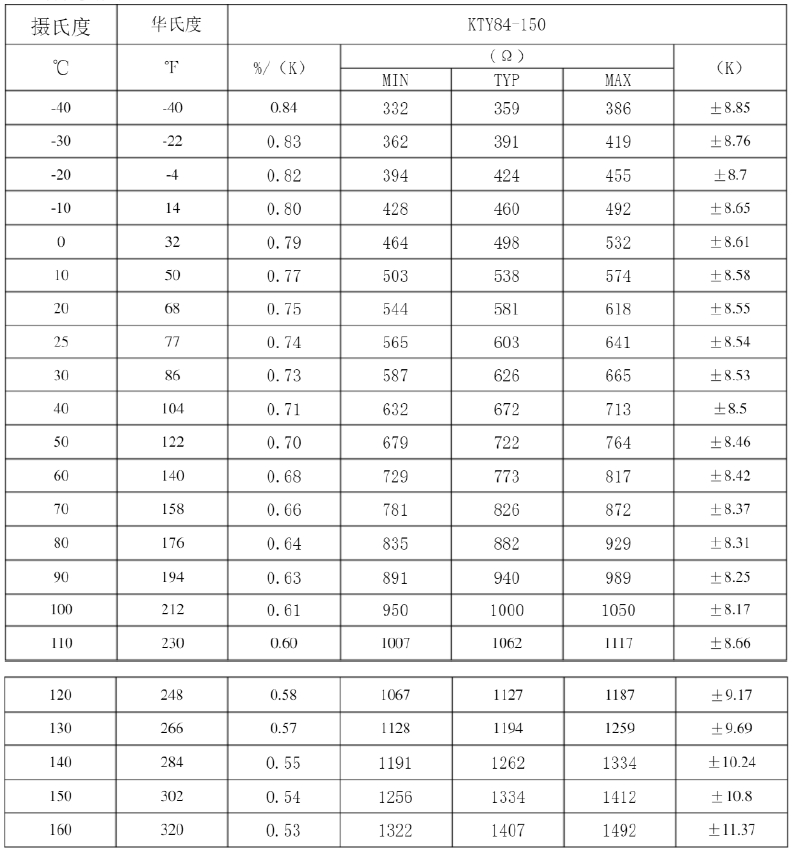

2. RT table

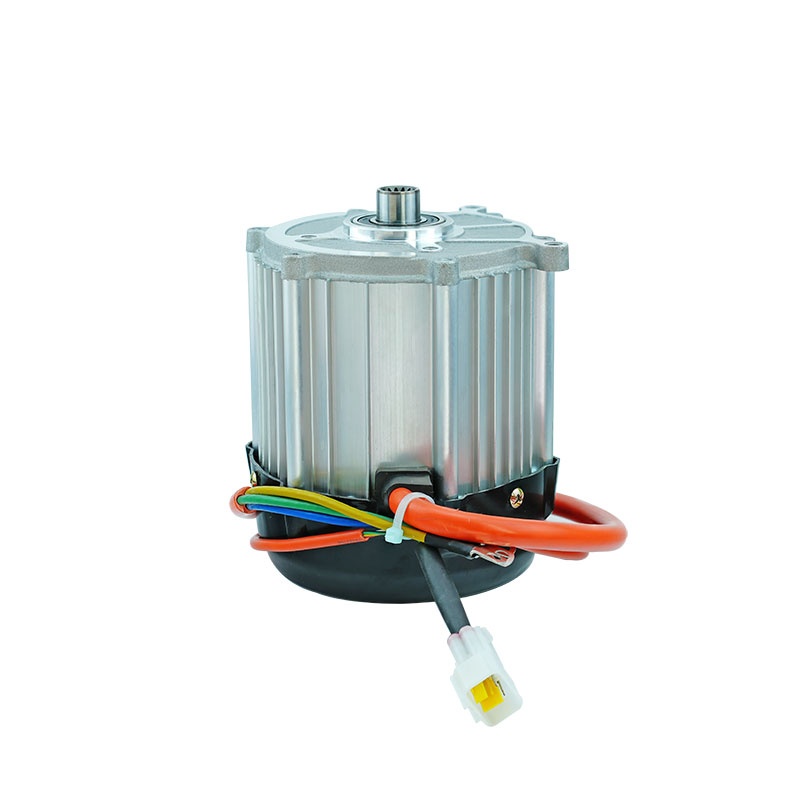

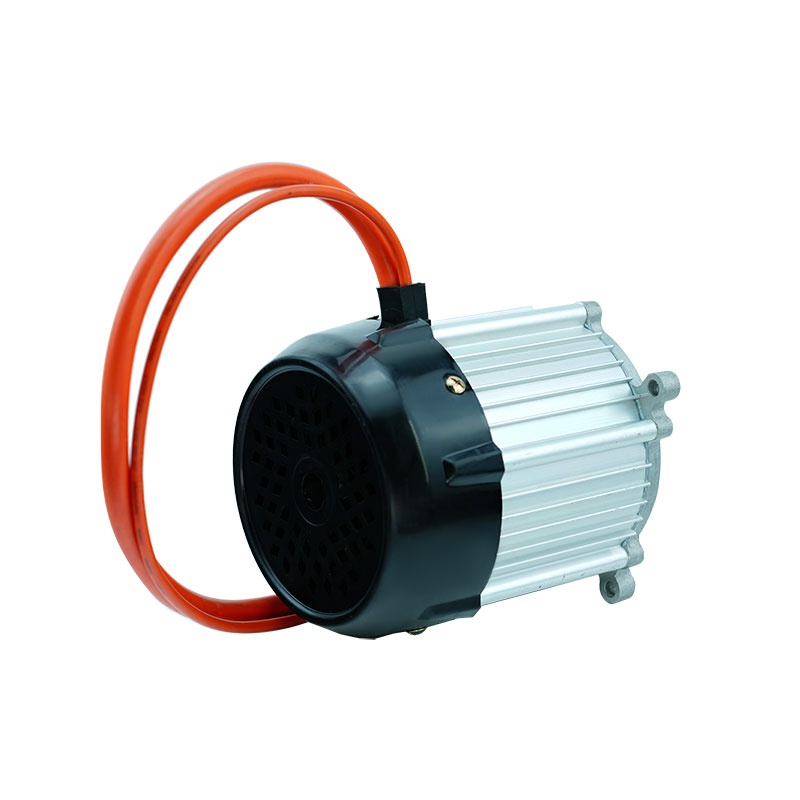

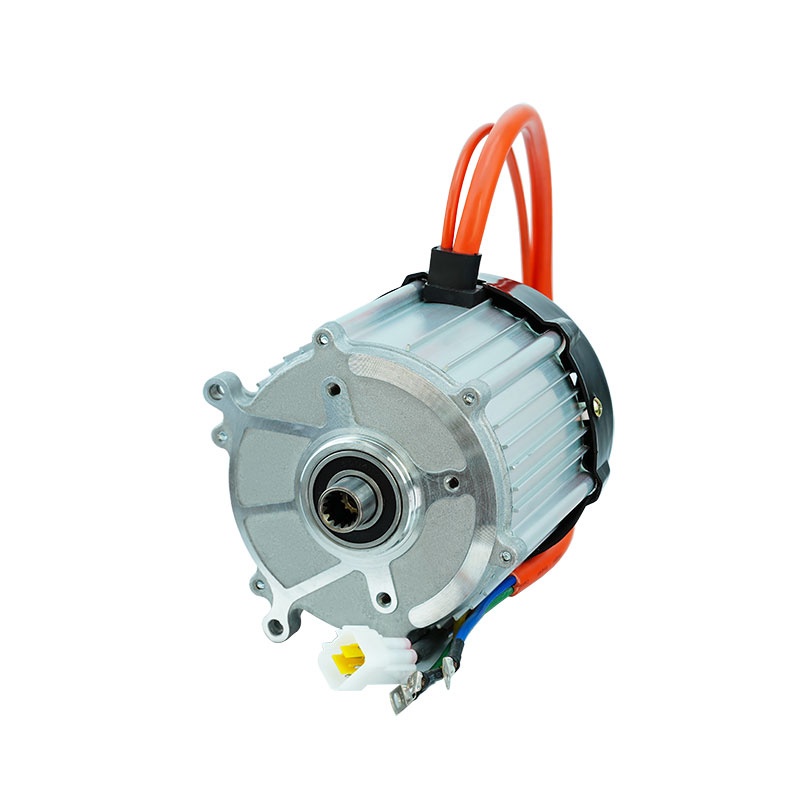

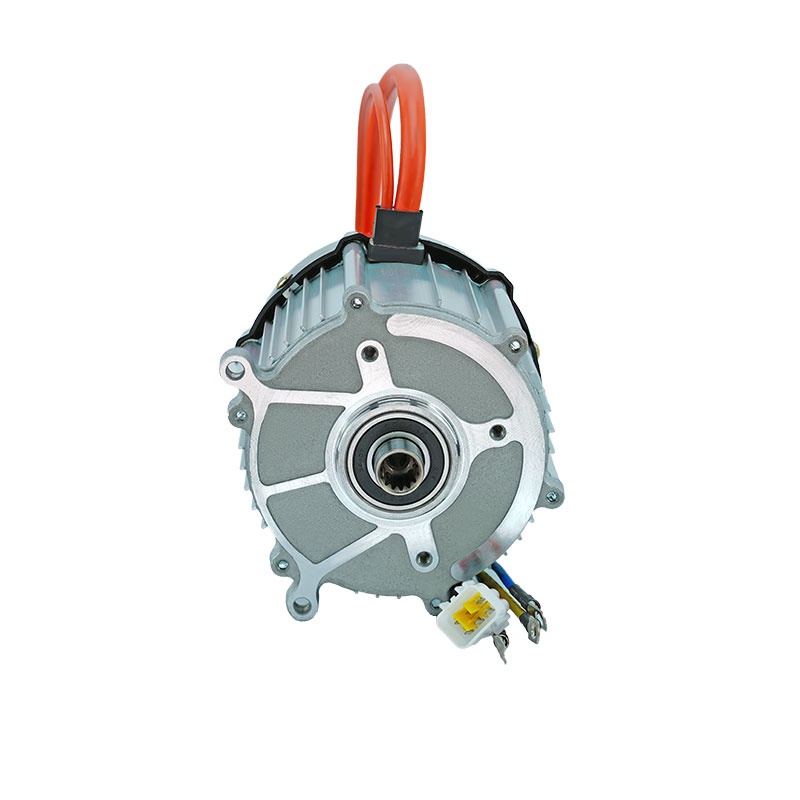

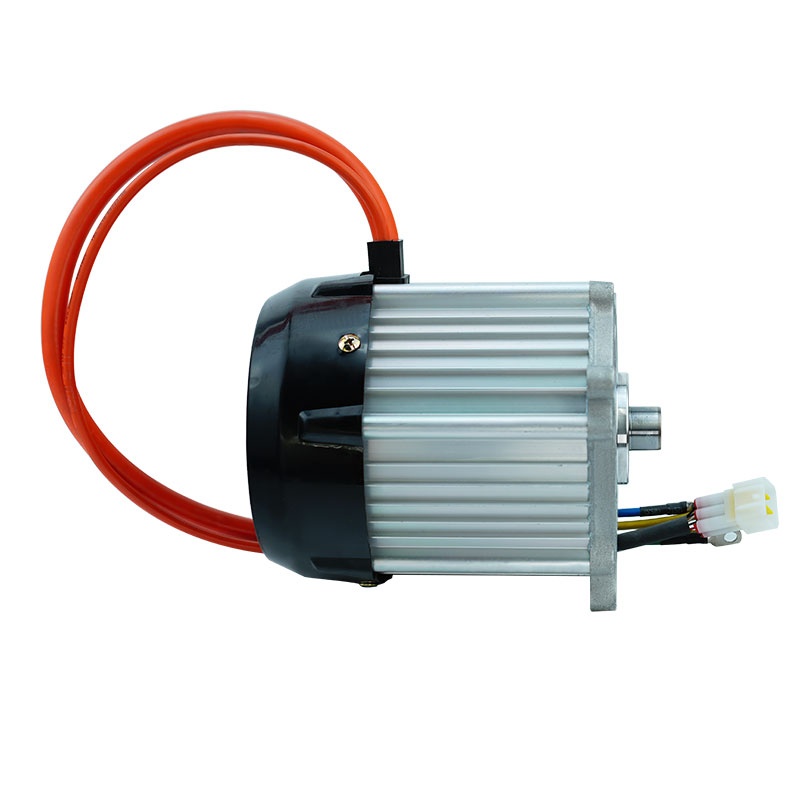

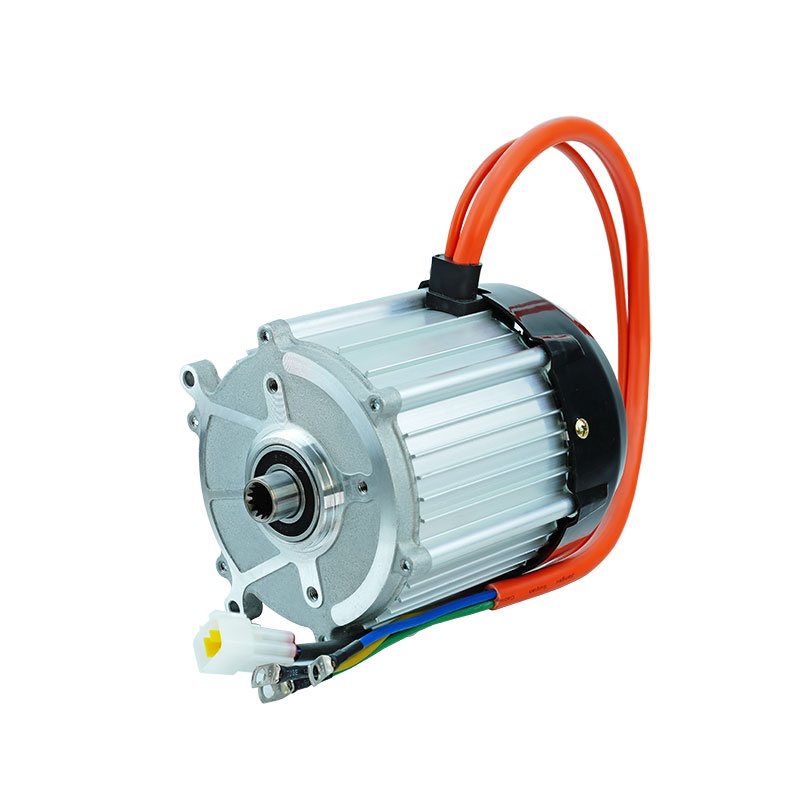

Motor pictures
