3.5Kw 60v ev conversion inverter ac asynchronous motor controller

date:2023-01-31

  • Product Details

3.5Kw 60v ev conversion inverter ac asynchronous motor controller


Brand Name: XINDA
Model Number: XD-MC-3KW-6030
Application:AC Asynchronous Motor
Input voltage:60(DC/V)
Max current output:300(AC/A)
Rated current output:60(AC/A)
Rated power:3.5(KW)
Max power output:12(KW)
Max frequency output:300(Hz)
Storage temperature:-40℃ ~ 70℃
Operating temperature:30℃ ~ 55℃
Efficiency:0.98

Features

(1)The controller adopts the German DSP, an international mainstream digital drive as a core control chip, which helps to build a good platform for motor control algorithm.
(2)By using the high power MOSFET tube for power device, it can realize the efficient energy conversion.
(3)Multiple safety protection for CAN interface and safety certification management of lithium battery BMS.
(4)Support short circuit protection (phase - ground, phase - phase, phase - source) , overload, over temperature, over voltage protection.
(5)A reliable & flexible regenerative brake technology can improve the driving mileage, and meet the needs of customer.
(6)Using micro-motion technology & slow descent and hill-holding technology for steep slope, more powerful climbing ability, stable hill-holding, stronger start-up.
(7)Adopt excellent optimization algorithm & frequency 0 to 300 HZ, to reduce noise and vibration amplitude.
(8)Perfect fault protection function, the buzzer reminds all kinds of faults, it’s convenient maintenance.
(9)Adopts CAN-bus technology to reduce wiring connected, the parameter can be adjusted and it’s programmable online.
(10)Adopts compatible design to make the volume smaller and the weight lighter.
(11)Simplify the installation and debugging steps.
(12)High reliability, low maintenance cost.
(13)Parameters or software could be customized as customer’s requirement.


Products Description
AC Motor Controller XD-MC-3KW-6030
XD-MC series AC controller is a driver developed for AC electric vehicles in low voltage. As the drive equipment of high reliability and large torque asynchronous motor, designed with four quadrants vector control method, it can control the motor speed & torque precisely. It is widely used in pure electric passenger car, low-speed A00 class passenger car, electric sightseeing vehicle, electric logistic vehicle, etc.

Parameters
Input (DC/V)
60V
Max current output (AC/A)
300
Rated current output (AC/A)
60
Max power output (KW)
12
Max frequency output (Hz)
300
Working environment temperature (℃)
-30℃ ~ 55℃
Storage environment temperature (℃)
-40℃ ~ 70℃
Insulated performance
Input & ouput to the shell DC1000V,leaking current 0.05mA,insulated resistance 20MΩ
Controller efficiency
0.98
Cooling method
Naturel cooling/Air cooling
Vibration standard
GB/T2423
Control method
Vector control
Communication method
RS232/CAN
IP class
IP65
Weight (Kg)
1.5kg
Motor Type
AC Asynchronous motor
*It's the absolute maximum value in table,which could be adjusted according to the exact request of the customer

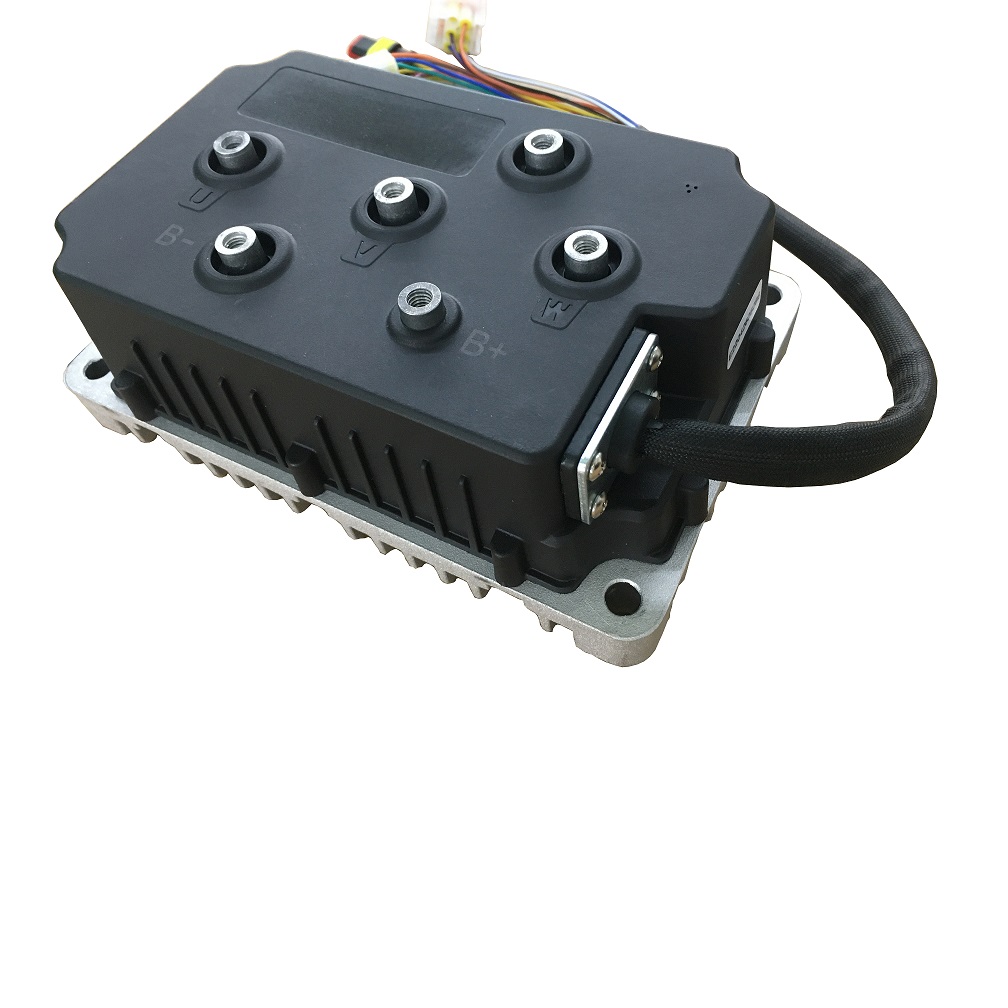

Details Images
Dimensions

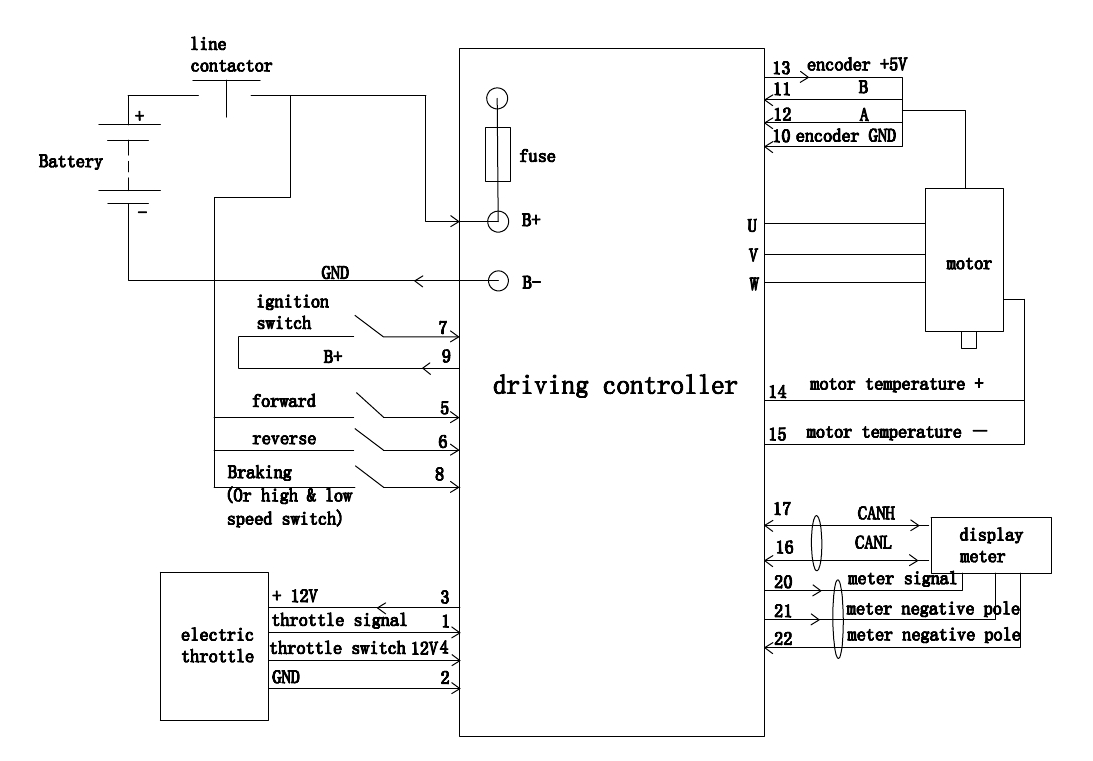

Circuit diagram
Common associations with controllers
Applications
Our controllers are widely used in electric passenger cars, electric golf carts, electric sweepers, electric trucks, electric forklifts, electric pallet trucks, electric mobile scissor lifts, electric sightseeing cars, electric tricycles and other electric vehicles.
