Product Details

Essential details

Place of Origin:Shandong, China

Brand Name: Xinda Motor

Model Number: XD-KIT #1

EV convertion kit #1:10kw 120v

Usage:Car

Protect Feature:Enclosed

Function:Driving

Structure:Synchronous Motor

Phase:Single-phase

Speed:Variable Speed

Shape:Tubular

Power:DC

overload capacity:4 times

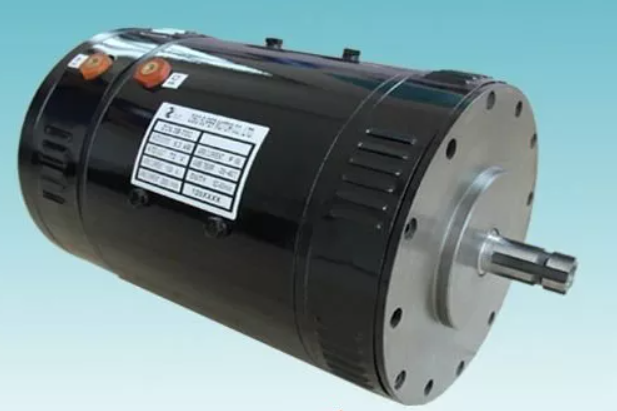

With our Kit #1 we use a separated excited motor that can acheive speeds of up to 60-80 km/h at 96-120 Volts DC in ideal conditions.. 45 to 50 km/h would be your normal top average driving speeds with this kit. The motor is manufactured by ourselves and is rated at 40 HP peak.

Electric cars are driven by large electric motors usually rated between 3.5 and 28 horsepower. For those accustomed to gas engines, this may not seem like much power, but the rating systems used for gas engines and electric motors are so different that the numbering system is almost meaningless. Gas engines are rated at their peak hp, electric motors are rated at their continuous hp. The peak hp of an electric motor is usually 8 to 10 times its continuous rating. A 30 hp electric motor will generally perform like a 50-75 hp gasoline engine in a same weight vehicle.

if you want to convert your car into an Electric Vehicle

Never miss it

The detailed specification as follows:

Mode	Rated Power (Kw)	Rated Voltage (V)	Rated Current (A)	Rated Speed (r/min)	Rated Torque (N.m)
ZC/T6.3B-72C1	6.3	72	109	3200	18.8
ZC/T6.3B-72C2	6.3	72	109	2800	21.5
ZC/T6.3B-72C3	6.3	72	109	2500	24
ZC/T6.3B-72C4	6.3	72	109	2000	30
ZC/T6.3B-96C1	6.3	96	82	2800	21.5
ZC/T6.3B-108C1	6.3	108	73	2800	21.5
ZC/T7.5B-72C1	7.5	72	130	2800	25.6
ZC/T7.5B-72C2	7.5	72	130	2200	32.6
ZC/T7.5B-96C1	7.5	96	97	2800	25.6
ZC/T7.5B-96C2	7.5	96	97	2500	28.6
ZC/T7.5B-96C2	7.5	96	97	2000	35.8
ZC/T8.5B-72C1	8.5	72	147	2500	32.4
ZC/T8.5B-72C2	8.5	72	147	2000	40.6
ZC/T8.5B-96C1	8.5	96	110	2800	29
ZC/T8.5B-96C2	8.5	96	110	2500	32.5
ZC/T10B-96C1	10	96	130	2800	34.1
ZC/T10B-120C1	10	120	104	2800	34.1
ZC/T10B-144C1	10	144	87	3000	31.8
ZC/T11B-144C1	11	144	95	3000	35
