XD775

Date：2023-02-02　　　Author：XINDA MOTOR

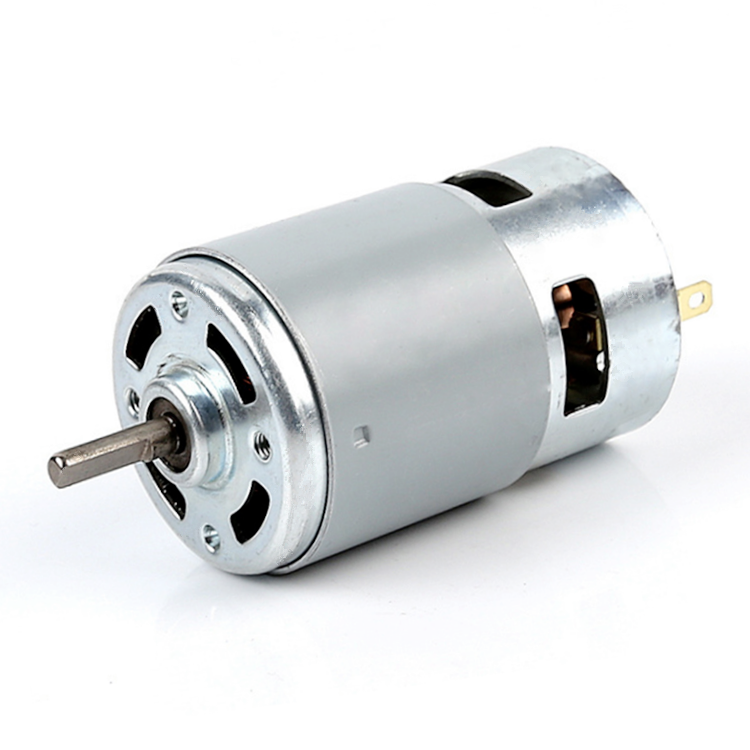

775 DC Motor Thread Shaft Micro For Hand Tufting Gun

Brand Name: XINDA
Model Number: XD775
Usage:BOAT, Car, Electric Bicycle, FAN, Home Appliance, BOAT, Car, Electric Bicycle, FAN, Home Appliance, BOAT, Car
Type:GEAR MOTOR
Construction:Permanent Magnet
Commutation:Brushless
Protect Feature:Waterproof
Efficiency:IE 2
Product Name:Brush
Continuous Current:0.3-0.5A
Rated Voltage:24V,12v
Rated Speed:4000rpm
Noise:Low Noise Level
Application:Car, Ceiling fan, Boat
Weight:0.5kg
Certification:ce

Packaging Details

1.Inside :Plastic bags with Chemical Desiccant For Gear Housing
2.Middle :Individual Carton packaging
3. Outside :Wooden Box
Strict product packaging ensures that the product is not damaged during transportation.

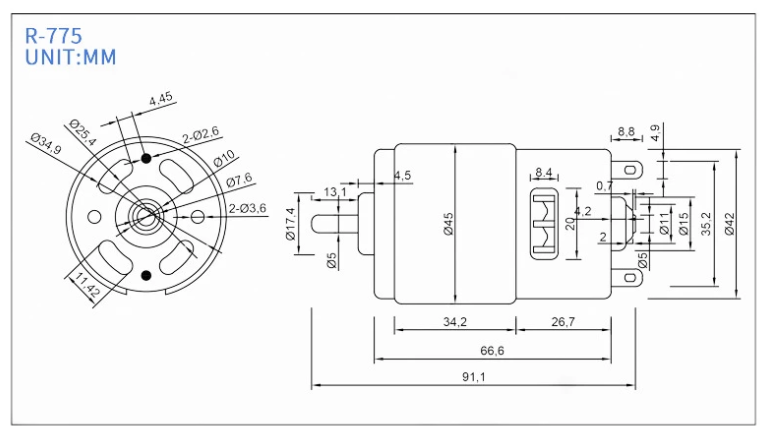

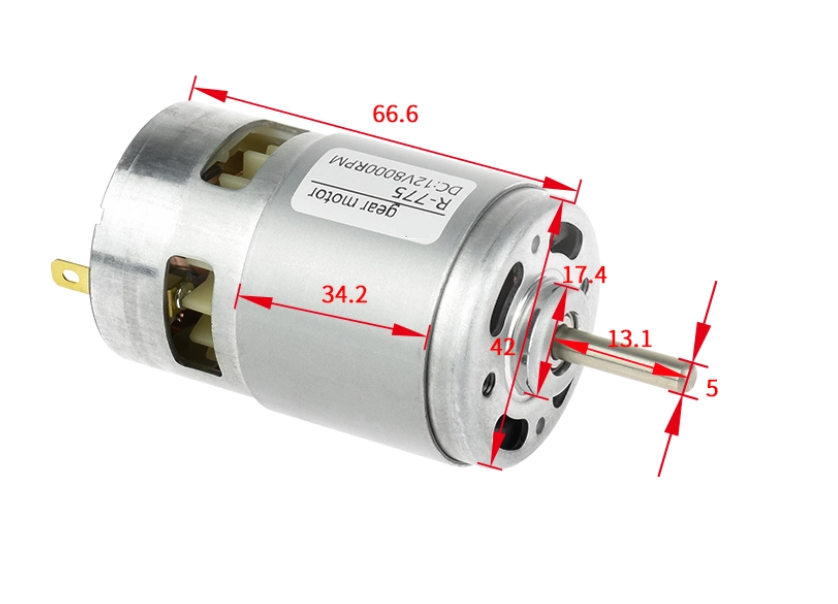

Product Details

Product number	XD775 motor
Diameter	45mm
Length	91.1mm
Voltage	12V, 24V
Speed (RPM)	4000-8000rpm per minute
Power	60W
Gear type	Metal gear
Motor type	Brushless
Rated Load Torque	Max 3.08kg.cm
Whether to reverse	Reversible
Bearing at output shaft	Ball-bearing or oil-retaining bearing
Whether speed regulation	Adjustable speed
Weight	0.4kg

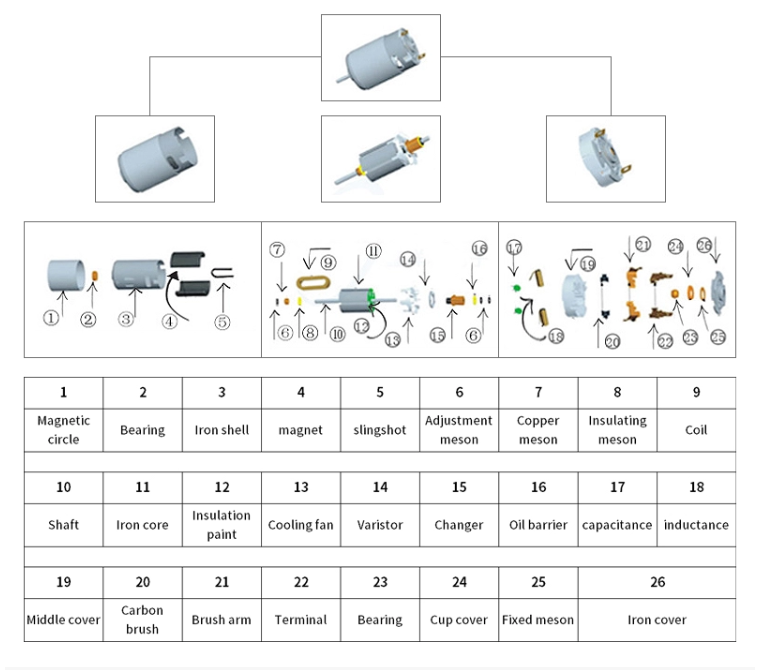

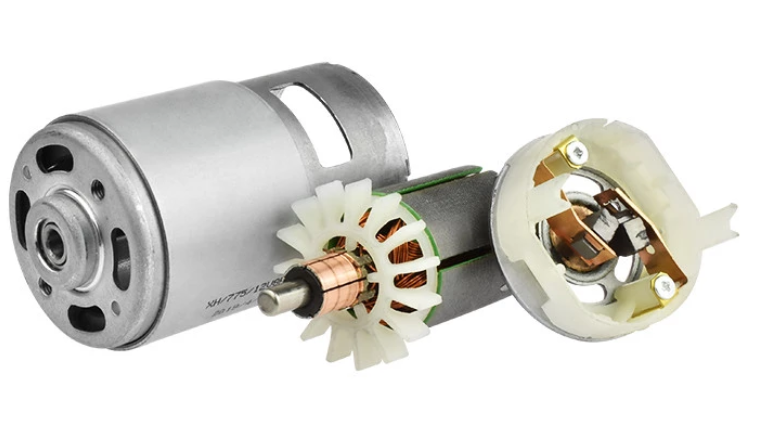

Details Images

Success Case

Packing &Shipping

Packing Method

1.Outer packing: Standard export carton with required shipping marks

2.Inner packing: Waterproof packing with shock absorbing EPE and cardboard surrounded 3.As per the clients requirements

Delivery & Shipment Method

We will ship the items after the payment.

We can ship to you by UPS/DHL/TNT/EMS/Fedex,by air and by sea. For the Countries & Regions where EMS cannot deliver,pls choose other shipping ways; Pls contact us directly and we will use your preferred ways
