1203BB Motor Speed Control

1203BB 6V 12V 24V 3A 80W DC Motor Speed Control

This DC Motor Speed Controller allows controlling the direction of a DC motor using a Pulse-Width-Modulated (PWM) DC voltage with
a Duty Cycle fully adjustable from 0%-100%.
The motor speed controller can easily provide a continuous current of 3A to your DC motor or other DC load.


Input supply voltage:DC 6V-28V
The maximum output power: 80W
The maximum continuous output current :3A
Duty Cycle adjustable:0%-100%

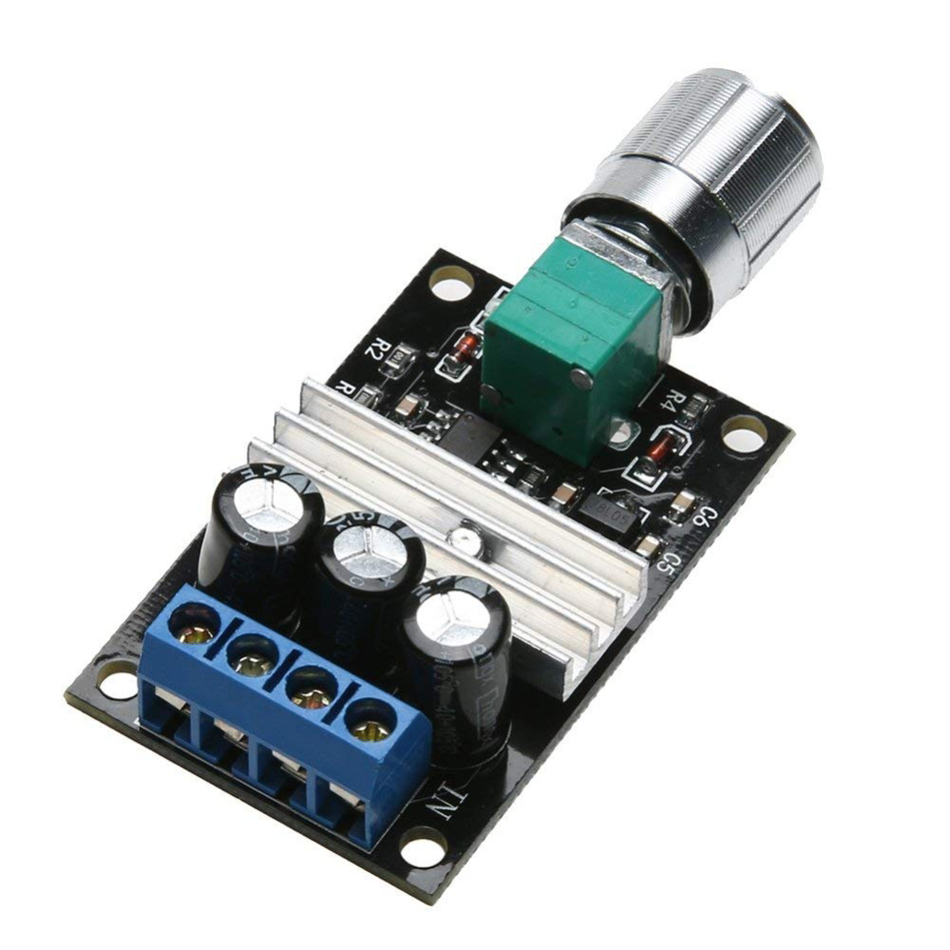

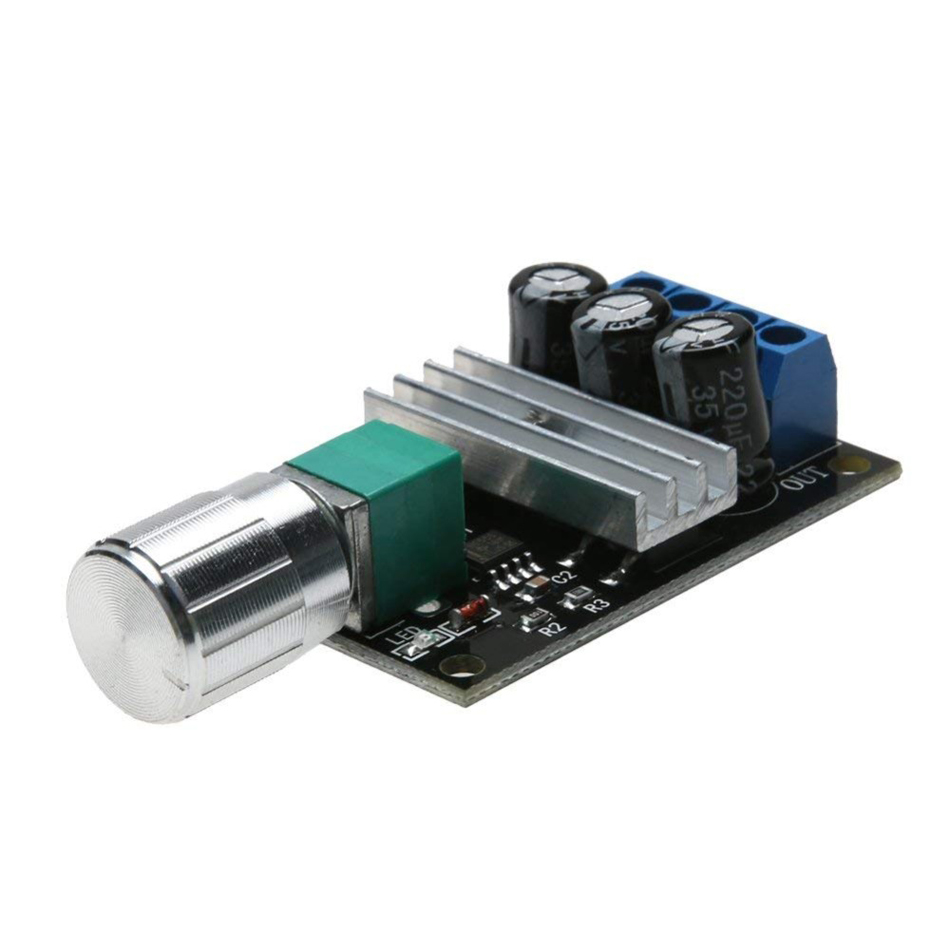

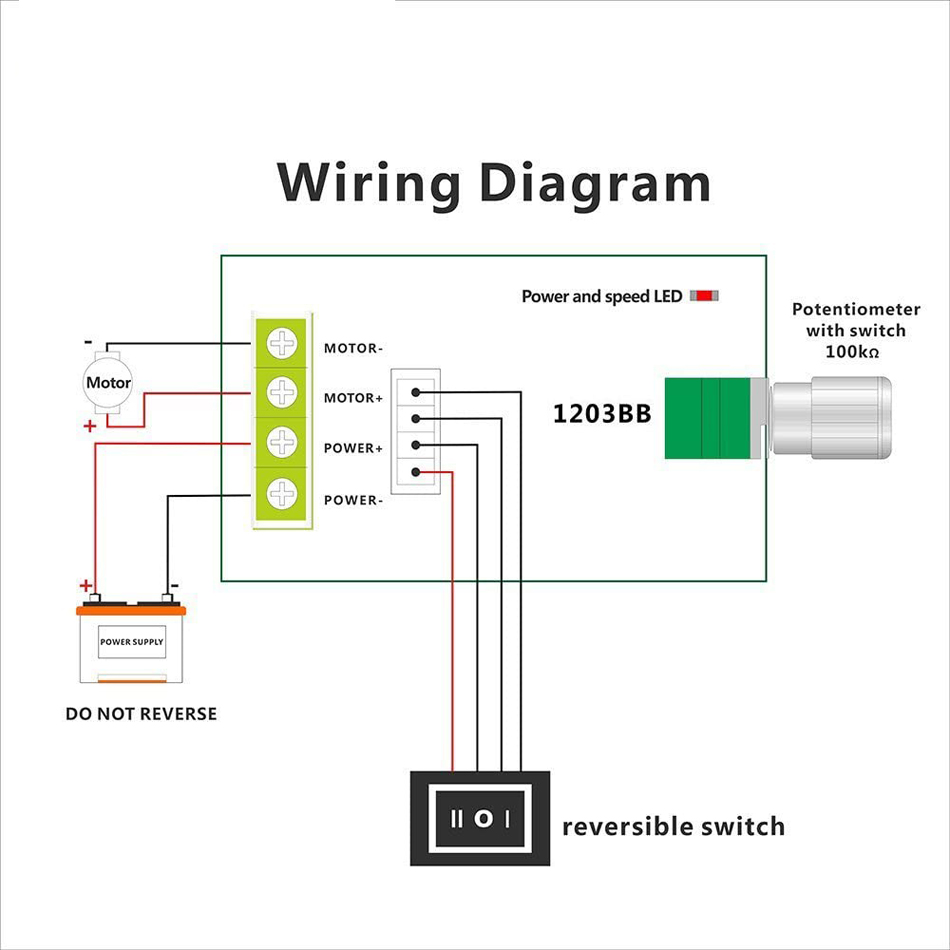

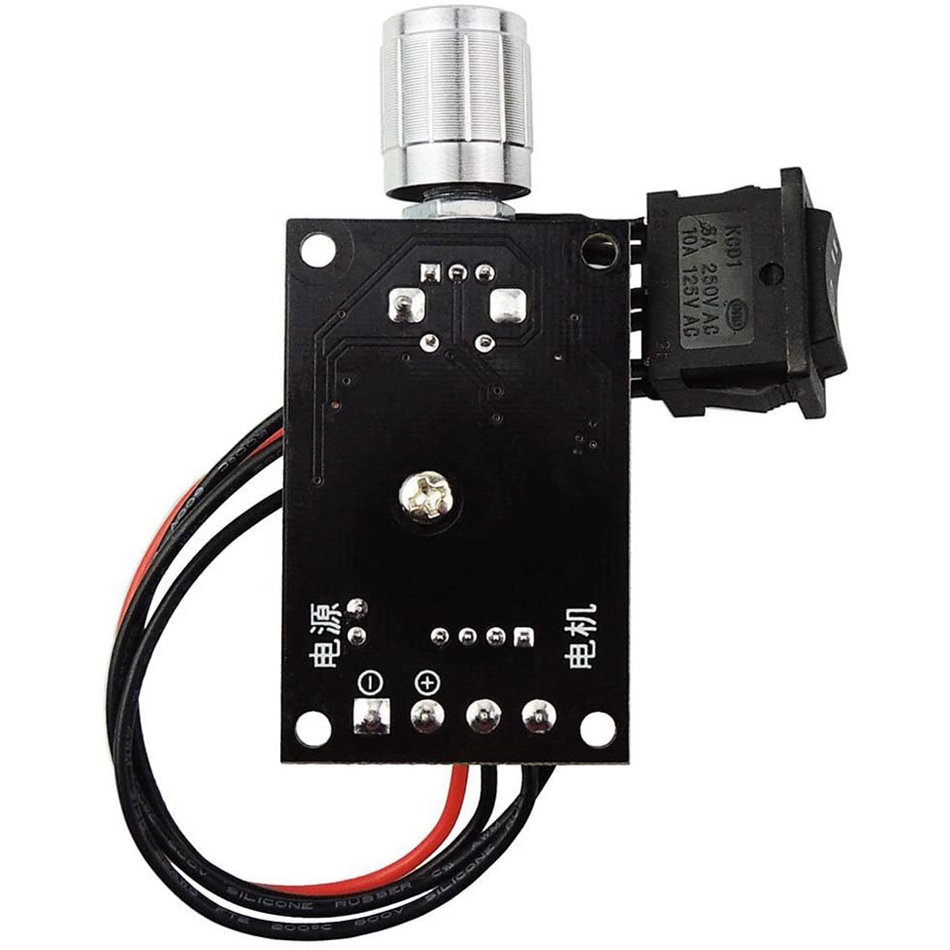

1. Connect your DC motor (or DC load) to the motor terminals as indicated on the wiring diagram.
2. Connect a voltage of 10V-36V DC to the circuit making sure of the correct polarity of the connection. Note that the voltage
applied to the motor will be supply voltage applied to the circuit. It is recommended to add an appropriately rated fuse inline
with the positive supply in order to protect the circuit from any possible short circuits.
3. You can now control the speed of the motor through potentiometer.

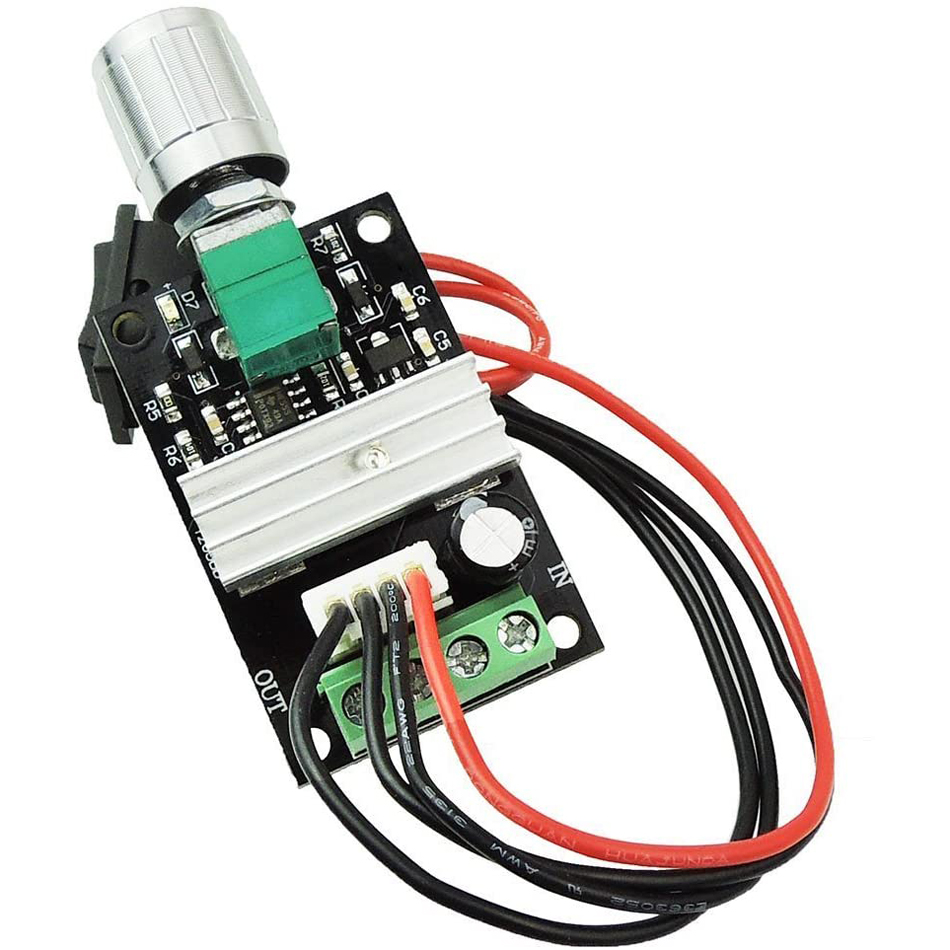

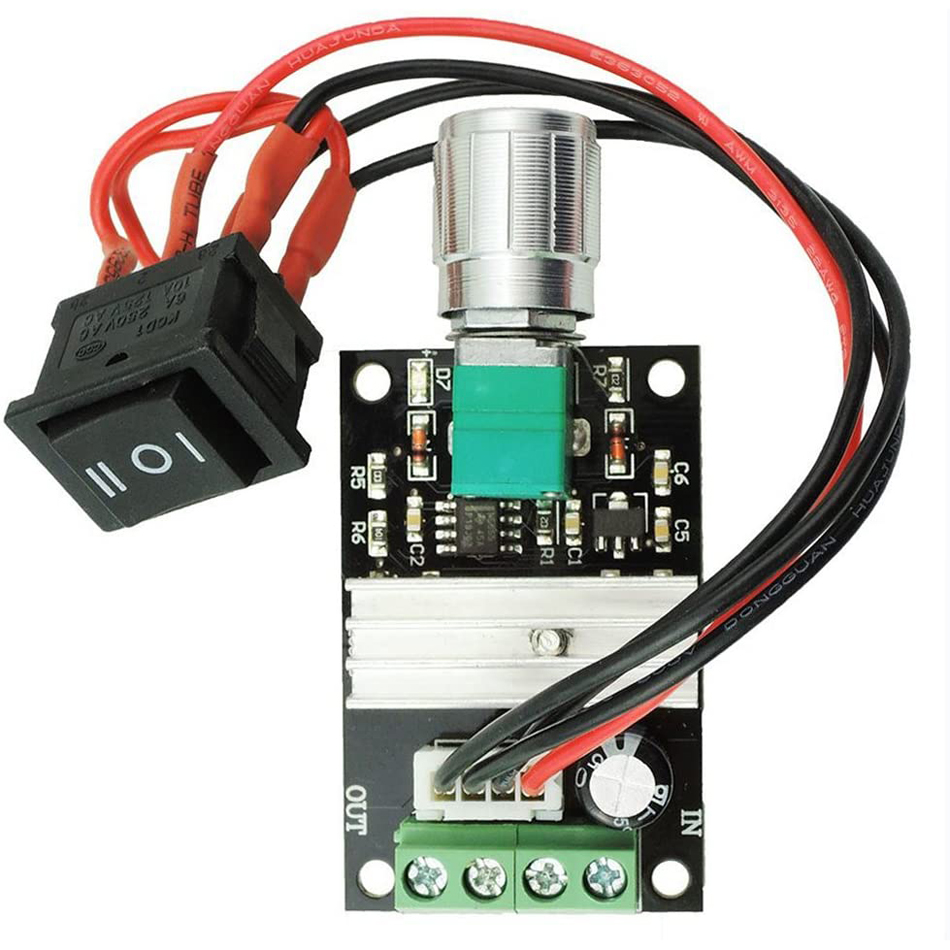

Package Included:

1 x PWM DC Motor Speed Controller with/without Potentiometer Switch
