The planetary reducer is a mechanical transmission component that connects the servo motor and the applied load in the motion control system, and plays the role of matching speed, inertia and transmitting torque. The planetary reducer is a relatively precise mechanical part, which can be divided into different types of reducers according to the output mode or internal gear or shape. Generally, the shaft output reducer is widely used, and the shaft output reducer can be seen in different application situations. The flange output reducer is widely used in the case of large axial or radial loads, then the flange Which torque is greater, the output reducer or the shaft output reducer? Let's find out together.

The flange output reducer has the characteristics of compact interface structure, and the geometric structure of the output side of the flange reducer is oriented to the most common industrial robots. Other standard drive components such as flanged gears and couplings can be quickly and easily connected. This type of flange reducer can easily complete the quick connection with the machine. In addition, the connection between the flange reducer and the machine tool can also be secured through the positioning pin holes built into the output flange.

The function and structure of the XINDA flange reducer are not much different from that of the shaft output reducer, and the relative shape is more compact, because the flange shaft with a very short geometric structure is used. In addition, the flange output shaft has a larger diameter. , can achieve high torsional strength. Especially for applications where the direction of motion alternates, such as a combination with a pulley, various types of belts can be used for the drive system. The reducer based on the flange output can be used in a variety of application ranges, and different types can also be provided according to the requirements of performance parameters. s solution.

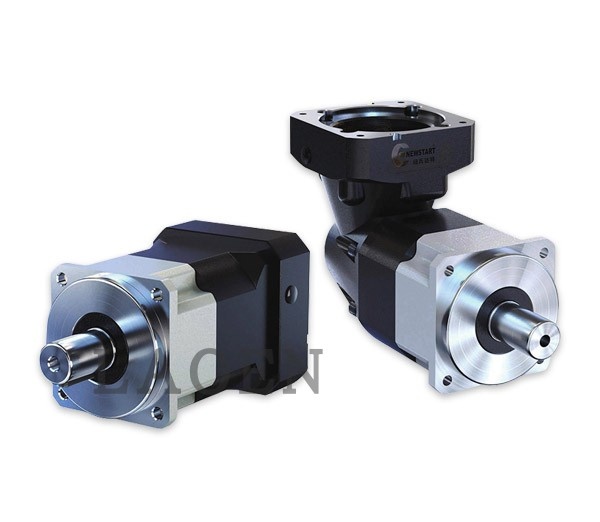

The shaft output reducer is suitable for most driving application scenarios. There are also different types of output shafts to choose from. The compact unit combined with the shaft output planetary reducer and servo motor improves flexibility. Due to the relatively small moment of inertia of the shaft output reducer, it is also an ideal solution in many application fields. The shaft output reducer has a wide variety of varieties, and the most suitable product can be selected with the greatest degree of freedom.
