XD6D300-24GU21S-6GU-120K

Date:2023-01-18   Author:XINDA MOTOR
XD6D300-24GU21S-6GU-120K

300W DC motor 12V24V high speed motor 3000 turn positive and reverse large torque motor 12v dc electric


Brand Name:XINDA
Model Number:6D300-24GU21S-6GU-120K
Usage:BOAT, Car, Electric Bicycle, FAN, Home Appliance, Cosmetic instrument, SMART HOME
Type:Brushless Motor
Torque:9
Construction:Permanent Magnet
Commutation:Brushless
Protect Feature:Totally Enclosed
Speed(RPM):custom
Continuous Current(A):custom
Efficiency:IE 4
Product Name:Linear Actuator
Application:Automatic Product
Motor type:PMDC Brushed Motor
Keywords:High Torque Gear Motor
Voltage:48V
Rated Voltage:12v24vdc
Power:0.5W Max (Can Customize)
Size:12*24mm
Name:Electric Motorcycle Conversion
Single package size: 27X19X19 cm

Single gross weight:6.000 kg

Product Description

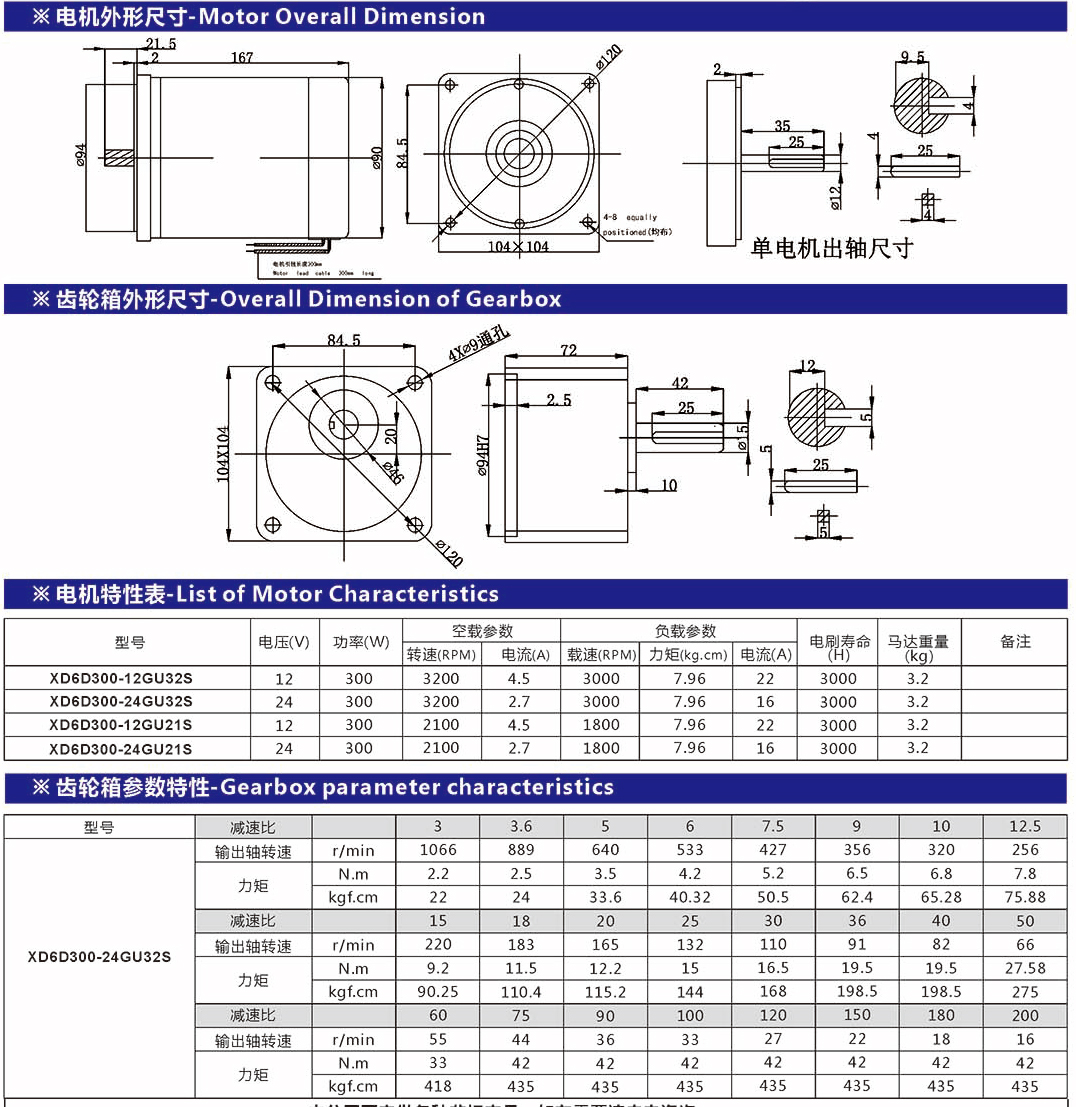

Specification
item
value
Warranty
3months-1year
Place of Origin
China
Guangdong
Brand Name
XINDA
Model Number
6D300-24GU21S-6GU-120K
Usage
BOAT, Car, Electric Bicycle, FAN, Home Appliance, Cosmetic instrument, SMART HOME
Type
Brushless Motor
Torque
9
Construction
Permanent Magnet
Commutation
Brushless
Protect Feature
Totally Enclosed
Speed(RPM)
custom
Continuous Current(A)
custom
Efficiency
IE 4
