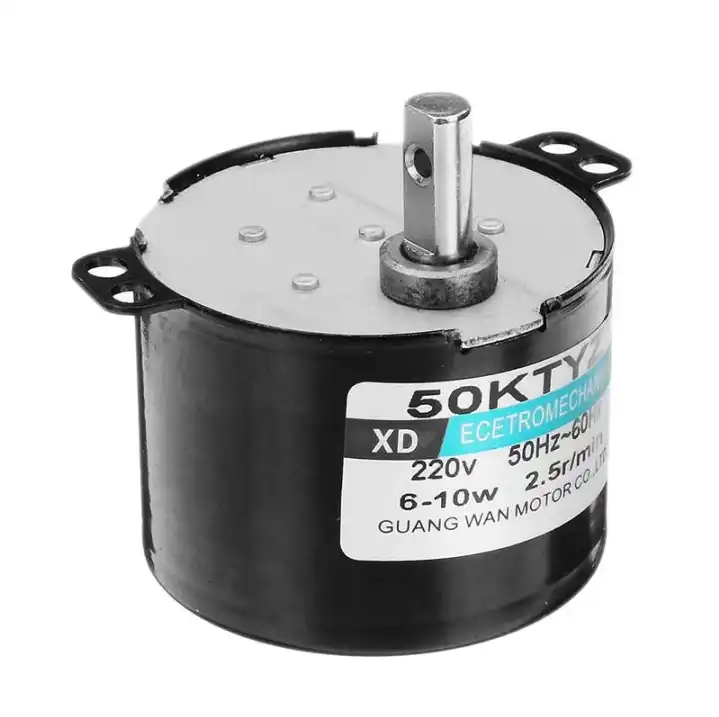

Wholesale 220v Ac Synchronous Motor 6 W Micro Gear Slow Speed Motor 50ktyz low speed ac motor ac electric fan blade

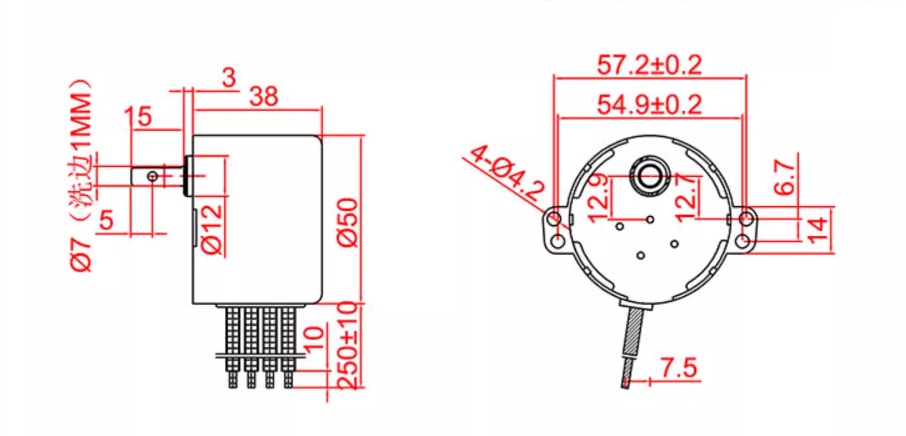

50ktyz motor drawing
Key attributes
Motor 220V small motor permanent magnet synchronous deceleration integrated high torque low speed motor forward and reverse 50KTYZ #motor #machine #gearedmotor #electricappliance #universalmotor #synchronousmotor #electricdevice #factory Brand: Xinda
Model: 50KTYZ
Origin: Mainland China
Power supply mode: AC
Voltage: 220V/24VAC
Power: 6-10W
Model: 50KTYZ
Speed: 2.5, 5, 10, 15, 20, 30, 50

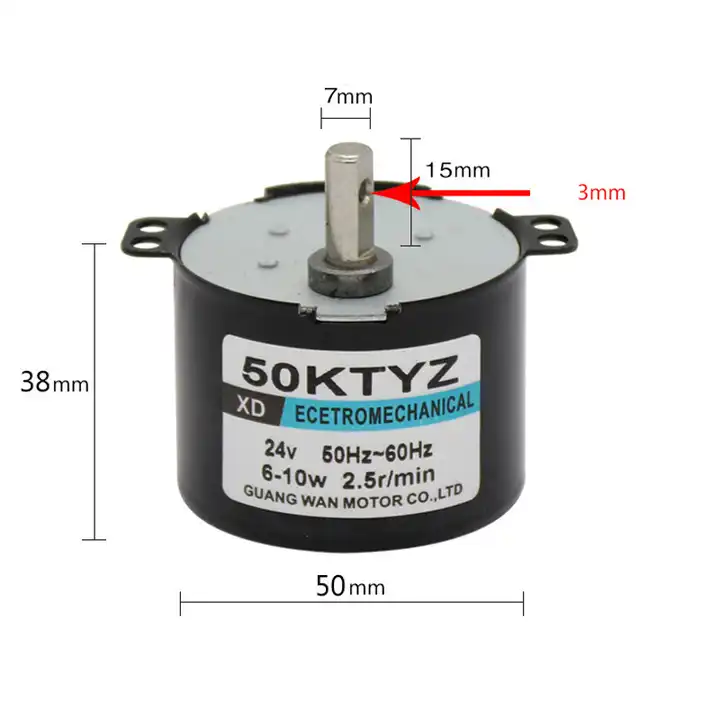

Size: 50MM*38MM
Outgoing shaft size: 7*16mm

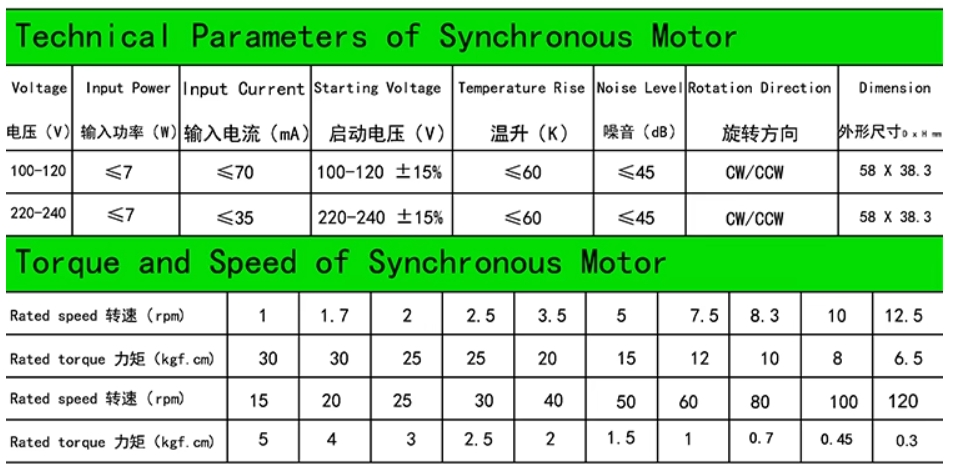

50ktyz motor datasheet
Industry-specific attributes
Other attributes
Brand Name:XD
Model Number:XD50KTYZ
Type:Asynchronous Motor
Frequency:50HZ
Phase:Single-phase
AC Voltage:220 V
Product Name:AC synchronous motor
Coil:copper wire
Voltage:220 V
Speed:2.5-110r
Power:6W
Maximum torque:15kg.cm
Protect Feature:TEFC
Application:General Machinery
Two-year warranty
Permanent magnet AC synchronous motor
All-steel gears, pure copper coils, high-quality magnetic tiles, high torque
Features of KTYZ series synchronous motor
-Durable
-Low friction
-Strong stability
-Increase torque
-All steel gear
-Can be reversed
-Make work easier
Product core advantages
Guaranteed quality, the choice of millions of users

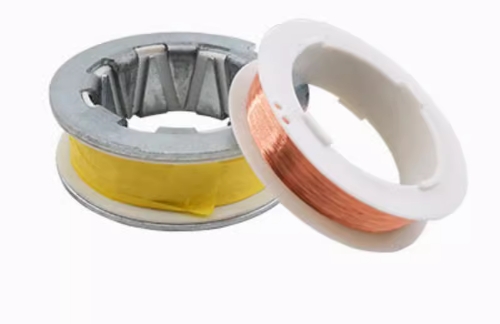

pure copper coil
Claw pole type pure copper coil, 100% pure copper wire, low heat generation, strong conductivity, high power density, SKT experimental test conclusion is durable.

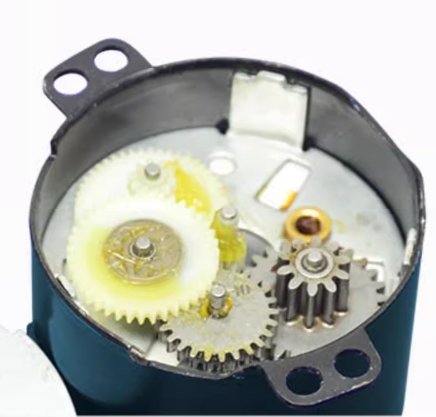

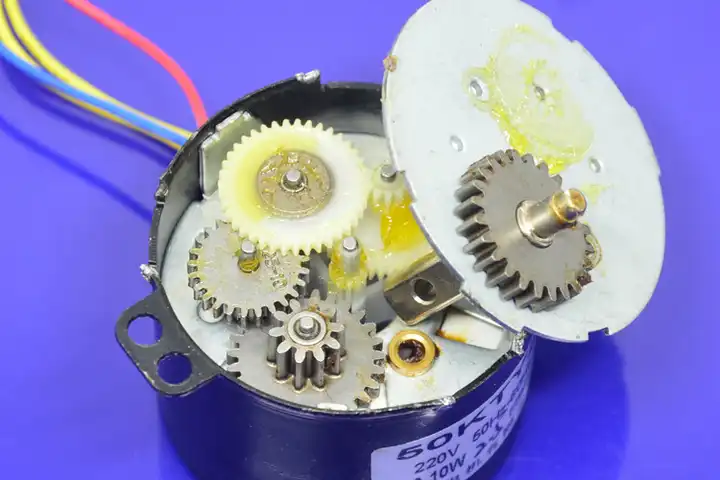

internal gear
The gears are made of plastic and metal gears for smooth transmission.

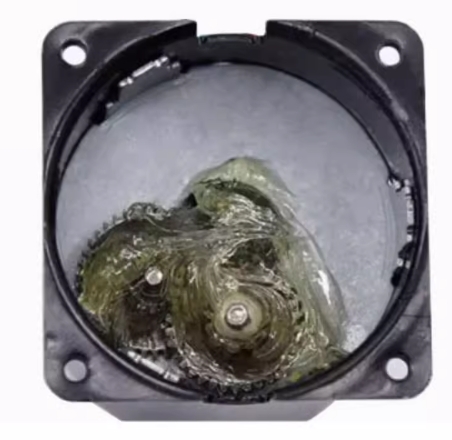

Imported butter can reduce friction, heat up more slowly and reduce gear friction noise. It can also protect the gear set and extend its use.

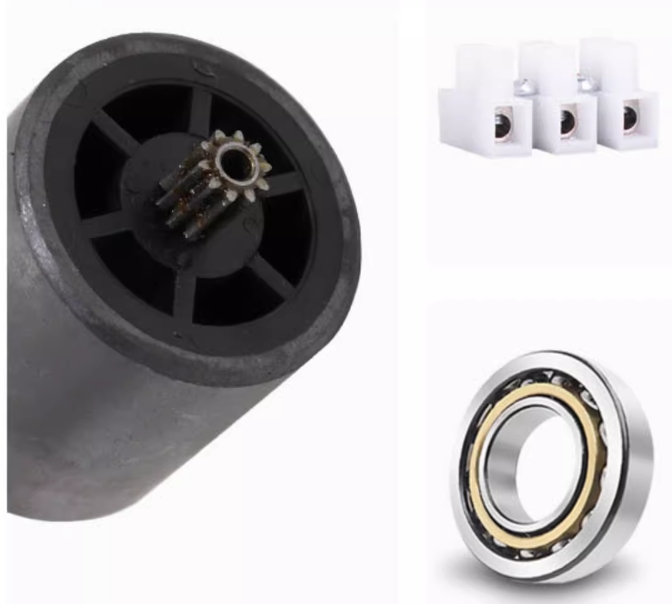

Terminal blocks: environmentally friendly, high temperature resistant, safer to use
Ball bearing: Not easy to deform, runs smoothly, has low bass and low noise, high speed, low friction coefficient, and fast heat dissipation.
2200GS magnetic tile
Permanent ferrite has a small temperature coefficient and has good temperature stability, high coercivity, high magnetization, and high efficiency at high temperatures.
The upgraded capacitor has full particles, large capacity, safety, stability and durability. Different models have different capacitances

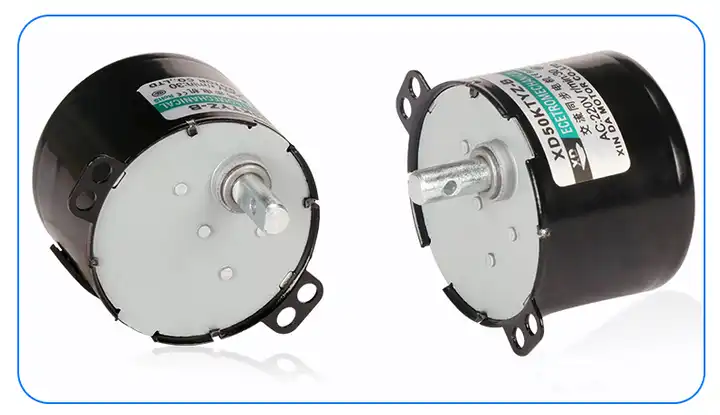

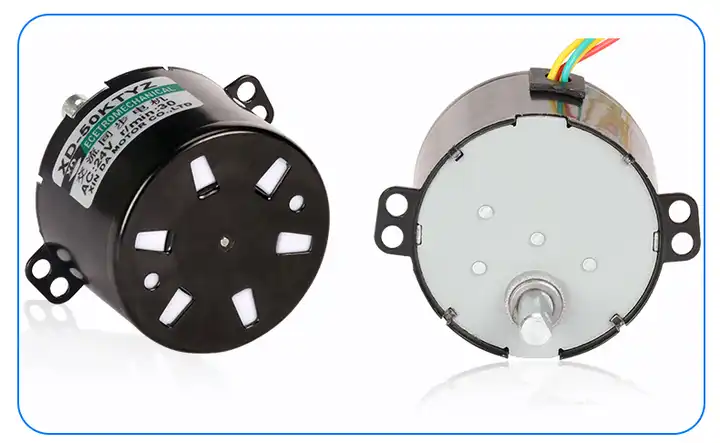

AC synchronous motor
Pure copper coil with high torque output
Every part of the motor has been strictly screened, and we pay attention to every detail to provide you with better products.
50KTYZ

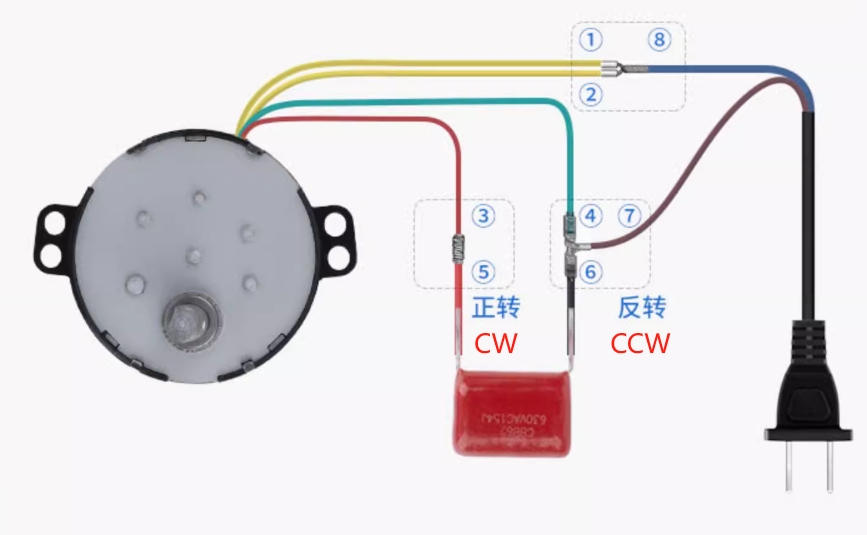

Synchronous motor wiring diagram
The two yellow wires of motors 1 and 2 are connected in series to the 8 AC power wire.
3 Motor red wire is connected to 5 capacitor
4 motor green wire is connected to 6 capacitor
7 AC power cord connection
The picture shows the reverse connection method (motor green wire)
Please connect the forward rotation (motor red wire)
Line 7 in the picture is used to control the forward and reverse rotation of the motor regardless of the zero live line.
Please pay attention to safety when wiring. Non-professionals please contact customer service.
|
Name
|
AC synchronous motor
|
|
Coil
|
copper wire
|
|
Speed
|
2.5R/5R/10R/15R/20R/30R/50R/60R/80R/110R
|
|
Power
|
6W
|
|
Voltage
|
220V
|
|
Application
|
Household appliances, smart home, mechanical and electrical equipment, automation equipment, dishwasher, glue machine, dispensing
machine, food machinery, rotary lamp, intelligent window fan, medical machinery, conveying machinery
|
Frequently Asked Questions
What type of motor is this? Can it be non-speed adjustable?
A: This type of motor is a synchronous motor (model: KTYZ) with fixed speed and cannot be adjusted. Please select the speed according to your needs. The motor supports forward and reverse rotation.
What do the numbers in front of the model number mean?
A: The number in front of the model represents the frame number. The larger the frame number, the greater the power and the greater the weight it can drive.
Is the faster the motor speed, the better?
A: No! Due to different speeds, the output torque is also different.
The greater the speed, the smaller the force, and the smaller the weight driven.
The smaller the speed, the greater the strength, and the greater the weight driven.
So what range is this motor suitable for?
A: As long as the motor size, voltage, speed and torque can meet your requirements. This product can be used in any mechanical automation equipment.
Mainly applicable to: instrumentation, automation control, glue laminators, stage lighting, advertising and exhibition equipment, pan/tilt, various valves, scientific research facilities, sports equipment, curtain automatic control, towel softening machines, automatic voltage regulators, curtain machines, Rotating antennas, fiber optic Christmas lights, fiber optic flowers, stage lights, seascape lights, rotating lamps, stage lights, electric dining tables, electric mannequins, electric advertising paintings, electric shelf automatic turntables, dishwashers, scientific and educational instruments, GS-TH10 (oil fumes )Peristaltic pump, monitor pan/tilt, electric machinery, heating and cooling valve automation instrumentation, electric advertising, mahjong table, screen laminating machine, money counting machine, barbecue equipment, electric curtains, remote control curtains, electric opening and closing curtains, electric Ceiling curtains, outdoor awnings, aluminum blinds, electric lift curtains, electric remote control curtains, electric summons devices and all low-power, low-constant-speed operation equipment.
Process flow
Strict factory inspection process ensures the quality of each motor
-Insulation resistance test
-Speed test
-Power test
-Vibration test
-Passed the test
-life span test
-load test
-Temperature test
Customization process
Support OEM/ODM customization
-Consult customer service to provide needs
-Quality inspection customer inspection
-Sample production based on incoming samples and drawings
-Finished product packaging and fast delivery
-Confirm sample production
-Customer receipt transaction successful
