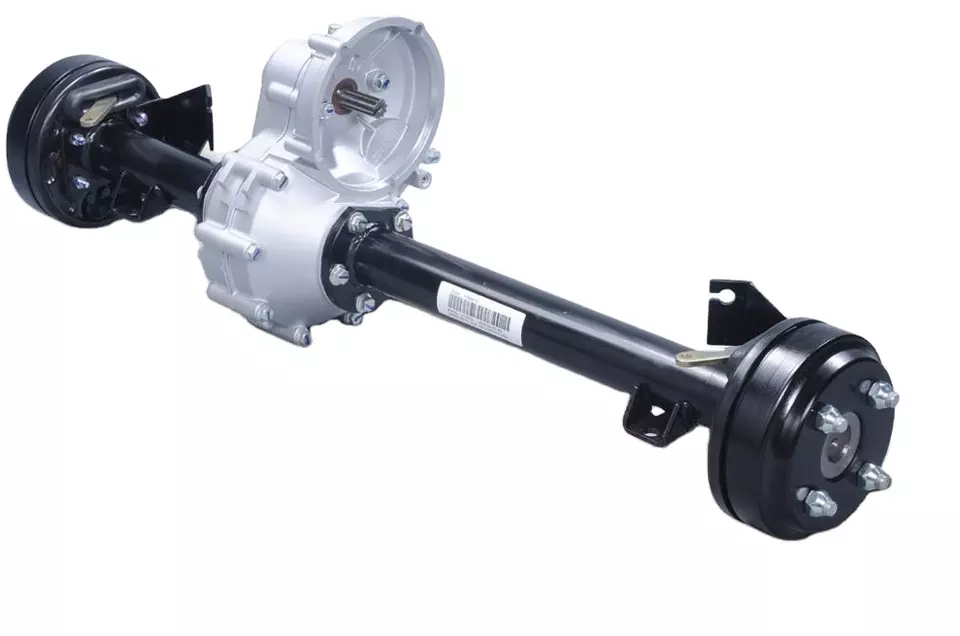

EV drive axle customized. electric rear axle for golf cars trucks van tricycles
Date：2023-01-05 Author：XINDA MOTOR
Brand Name:XINDAModel Number:980mm
Product Name:rear axle
Application:Golf carts,sightseeing bus
ratio:customized like: 16.9/12.3/16.2/17.8/10.6/8/9/6.5
Torque capacity:130N.m
length:980mm.customized
brake:Disk Brake Axle/Drum brake etc
Noise:65dB
wheel gear oil:75W-90,GL-5
Car Make: golf carts
Warranty:12 Months
Specification
Transmission,rear axle,drive axle,hydraulic drive axles
Below is with our information:
1.Innovated gear transmission technology;
2. Differential axles ranges from 3kw -20 kg drive kit for electric vehicles;
3. Brake: Hydraulic drum, self-restoration;
4. Regular reduction ratio: 5/6.5/8:/9/10.6/12.31:1/ 16.2/17.8/18.6/19.6/21/25;
5. Max loading capacity: 2000kg;
6. Regular internal end distance: 950mm/1100mm/1280mm/1350mm;
7. Regular PCD distance: 4*Φ100mm, 4*Φ101.6mm, 5*Φ114.3mm
Below is with our information:
1.Innovated gear transmission technology;
2. Differential axles ranges from 3kw -20 kg drive kit for electric vehicles;
3. Brake: Hydraulic drum, self-restoration;
4. Regular reduction ratio: 5/6.5/8:/9/10.6/12.31:1/ 16.2/17.8/18.6/19.6/21/25;
5. Max loading capacity: 2000kg;
6. Regular internal end distance: 950mm/1100mm/1280mm/1350mm;
7. Regular PCD distance: 4*Φ100mm, 4*Φ101.6mm, 5*Φ114.3mm
Product Description
FAQ
Q1. Can I have a sample order?
A: yes, we welcome sample order to test and check quality.
Q2. What about the lead time?
A: Sample needs 3-5 days.
Q3. Do you have any MOQ limit?
A: Low MOQ, 1pc for sample checking is available
Q4. How do you ship the goods and how long does it take to arrive?
A: We usually ship by DHL, UPS, FedEx or TNT. It usually takes 3-5 days to arrive. Airline and sea shipping also optional.
Q5. How to proceed an order?
A: Firstly let us know your requirements or application.
Secondly We quote according to your requirements or our suggestions.
Thirdly customer confirms the samples and places deposit for formal order.
Fourthly We arrange the production.
Q6. Is it OK to print my logo on the product?
A: Yes. Please inform us formally before our production and confirm the design firstly based on our sample.
Q7: Do you offer guarantee for the products?
A: Yes, we offer 1 year warranty to our products.
Q8: How to deal with the faulty?
A: Our products are produced in strict quality control system and the defective rate will be less than 0.2%
A: yes, we welcome sample order to test and check quality.
Q2. What about the lead time?
A: Sample needs 3-5 days.
Q3. Do you have any MOQ limit?
A: Low MOQ, 1pc for sample checking is available
Q4. How do you ship the goods and how long does it take to arrive?
A: We usually ship by DHL, UPS, FedEx or TNT. It usually takes 3-5 days to arrive. Airline and sea shipping also optional.
Q5. How to proceed an order?
A: Firstly let us know your requirements or application.
Secondly We quote according to your requirements or our suggestions.
Thirdly customer confirms the samples and places deposit for formal order.
Fourthly We arrange the production.
Q6. Is it OK to print my logo on the product?
A: Yes. Please inform us formally before our production and confirm the design firstly based on our sample.
Q7: Do you offer guarantee for the products?
A: Yes, we offer 1 year warranty to our products.
Q8: How to deal with the faulty?
A: Our products are produced in strict quality control system and the defective rate will be less than 0.2%
