XD-36XA555YSY

Date:2023-01-05   Author:XINDA MOTOR
XD-36XA555YSY

15W slow motor 24V low speed DC motor speed regulation large torque motor brushless for electric scooters


Brand Name:XD
Model Number:XD-36XA555YSY
Usage:BOAT, Car, Electric Bicycle, FAN, Home Appliance, Cosmetic instrument, SMART HOME
Type:DC planetary reduction motor
Torque:34KG.CM
Commutation:Brush
Protect Feature:Drip-proof
Speed(RPM):10-500 rpm
Continuous Current(A):0.2A
Efficiency:IE 2
Product Name:DC planetary reduction motor
Coil:copper wire
Voltage:12V/24V
electric current:0.15-0.2A
Application:Automatic Product
Motor type:PMDC Brushed Motor
Keywords:High Torque Gear Motor
Rated Voltage:12v24vdc
Power:0.5W Max (Can Customize)
Size:12*24mm

Products Description

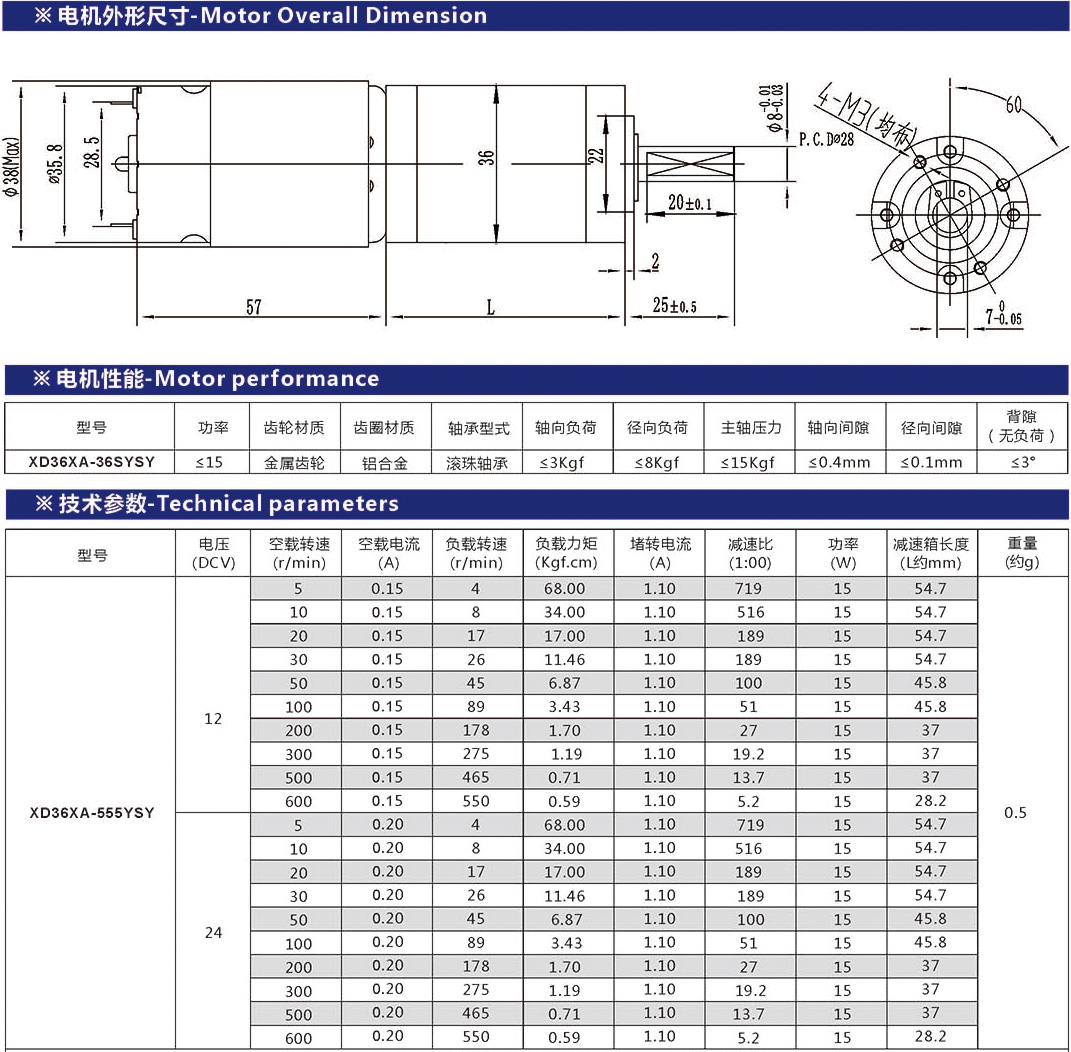

Specification
Name
DC planetary reduction motor
Coil
copper wire
Speed
10R/30R/40R/50R/100R/150R/200R/300R/400R/500R
Power
15W
Voltage
12V24V
Application
Household appliances, smart home, mechanical and electrical equipment, automation equipment, dishwasher, glue machine, dispensing
machine, food machinery, rotary lamp, intelligent window fan, medical machinery, conveying machinery
