Place of Origin:Shandong, China
Brand Name: XINDA
Car Fitment:WULING (SGMW)
Model Number:RA-1-1280
Car Make:tricycle
OE NO.:OTHER
Warranty:2 Years

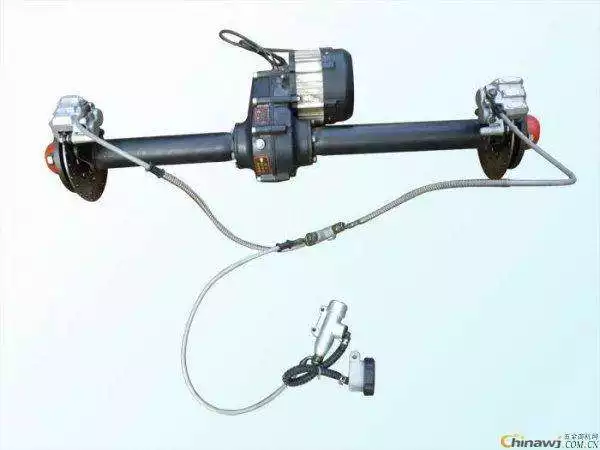

Product name:Electric tricycle Rear Axle with motor
Application:electric tricycle
Car Model:3 Wheels Vehicle
Axle type:Cart Rear Axle
Braking Type:Diameter 160/180 Drum Brake
Packing:Wooden Box
Length:1280mm
Brake System:Disc /Drum Brake Rear Axle

Gearbox:6/8/10/12:1

5KW ELECTRIC AC asynchronous motor
Rated power :5kwRated voltage:60V
Rated torque: 16N.M
Rated current : 98A
.Rated speed : 3000r/min

5KW AC motor controller
Rated power :5 kwrated voltage: 60 v
Max output current: 450 A
rated current:45A
Max output power: 12KW
Max frequency output:300 Hz+
Communication method : RS232 /CAN
Control method : Vector control
