PWM DC motor governor
Date：2022-12-21 Author：Shandong Xinda Motor Co., Ltd.
PWM DC motor governor 5V-35V speed control switch 5A switch function LED dimmer speed control board
Model: 5A speed control board
Brand: XD
Origin: Mainland China

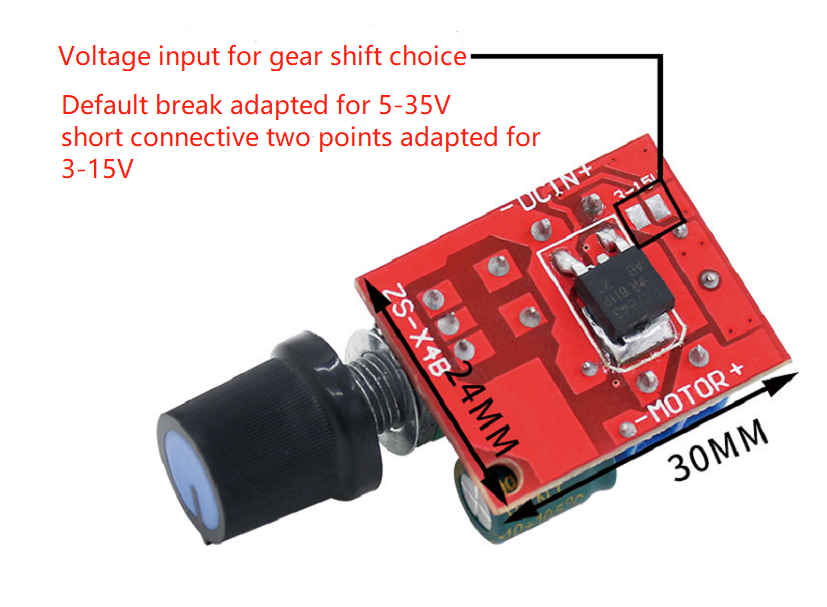

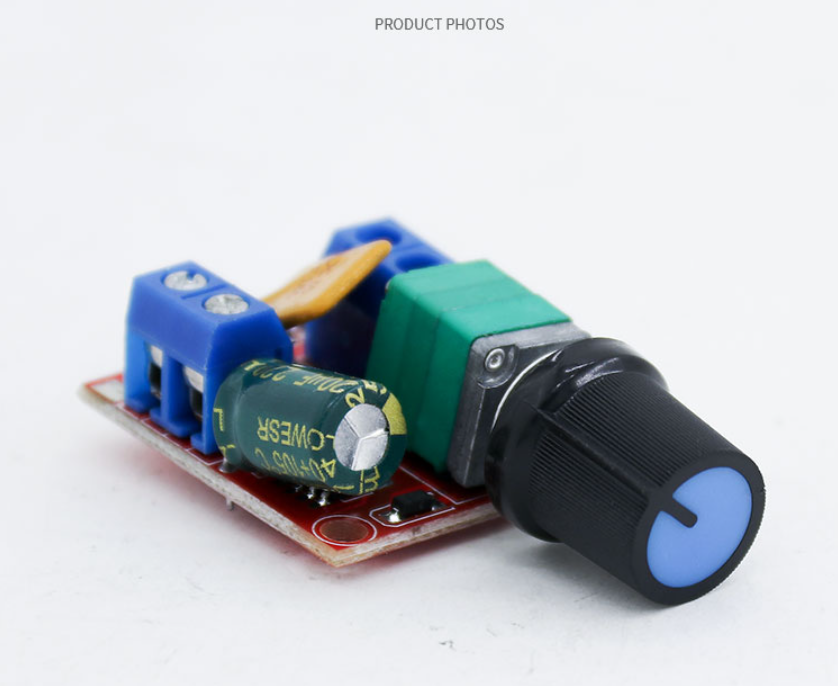

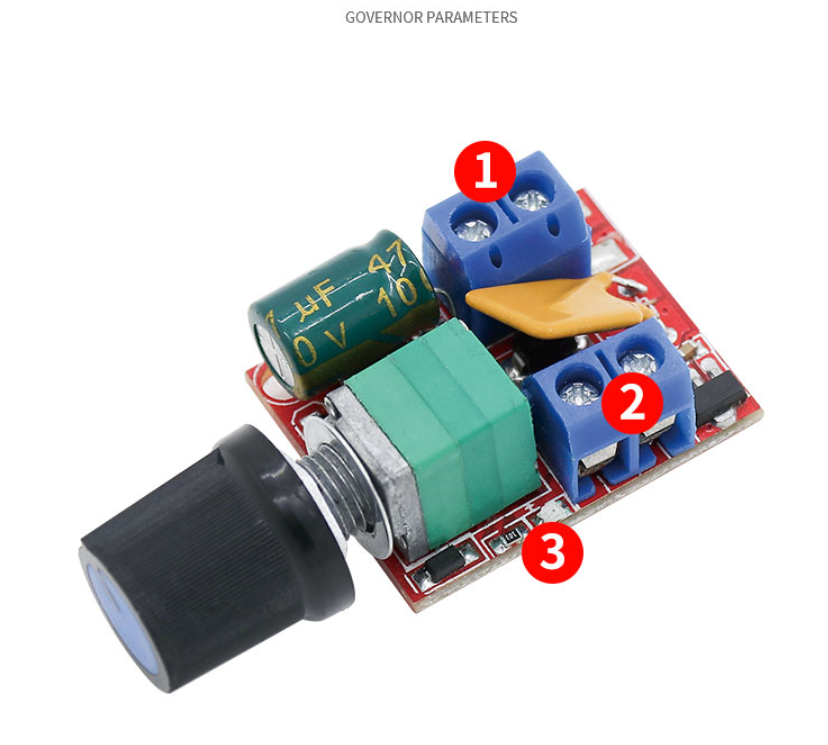

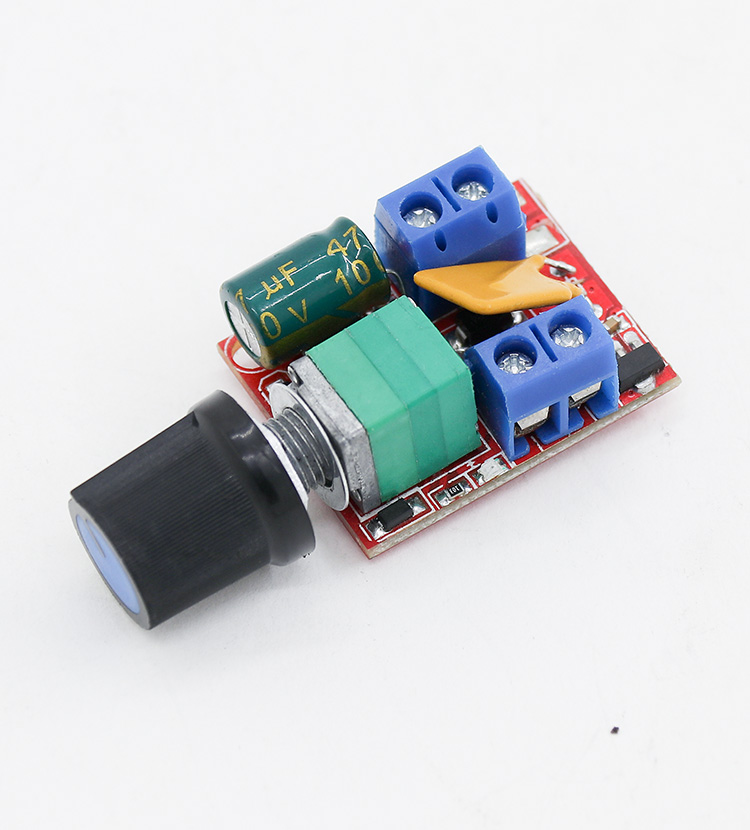

XD 5A speed control board-PWM DC motor speed control board with 5V-35V speed contrrol switch
-Voltage stability
-Self-recover fuse wire
-0-100% stepless speed regulating
| Working Voltage | DC 5V-35V |
| Workihng Current | 2A (peak 2.5A) |
| Control Power | 90W(peak) |
| Static Current | 0.015A (standby) |
| PWM Percentage | 1%~100% |
| PWM Frequency | 10KHz |
| Shell Size | 30*24*15(L*W*H) |
