XD60D94

Date：2022-10-21　　　Author：XINDA MOTOR

Single and double output shaft 24V DC high-speed motor 80W micro slow motor 12V micro reducer motor dc mini

Brand: XD

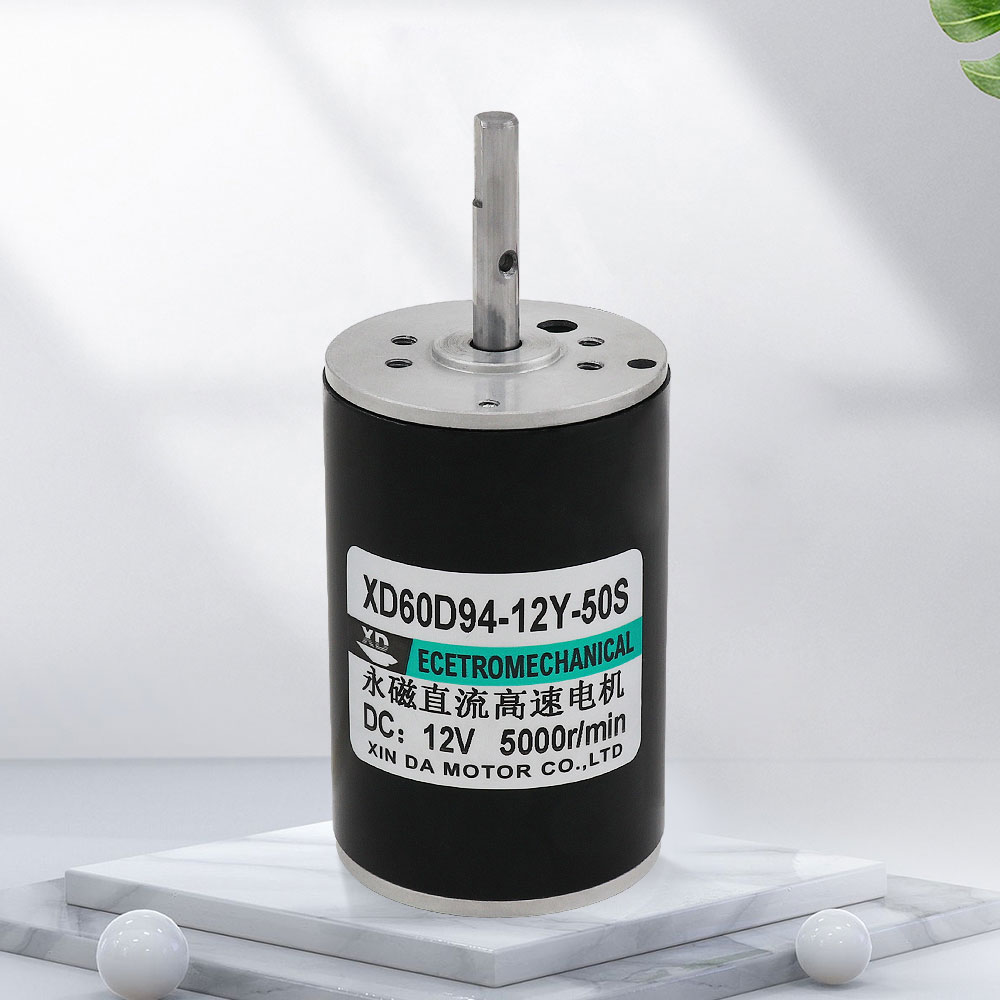

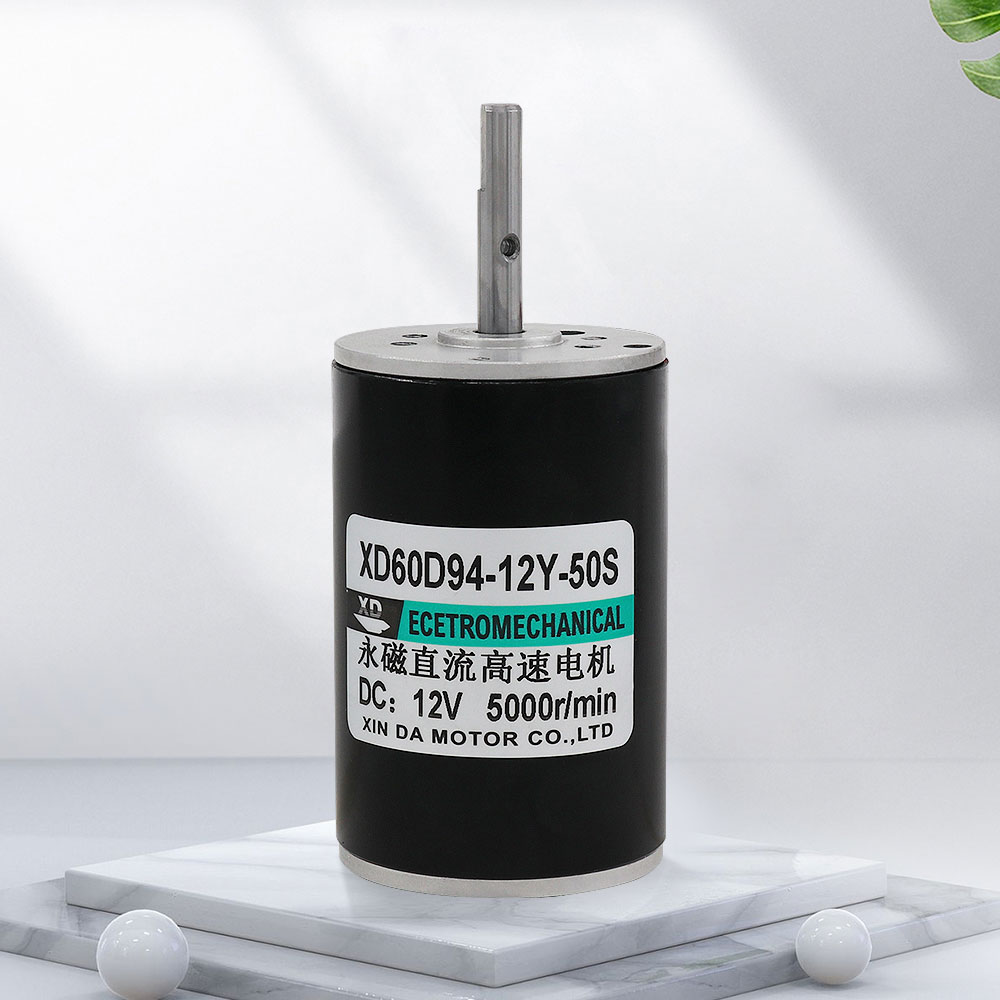

Model: XD60D94-12Y-50S

Origin: Mainland China

Power supply mode: DC

Warranty: 1 year
Place of Origin: Shandong, China
Brand Name:XD
Model Number:XD60D94
Usage:BOAT, Car, Electric Bicycle, FAN, Home Appliance, Cosmetic instrument, SMART HOME
Torque:10kg.cm
Commutation:Brush
Protect Feature:Drip-proof
Speed(RPM):5000-10000r
Continuous Current(A):5-25A
Efficiency:IE 4
Product Name:DC high speed motor
Application:Automatic Product
Motor type:PMDC Brushed Motor
Keywords:High Torque Gear Motor
Certification:CCC
Rated Voltage:12v24vdc
Power:80W (Can Customize)
Size:12*24mm
Name:Electric Motorcycle Conversion
Typical Applications:Automotive Product

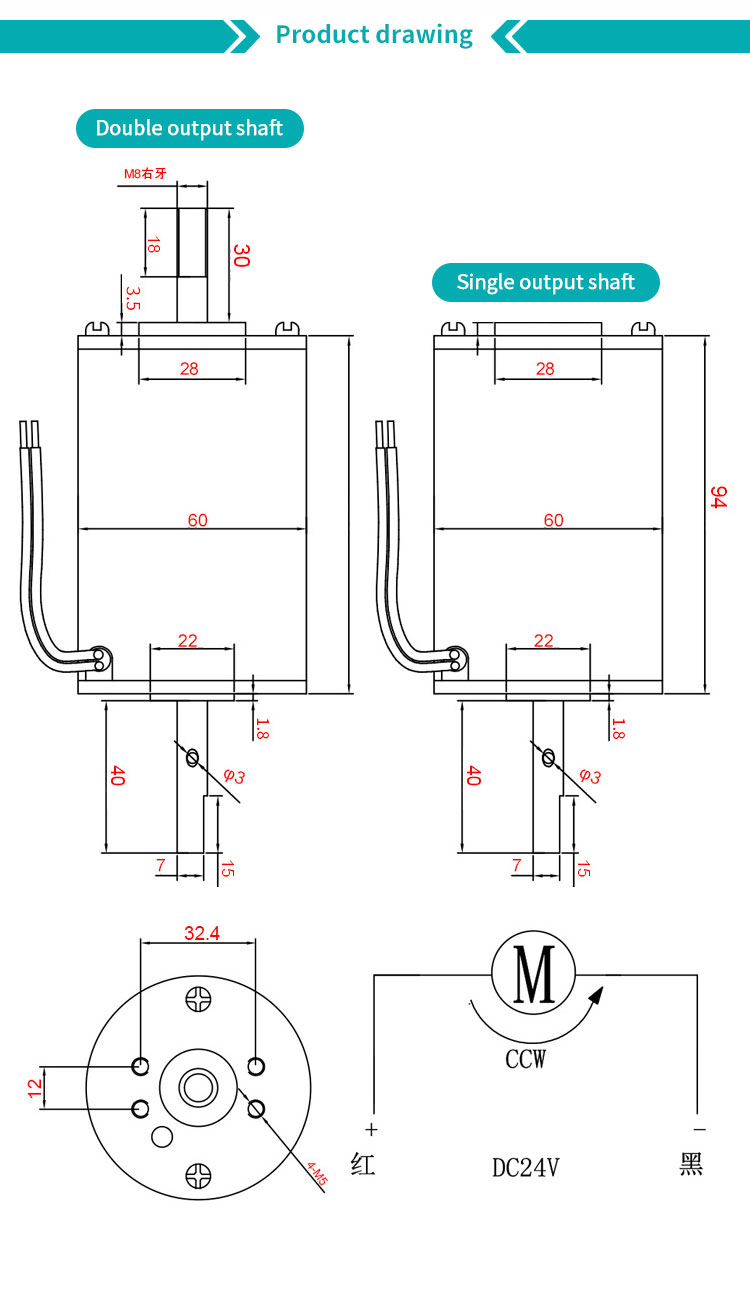

Shaft selection :

-Double output shaft motor
-Single output shaft motor
Voltage/shaft rotation speed selection:

-12V5000 rpm
-24V10000 rpm

Product introduction

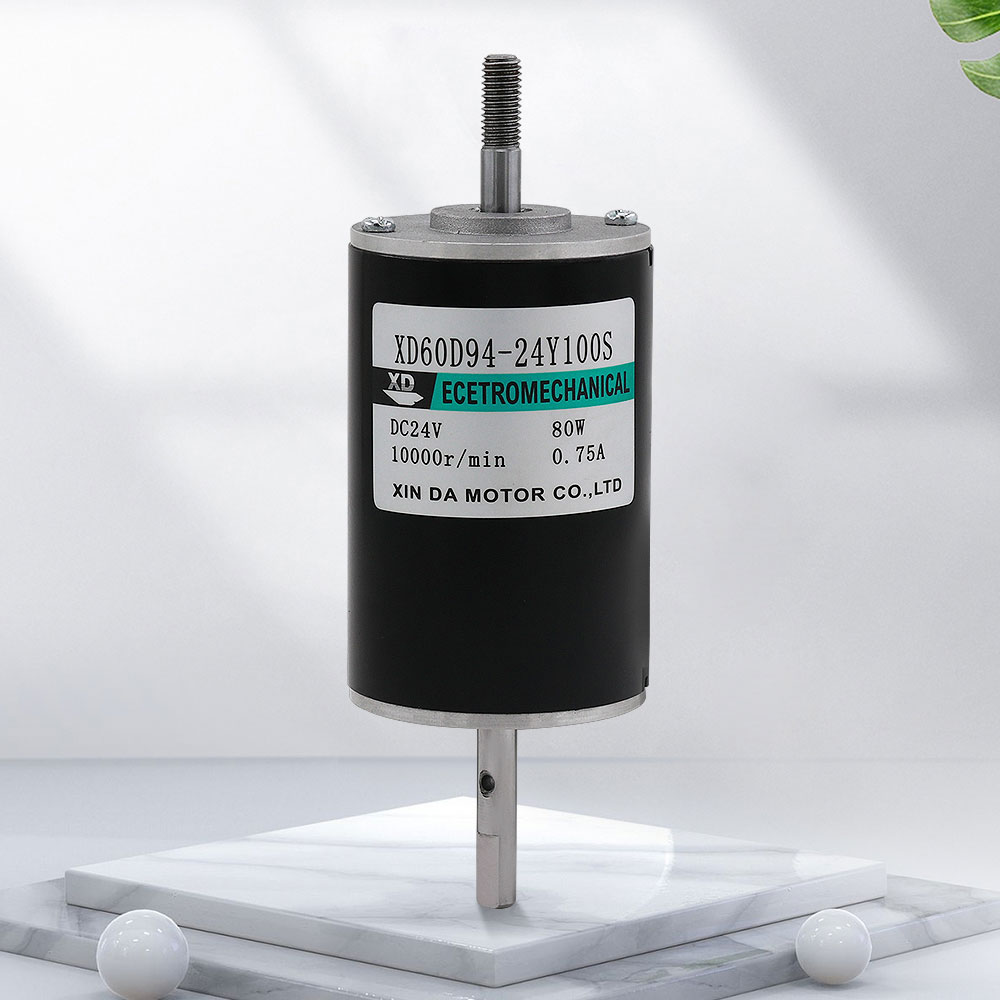

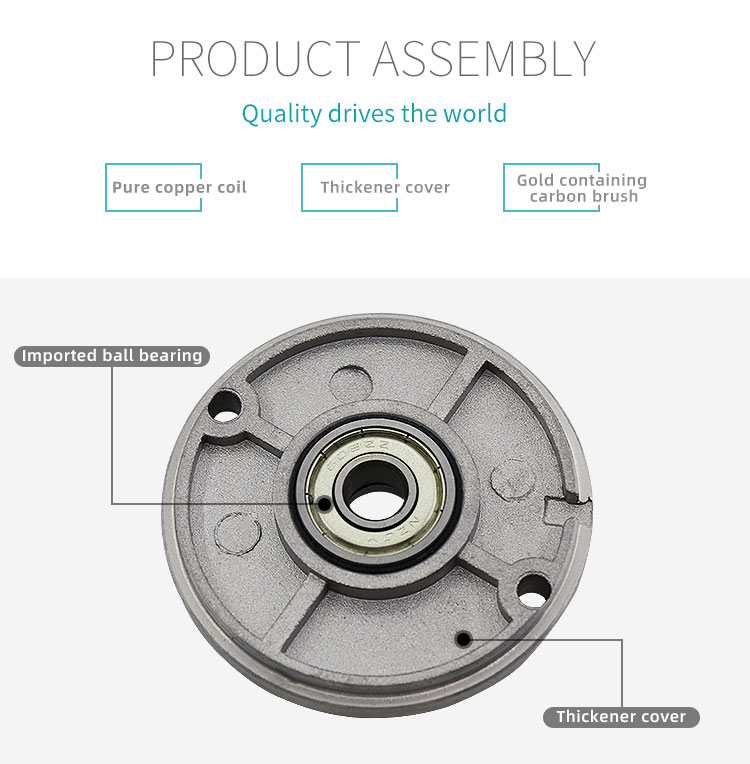

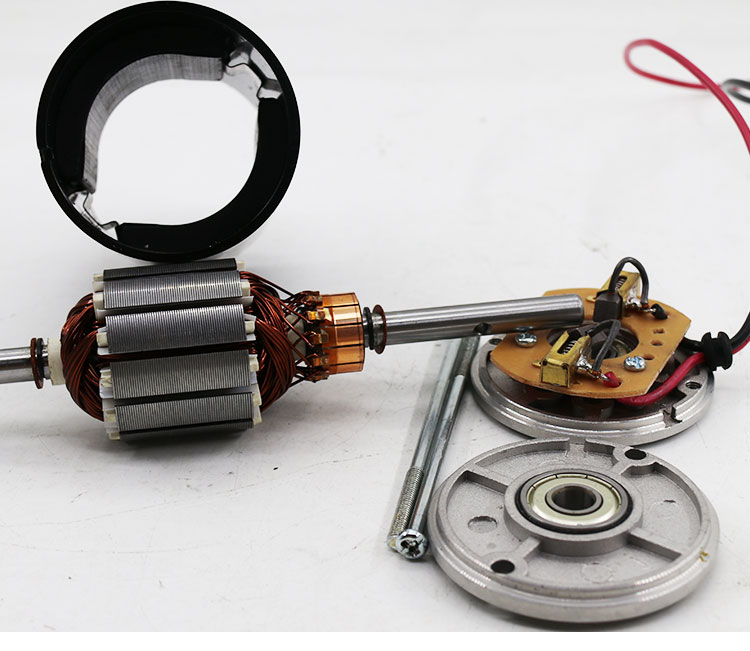

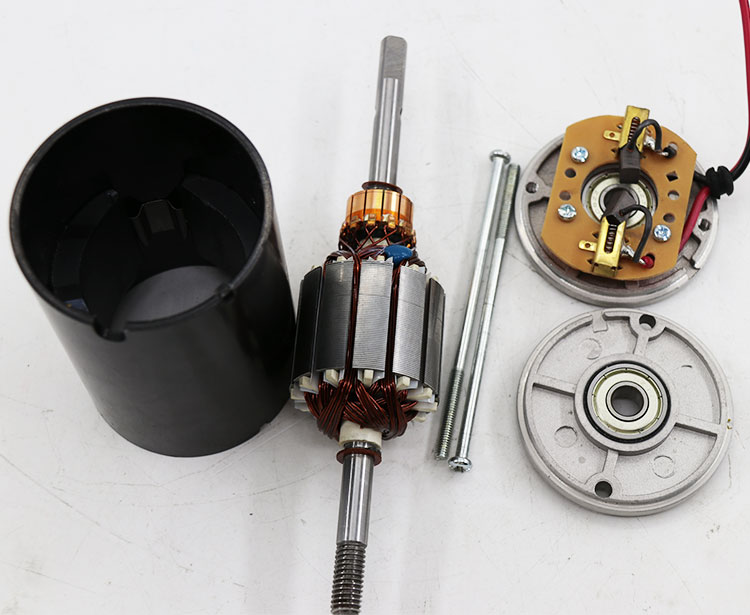

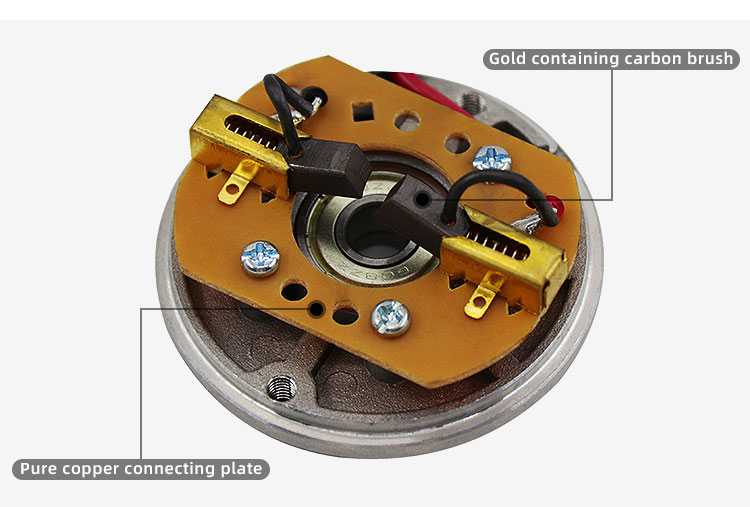

Details Images

Specification

Name	Permanent magnet DC high speed motor

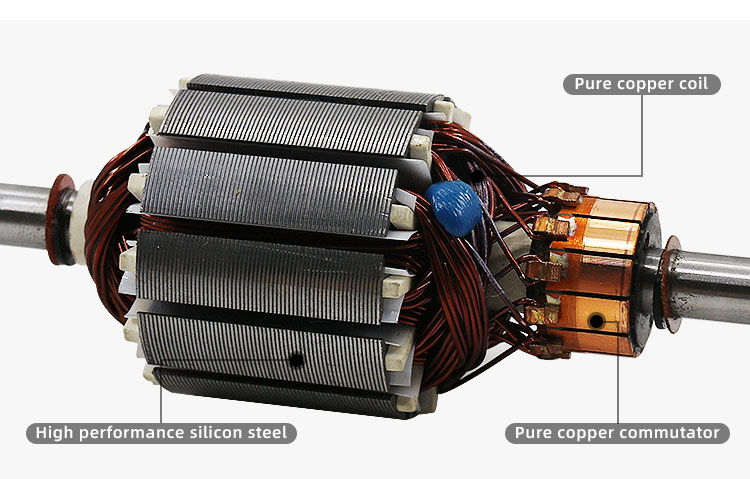

Coil	copper wire
Speed	5000R/10000R
power	80W
Voltage	12V24V
Application	Household appliances, smart home, mechanical and electrical equipment, automation equipment, dishwasher, glue machine, dispensing machine, food machinery, rotary lamp, intelligent window fan, medical machinery, conveying machinery massager

Voltage	No load speed	No load current	Rated speed	Rated torque	Rated torque	Rated torque	Locked rotor current
12V	5000RPM	0.9A	4250RPM	5A	5kgf.cm	8kg	25A
24V	10000RPM	1.2A	8500ROM	10A	10kgf.cm	16kg	55A

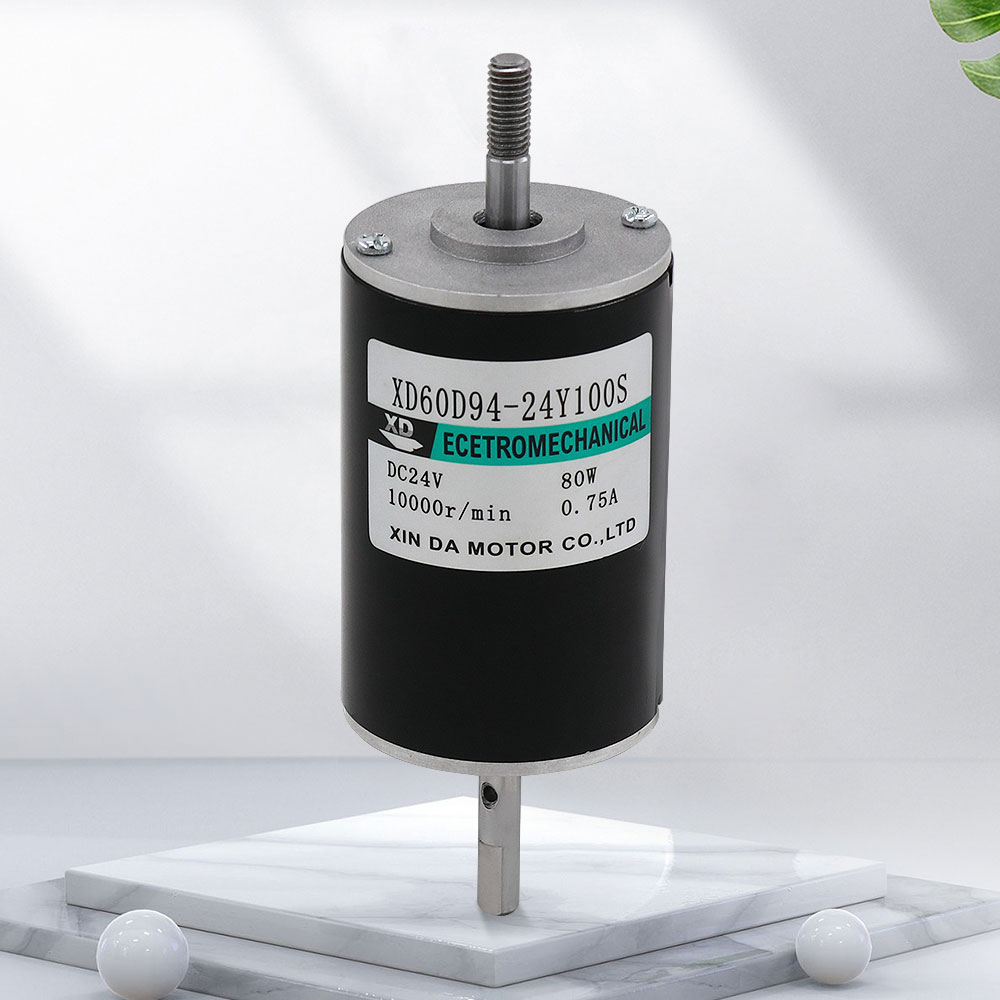

Product display

Widely used

Why Choose Us

1. What kind of motor can you provide?

						A: at present, we mainly provide micro motors and a series of DC reduction motors and AC synchronous motors. Including straight

tooth reduction motor, planetary reduction motor and worm reduction motor. At present, our company focuses on the development of

voltage 6V / 12V / 24V / 220V.

2: How to choose the right motor?

					A: if you have motor pictures or drawings for us to see, or you have detailed specifications such as voltage, speed, torque, motor

size, motor working mode, required service life and noise level, please tell us at any time, so we can recommend appropriate

motors according to your requirements.

3: Do you have custom service for your standard motors?

						A: Yes, we can customize it according to your requirements for voltage, speed, torque and shaft size / shape. If you need to weld

additional wires / cables on the terminals or add connectors, capacitors or EMC, we can also manufacture them.

4. Do you provide some accessories, such as governor, power supply, connector and welding wire of motor?

					A: Yes, we have focused on the motor industry for 16 years. We can provide corresponding accessories according to your needs.


5. Has your motor passed ROHS CCC CE certification?

						A: all our motors comply with ROHS, CCC and CE standards, and all our products are manufactured according to RoHS. And we have

passed China's national compulsory product certification.
