XD70KTYZ Low Price Single Phase 40w 220V Ac Synchronous Gear Slow Speed Motor ac electric car motor 4uf 450v ac motor capacitor

output speed selectable:

2.5 revolutions per minute
5 revolutions per minute
10 revolutions per minute
15 revolutions per minute
20 revolutions per minute
30 revolutions per minute
50 revolutions per minute

Warranty:3months-1year
Place of Origin: China
Brand Name:XD
Model Number:XD70KTYZ
Frequency:50HZ
Phase:Single-phase
Protect Feature:Drip-proof
AC Voltage:220 V
Product Name:AC synchronous motor
Coil:copper wire
Voltage:220 V
Speed:2.5-110r
Power:40W
Maximum torque:137kg.cm
Certification:CCC
Application:General Machinery
Usage:Electric Tool

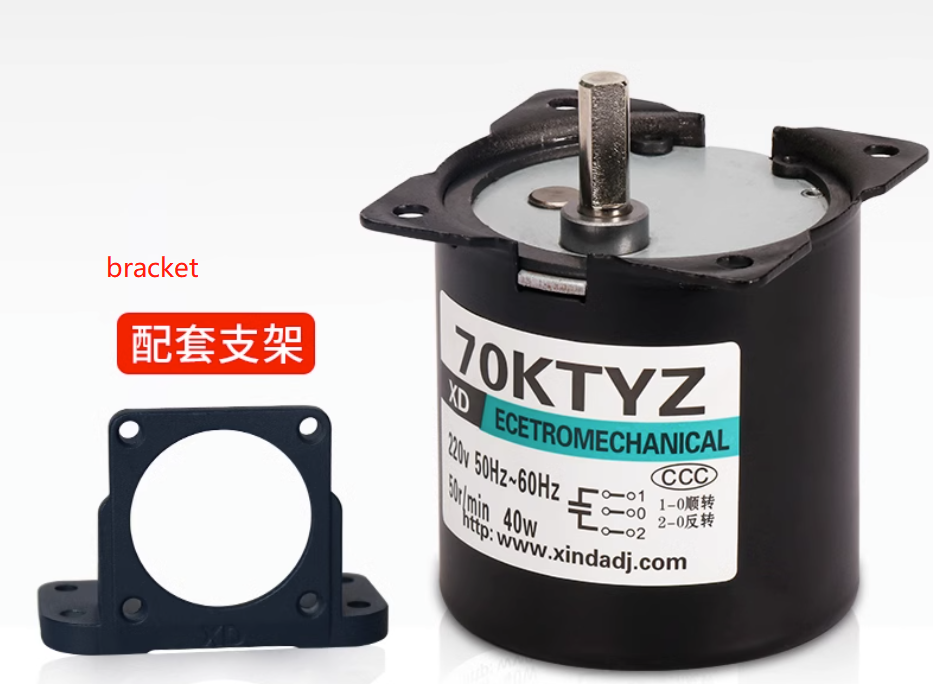

In addition to the motor, other accessories include:: bracket, coupling, positive and negative switch, power cord, etc.

The number of revolutions per minute (rpm/min): 2.5, 5, 10, 15, 20, 25, 30, 40, 50, 60, 80, 110.

These motors are synchronous motors (type KTYZ), fixed speed (no speed adjustment, the motor supports forward and reverse rotation, synchronous motors have various models, 49KTYZ, 50KTYZ, 60KTYZ, 68KTYZ, 70KTYZ, 80KTYZ (the number represents the seat number) The larger the seat number, the greater the power of the motor, the greater the weight can be driven. Voltage: 220V. customization, bulk can contact customer service: Lukim Liu +86 18606382728, email: sales@xdmotor.tech

This motor mainly used in: instrumentation, automation control, over glue machine, stage lamps and lanterns, advertising and exhibition equipment, head, various valves, scientific research facilities, sports apparatus, curtain automatic control, soft towel machine, automatic regulator curtain machine, rotating antenna, fiber optic Christmas lights, fiber optic flowers, stage lights, seascape lights, rotating lamps and lanterns, stage lights, electric dining table, electric model, electric advertising painting, electric shelf, automatic turntable ware, dishwasher, scientific and educational instruments, GS-TH10 (oil and smoke) peristaltic pump, monitor head, electric machinery, heating and cooling valves, automatic instruments and meters, electric advertising, mahjong table, screen machine, over plastic machine, money counting machine, barbecue equipment, electric curtain, remote control curtain, electric opening and closing curtain, electric canopy curtain, outdoor awning, aluminum blinds, electric lifting curtain, electric remote control curtain, electric ticket passing device and All small power low constant speed devices.

Six Features of Xinda Motors

-Forward and reverse steering
-One year warranty
-Over-temperature protection
-Metal Gear
-High quality magnetic tile
-Pure copper coil

Brand Xinda Motor
Model XD-70KTYZ
Name AC synchronous motor
Speed 2.5-110rpm
Voltage AC 220V
Current 0.2A
Motor size 70*70mm
Shaft size 8*20mm
Whether to adjust the speed or not Cannot adjust the speed
Whether forward and reverse can be forward and reverse
Power 40W
Weight 700g

High-quality steel teeth, high torque
16 years of motor manufacturers, we promise that the motors we sell are original genuine new products, our motors use high-quality steel teeth, refusing to use the world's common powder gears, the motor works with greater torque, longer life!


High-quality steel teeth front
The surface has a knife pattern, stable fit in place, easy to maintain, high torque

High quality magnetic tile with high torque
High-strength tiles with stronger magnetic field for greater torque and more power
Zone

Reduce energy consumption, stronger wear resistance, can greatly improve the service life of the motor, high price, cost controllable.
L2200GS high quality magnetic tile, permanent magnet ferrite temperature coefficient is small, in the high temperature only has good temperature stability

Double Ball Bearing
I use double ball bearings, less friction, thus making the motor friction is smaller, better heat dissipation performance thus greatly reducing the motor performance loss, better working efficiency, more torque.


Double Ball Bearing
Adopting imported double ball bearings, reduce friction motor working sound is smaller, higher efficiency.

Pure copper coils for long life
Higher precision of resistance value, less working noise for smoother operation, smaller temperature coefficient to withstand higher temperature.


High quality pure copper coil
Higher precision of resistance value, less working noise, smoother running, smaller temperature coefficient.

Full metal teeth
Not easy to break teeth Long life span
The gears are all metal gears, heat-treated at 45°C, which are smooth, wear-resistant, not easy to break teeth, and have a large transmission torque.

Pure Copper Coil
The coils are made of pure copper coils, which are more conductive, high temperature resistant, and have a service life of more than 6,000 hours.

Motor usage:

-Channel Gate
-Food Machinery
-Rocking car
-Vending Machine
-Sweeper
-Packaging Machinery

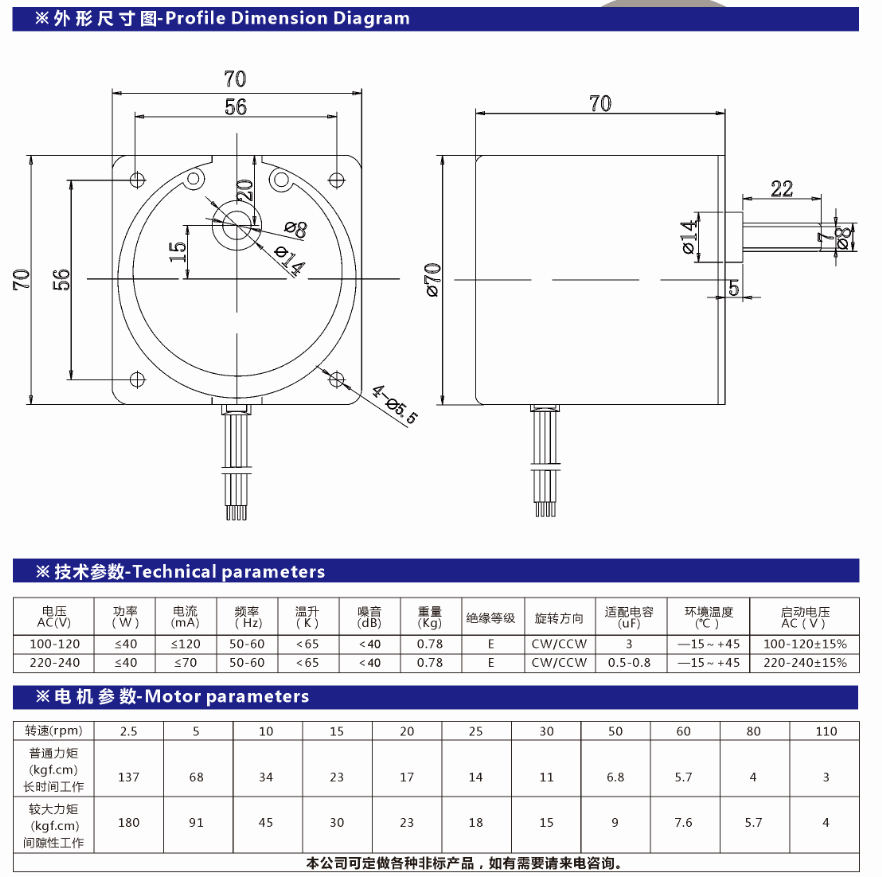

Specification
