AC motor 220v small low speed slow forward and reverse micro permanent magnet synchronous electric motor gear reducer
Permanent magnet AC synchronous motor
Full metal gears, pure copper coils, high quality magnetic tiles, large torque
Youtube video for 68ktyz:
https://youtube.com/shorts/Mz5GFd3hR7I?feature=share
https://youtube.com/shorts/x8dQFw5bFDw?feature=share
Warranty:3months-1year
Place of Origin: China
Brand Name:XD
Model Number:XD68KTYZ
Frequency:50HZ
Phase:Single-phase
AC Voltage:220 V
Efficiency:IE 1
Product Name:AC synchronous motor
Coil:copper wire
Voltage:220 V
Speed:2.5-110r
Power:28W
Maximum torque:60kg.cm
Supply Ability - 20000 Piece/Pieces per Month
Packaging Details - 1 piece / independent carton, outer packing carton Port -Qingdao
Outlet position:
Center shaft (7mm with hole)
Eccentric shaft (8mm without hole)
Rotation speed:
2.5 revolutions per minute
5 revolutions per minute
10 revolutions per minute
15 revolutions per minute
20 revolutions per minute
30 rpm one minute
50 revolutions per minute
60 rpm per minute
80 rpm per minute
110 rpm
Note: The price is the price of a separate motor, other accessories need to buy separately (such as: bracket, coupling, positive and negative switch, power cord)
Note to buyers: synchronous motor series, the number of revolutions is not the same, the output torque is not the same the greater the speed, the force is relatively small, driven by the weight of the smaller; driven by the weight of the larger. The smaller the speed, the greater the relative force,
Motor outlet position selectable: Center Out Shaft/Eccentric shaft
Center Out Shaft
Eccentric outgoing shaft
The number of revolutions per minute (rpm/min): 2.5, 5, 10, 15, 20, 25, 30, 40, 50, 60, 80, 110.
This kind of motor is synchronous motor (model KTYZ), fixed speed (can not adjust the speed, the motor supports forward and reverse, synchronous motor has many models, 49KTYZ, 50KTYZ, 60KTYZ, 68KTYZ, 70KTYZ, 80KTYZ (the number represents the seat number) The larger the seat number of the motor, the greater the power, the greater the weight that can be driven. Supply voltage:220V. customized, bulk can contact customer service. Tel: +86 18606382728.
The motor XD68ktyz is mainly used in: Instrumentation, automation control, glue machine, stage lighting, advertising and exhibition equipment, head, all kinds of valves, scientific research facilities, sports equipment, curtain automatic control, soft towel machine, automatic pressure regulator curtain machine, rotating antenna, fiber-optic Christmas lights, fiber-optic flowers, stage lights, seascape lights, rotating lamps and lanterns, stage lights, electric dining table, electric models, electric advertising paintings, electric shelves, automatic carousel Electric table, electric model, electric advertising painting, electric shelves, automatic turntable, dishwasher, science and education instruments, GS-TH10 (fume) peristaltic pump, monitor head, electric machinery, heating and cooling through the valve, automation instruments and meters, electric advertising, mahjong table, screen machine, over-plasticizer, banknote counting machine, barbecue equipment, electric curtains, remote-control curtains, electric curtains, electric opening and closing curtains, electric canopy curtains, outdoor sunshade, aluminum blinds, electric lifting curtains, electric remote-control curtains, electric summons device and All small power low constant speed running equipment.

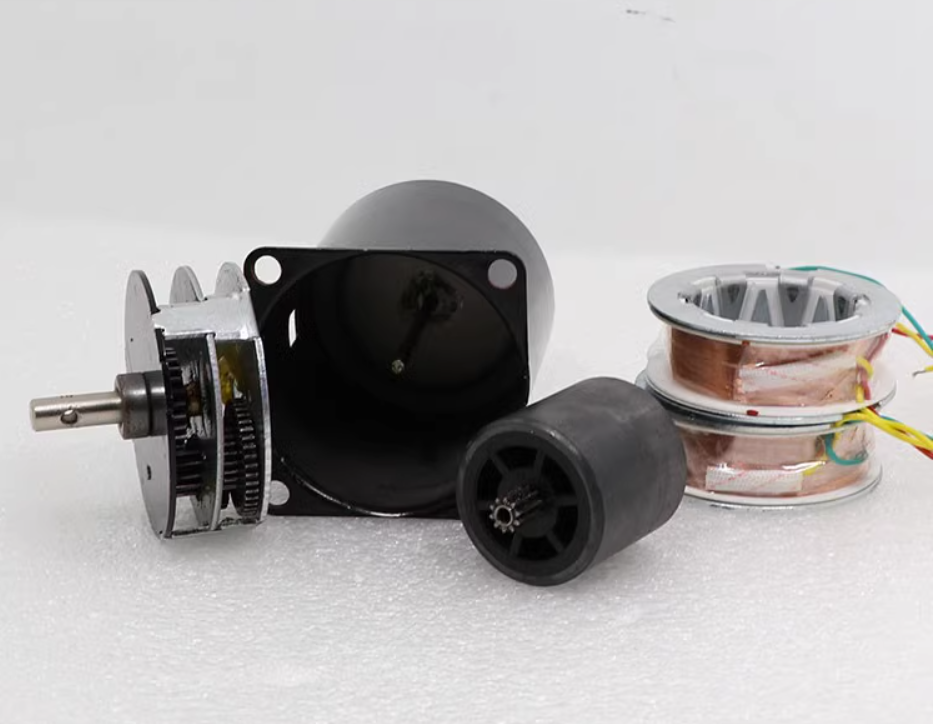

Product internal structure
Xinda motor do every detail by heart
Full metal teeth
Not easy to break teeth Long life span
The gears are all metal gears, heat-treated at 45°C, which are smooth, wear-resistant, not easy to break teeth, and have a large transmission torque.
Pure Copper Coil
100% Pure Copper Coil
Coils are 100% pure copper coils for greater conductivity, low heat generation and long life.
Premium Magnetic Tile L2200GS Premium Magnetic Tile
The temperature coefficient of permanent magnet ferrite is small, only at high temperature has good temperature stability.

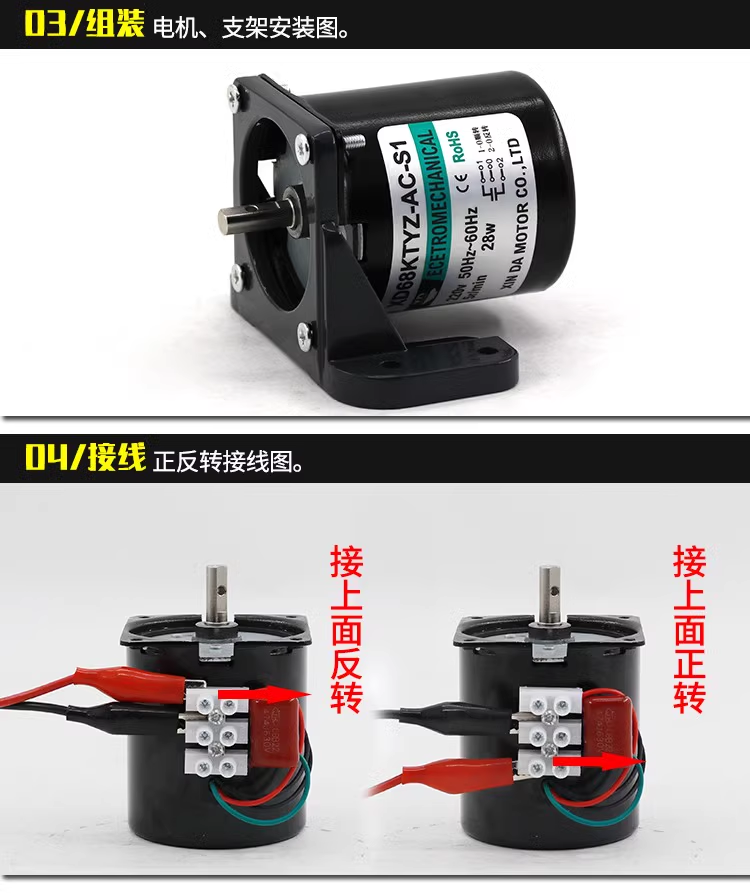

03/Assembly Motor, bracket mounting diagram
04/Wiring Forward and Reverse Wiring Diagrams
Product details show
01/ Outlet shaft D-type outlet shaft, easy to install and not easy to slip.
02/Connection Center shaft with bolt holes at the corners for fixing with the motor bracket.
The new model has a larger capacitance for faster and smoother startup.
New style old style terminals
|
Name
|
AC synchronous motor
|
|
Coil
|
copper wire
|
|
Speed
|
2.5R/5R/10R/15R/20R/30R/50R/60R/80R/110R
|
|
Power
|
28W
|
|
Voltage
|
220V
|
|
Application
|
Household appliances, smart home, mechanical and electrical equipment, automation equipment, dishwasher, glue machine, dispensing
machine, food machinery, rotary lamp, intelligent window fan, medical machinery, conveying machinery
|
