40WB-31YSF DC worm geared motor
Date：2026-02-05 Author：Shandong Xinda Motor Co., Ltd.

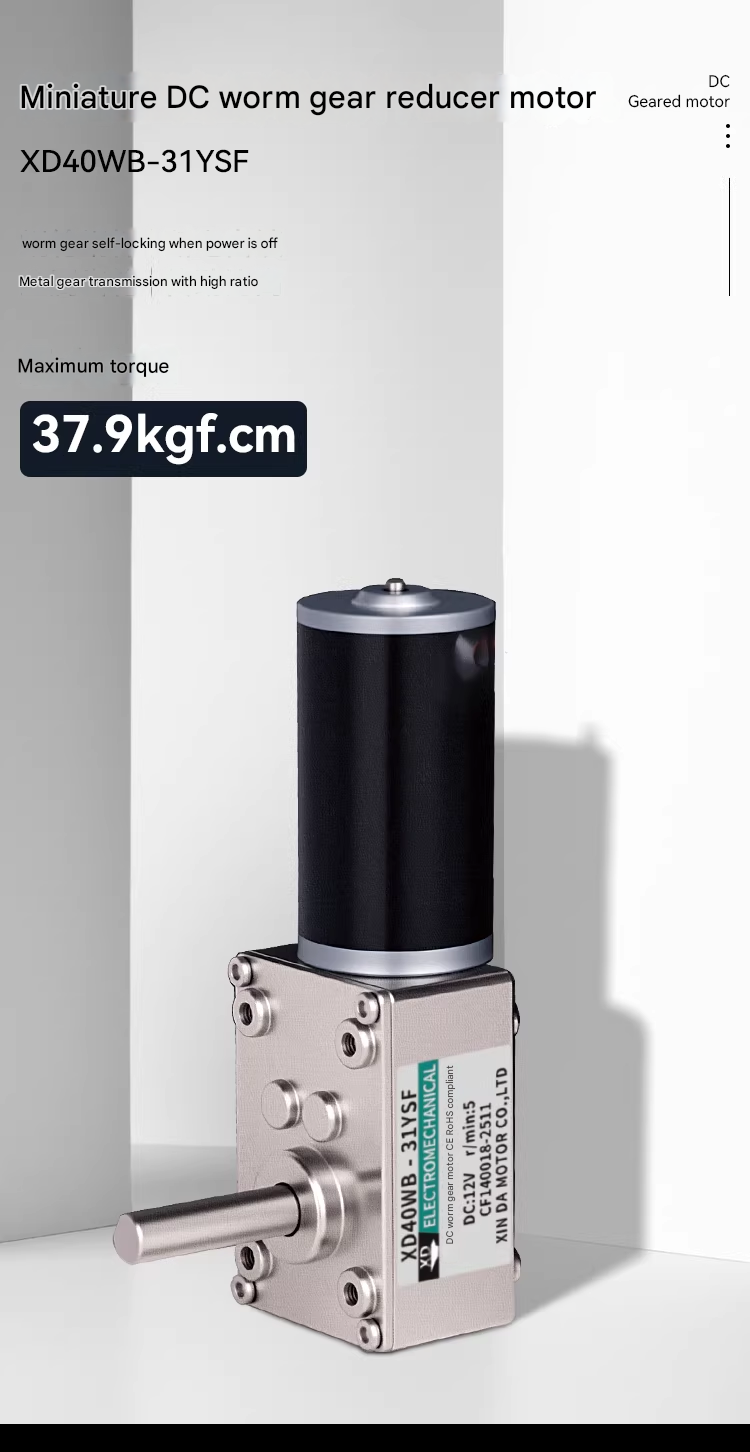

40WB-31YSF DC geared motor with worm gear, 12V24V, self locking, miniature low speed motor

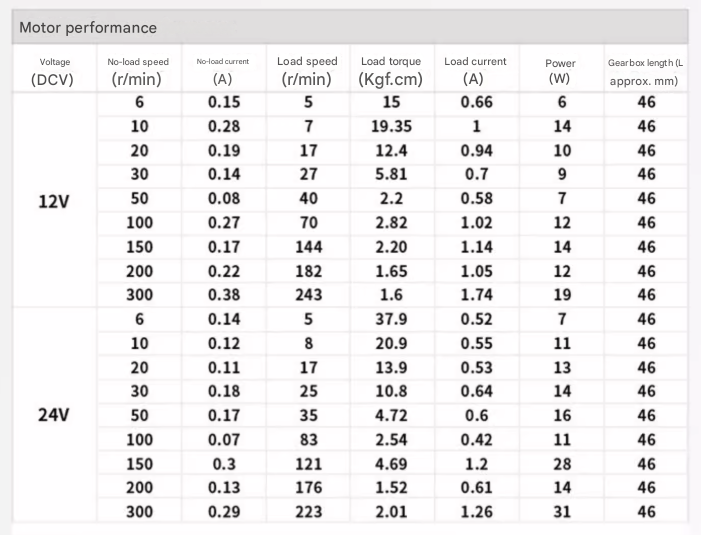

Selection for RPM:
5 revolutions per minute
10 revolutions per minute
20 revolutions per minute
30 revolutions per minute
50 rpm
100 revolutions per minute
150 rpm
200 RPM
300 RPM

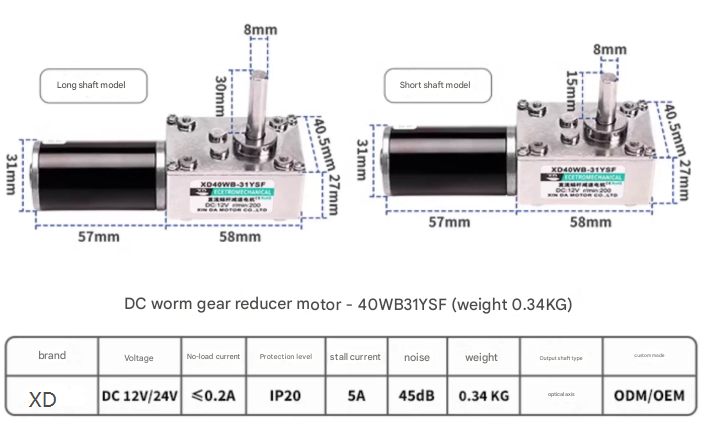

Output shaft length selection:

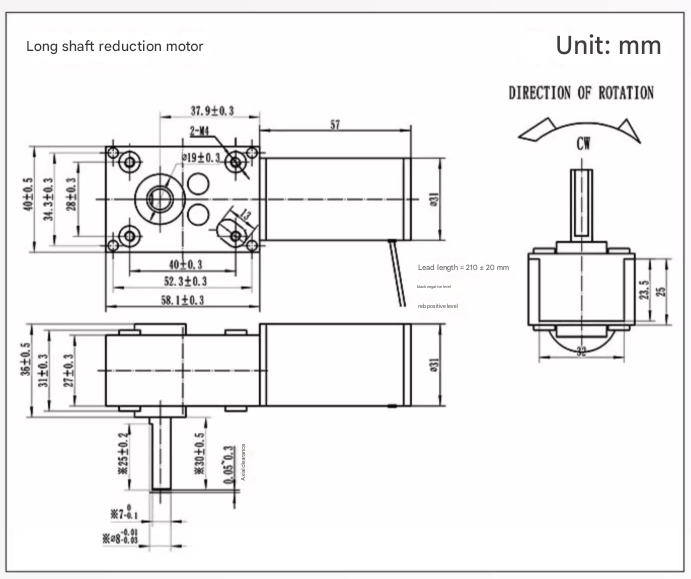

Long wheelbase (30mm)

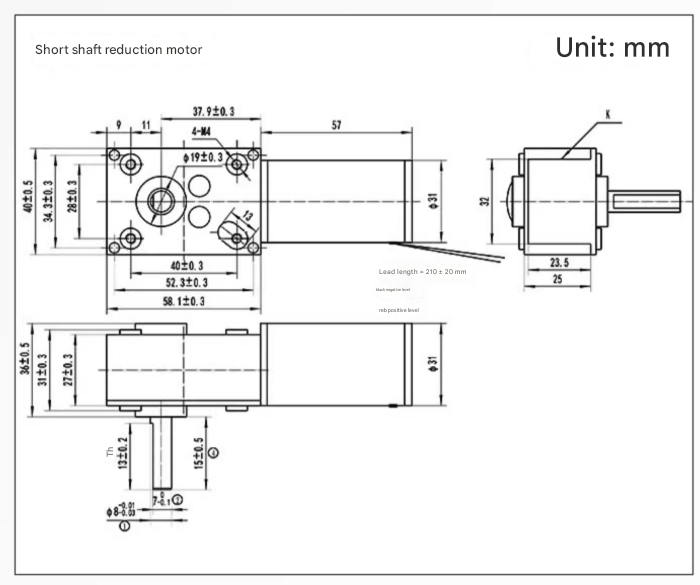

Short shaft (15mm)
Voltage selection:
12V
24V
DC worm gear reducer right angle motor webpage:
https://www.xdmotor.tech/index.php?c=article&id=1613
#gearedmotor #electricmotor #electricengine #dcmotor #motor #wormgear #electricmotor #gearedmotor #dcgearmotor
