Three-phase gear reduction motor
Date：2025-10-15 Author：Shandong Xinda Motor Co., Ltd.
Three-phase gear reduction motor 380V high torque horizontalvertical 750W1500W variable frequency speed brake motor
#threephaseinductionmotor #gearmotor #acmotor
Sort by model

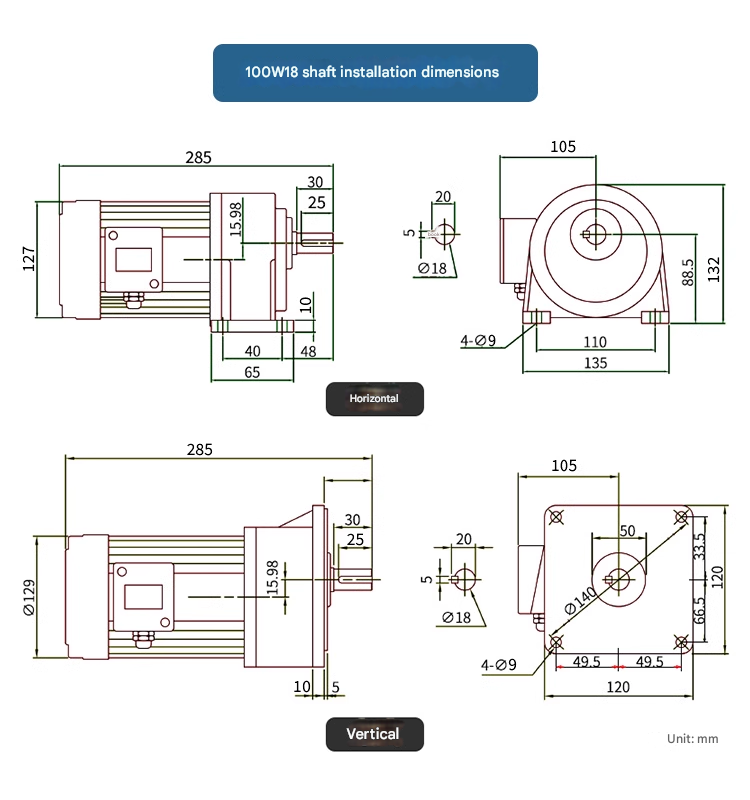

100W (5~120 speed ratio) shaft 18

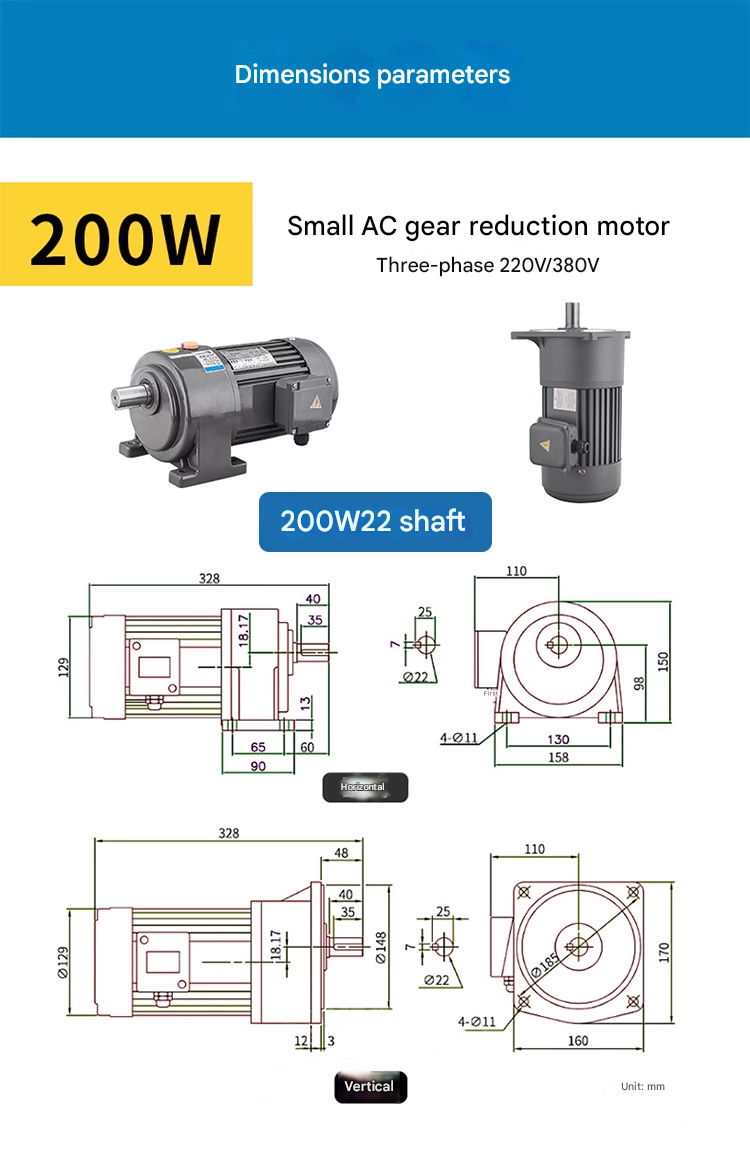

200W reduction motor shaft 22
400W reduction motor (5-120 speed ratio) axis 22
400W (5-200 speed ratio) 28 shafts
750W reduction motor (5-120 speed ratio) axis 28
750W reduction motor (5-200 speed ratio) axis 32
1500W reduction motor (5-25 speed ratio) axis 32
1500W reduction motor (30-120 speed ratio) shaft 32
1500W reduction motor (5-25 speed ratio) axis 40
1500W reduction motor (30-200 speed ratio) shaft 40
2200W reduction motor (5-25 speed ratio) axis 40
2200W reduction motor (30-140 speed ratio) shaft 40
3700W reduction motor (5-120 speed ratio) shaft 50
200W (5-120 speed ratio) shaft 22 + with brake
400W (5-120 speed ratio) shaft 22 + with brake
400W (5-120 speed ratio) shaft 28 + with brake
750W (5-200 speed ratio) shaft 28 + with brake
750W (5-140 speed ratio) shaft 32+ with brake
1500W (5-120 speed ratio) shaft 32+ with brake
1500W (5-200 speed ratio) shaft 40+ with brake
2200W (5-120 speed ratio) shaft 32+ with brake
2200W (5-120 speed ratio) shaft 40+ with brake
3700W (5-120 speed ratio) shaft 50+ with brake
