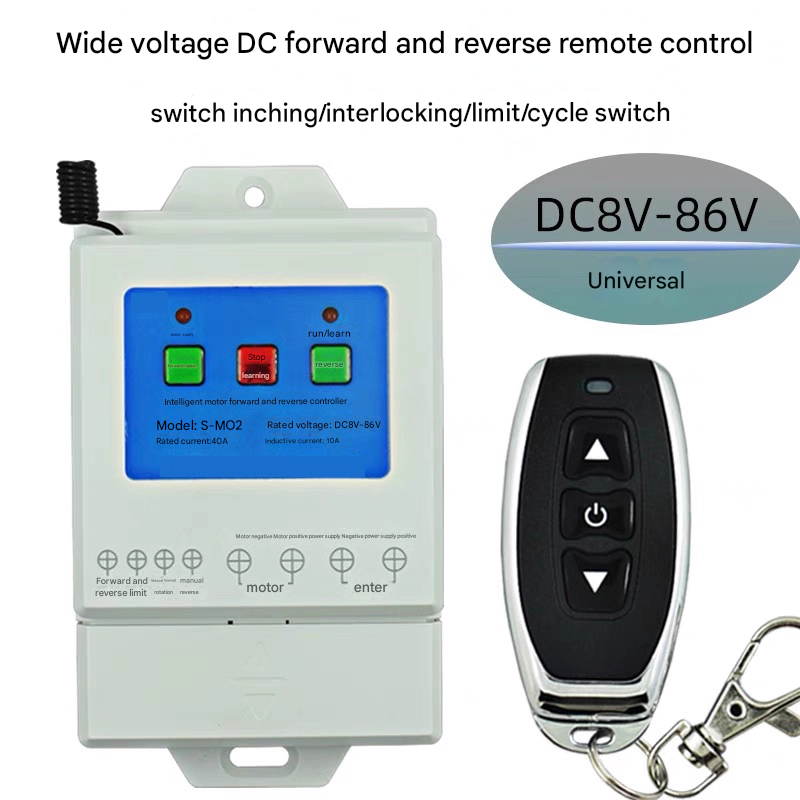

DC motor 12v24v48v universal forward and reverse remote control reverse switch

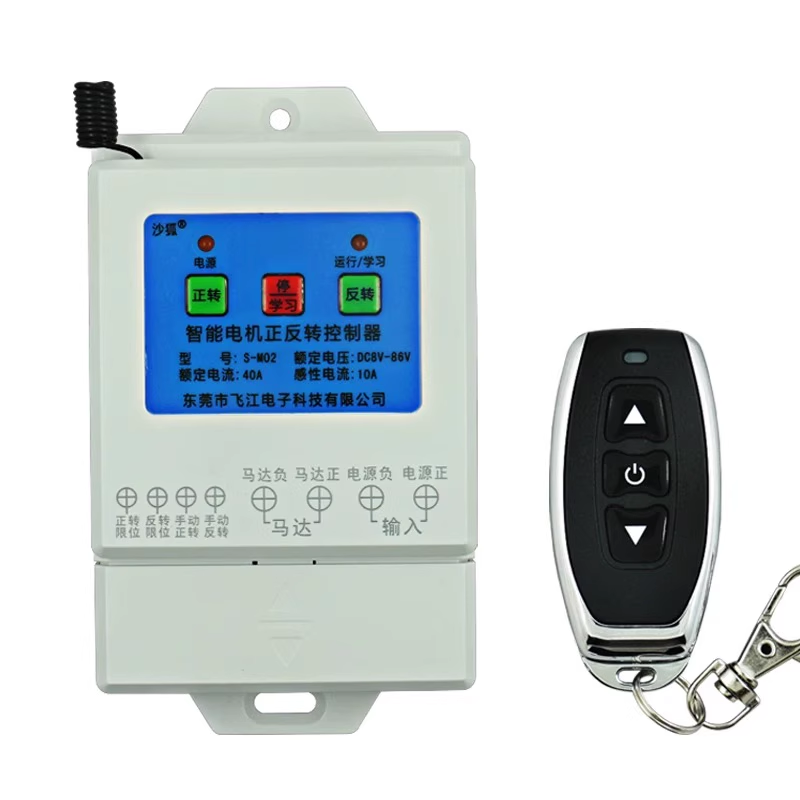

-Controller + 1 black 3-button remote control

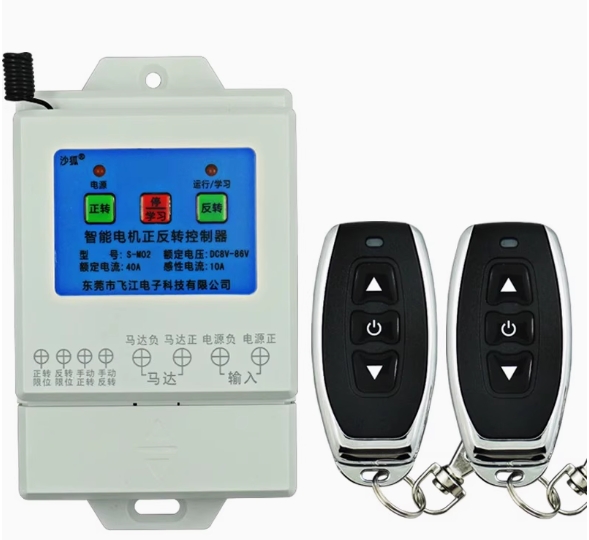

-Controller + 2 black 3-button remote controls

DC motor 12v24v48v universal cw ccw remote control reverse switch webpage:

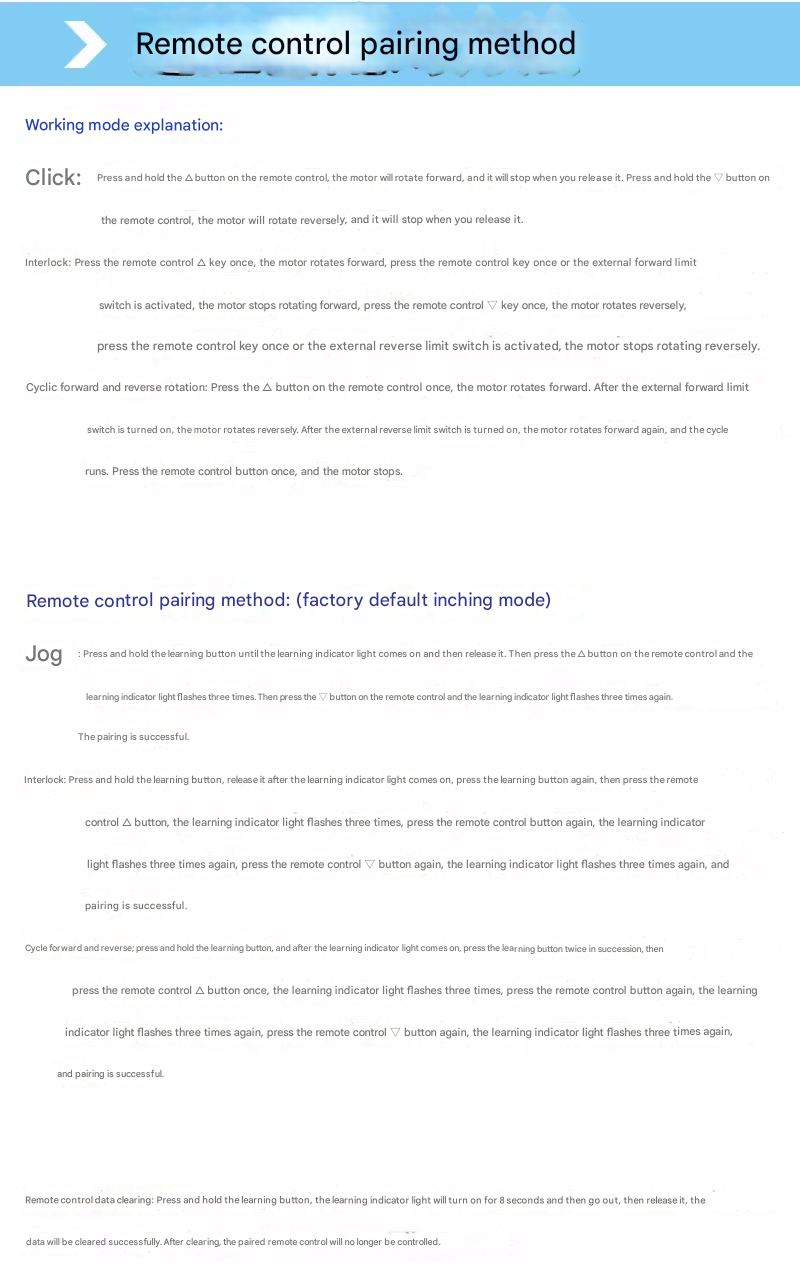

Working mode explanation:

Jog: Press the remote control △ button, the motor rotates forward, and the motor stops after releasing it. Press the remote control V button, the motor reverses, and the motor stops reversing after releasing it.

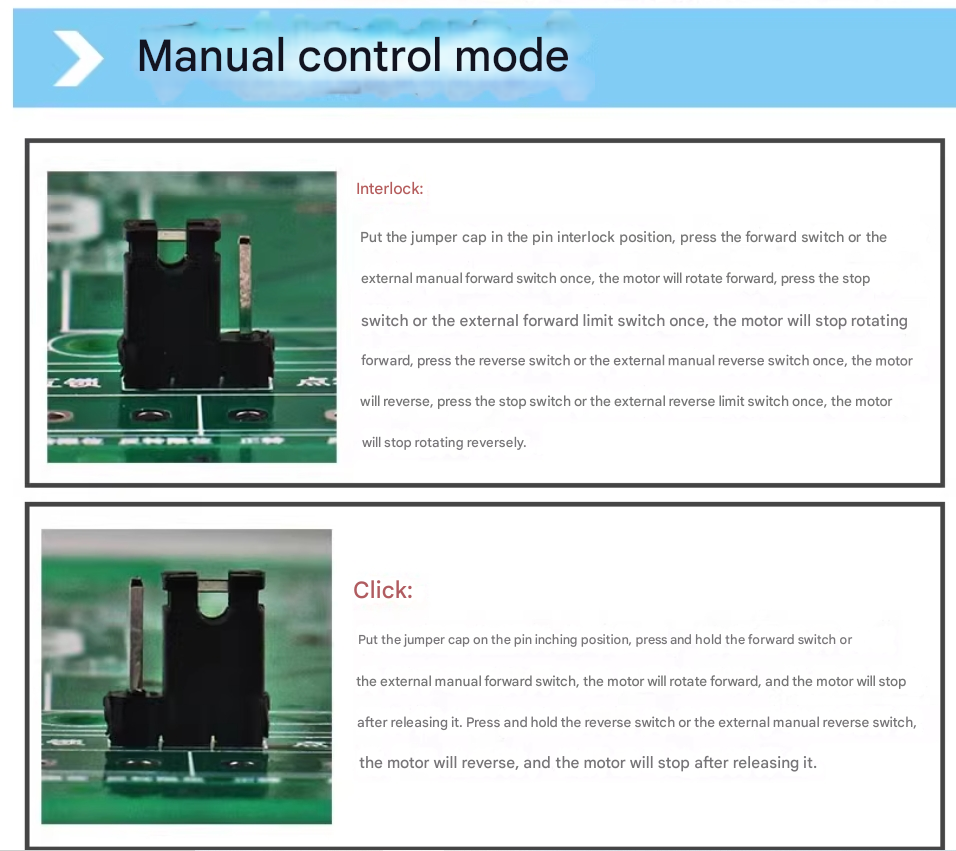

Interlock: Press the remote control button, the motor rotates forward, press the remote control door button or the external forward limit switch, the motor stops forward, press the remote control ▽ button, the motor reverses, press the remote control port button or the external reverse limit switch, the motor stops reversing. Cyclic forward and reverse: Press the remote control key, the motor rotates forward, the external forward limit switch is turned on, the motor reverses, the external reverse limit switch is turned on, the motor rotates forward again, the cycle runs, press the remote control port button, the motor stops.

Remote control pairing method: (factory default jog mode)Jog: Press and hold the learning button, release it after the learning indicator light is on, then press the remote control button, the learning indicator flashes three times, press the remote control ▽ button again, the learning indicator flashes three times,

Pairing is successful.

Interlock: Press and hold the learning button, release it after the learning indicator light is on, press the learning button again, then press the remote control △ button, the learning indicator light flashes three times, press the remote control port button again, the learning indicator light flashes three times again, press the remote control V button again, the learning indicator light flashes three times again, and pairing is successful.

Cycle forward and reverse; press and hold the learning button, press the learning button twice in succession after the learning indicator light is on, then press the remote control △ button once, the learning indicator light flashes three times, press the remote control port button again, the learning indicator light flashes three times again, press the remote control ▽ button again, the learning indicator light flashes three times again, and pairing is successful.

Remote control clear data: Press and hold the learning button, the learning indicator light turns on for 8 seconds and then turns off, then release it, clear data successfully, after clearing, the paired remote control is no longer controlled.
