5D120-12GU-30S

Date:2025-01-07   Author:XINDA MOTOR
5D120-12GU-30S

120W DC brushed reduction motor 12V24V forward and reverse high torque slow speed permanent magnet adjustable speed gear motor


sort by combination:

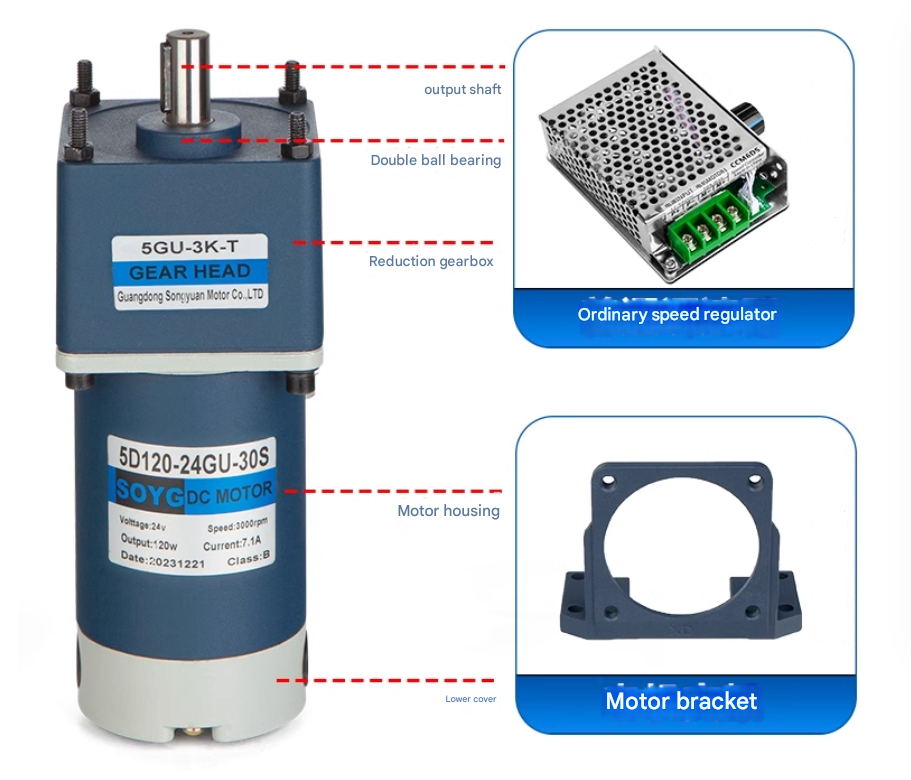

Single motor (enhanced) 15mm shaft

Single motor (reinforced) + bracket 15mm shaft

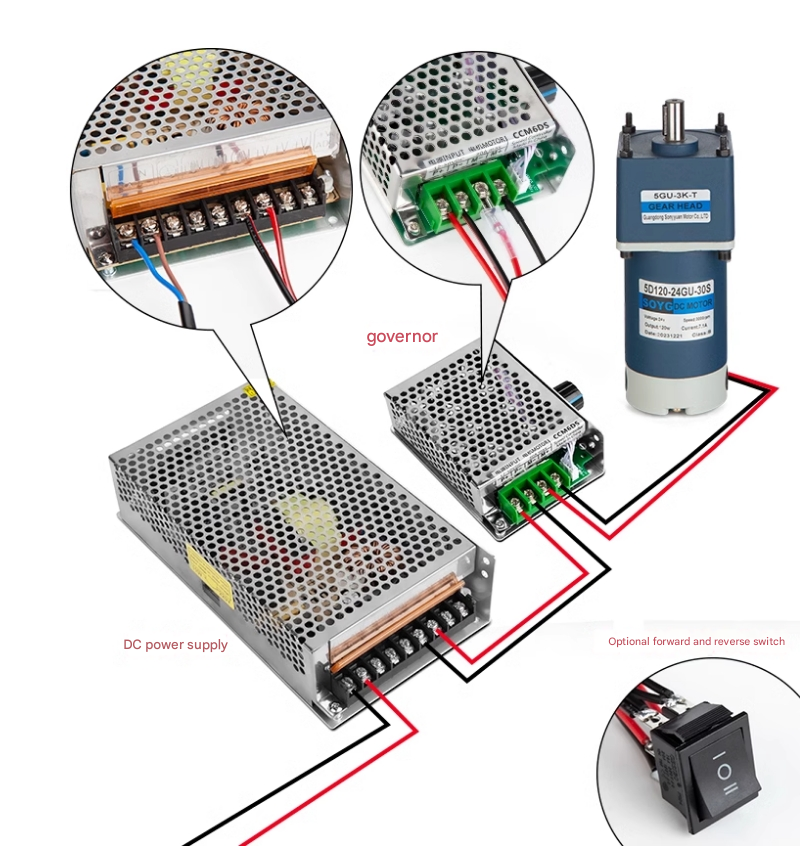

Single motor (reinforced) + bracket + speed regulator 15mm shaft

Single motor (enhanced) + bracket + speed regulator + power supply cord


Voltage:

12V

24V


Output speed:

0-10 rpm

0-20 rpm

0-30 rpm

0-50 rpm

0-80 rpm

0-100 rpm

0-200 rpm

0-300 rpm

0-500 rpm


Parameter information

model 5D120-12GU-30S

Origin Chinese mainland

Voltage 12V

Power supply mode

Direct current
