B3740S

Outer Rotor

Output Power : 10W~50W

Weight : 170g ( Approx.)

Outer rotor

Brushless DC Motor-Typical Application

Brushless DC Motor - Typical Applications

Rehabilitation Apparatus: Fascia Gun, Massager

Rehabilitation equipment: fascia gun, massager

Industry & Business Equipment: Pumps, Valves, Fan, Linear Direct Drive

Industrial and commercial equipment: pumps, valves, fans, linear direct drives

Others: Micro Direct Drive PTZ(pan-tilt-zoom)

Others: Small direct drive gimbal

Model

model

Voltage (V)

No Load

Rated Load

Stall

Operating Range

Rated

Speed (rpm)

Current (A)

Torque (mNm)

Speed (rpm)

Current (A)

Output P. (W)

Torque (mNm)

Current (A)

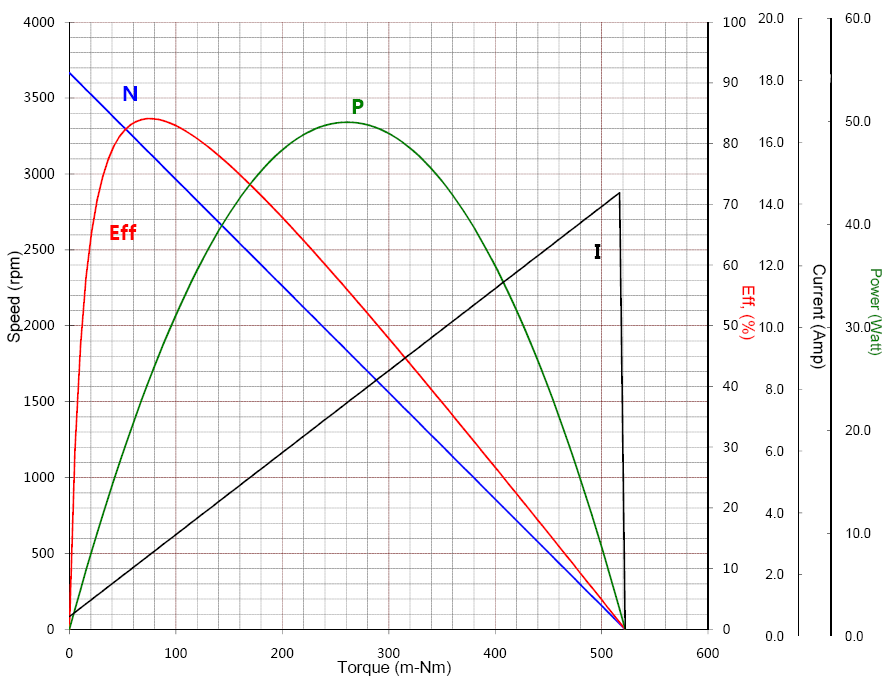

B3740S-S01

8-26

12

3667

0.42

90

3035

2.85

28.6

522

4.5

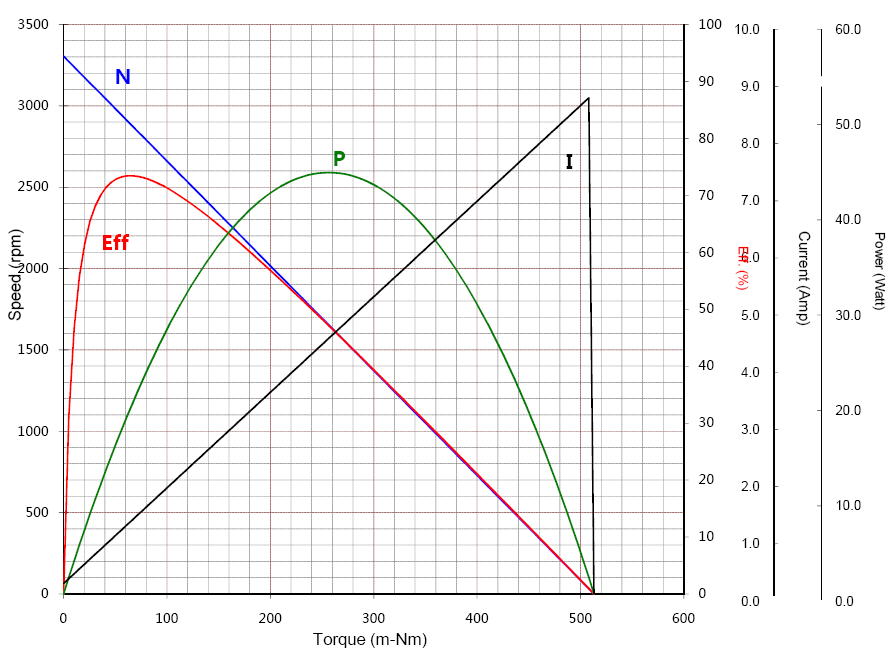

B3740S-S02

8-26

twenty one

3304

0.18

90

2724

1.69

25.7

513

4.5

Notice: Data in this typical specification sheet are for other certain customer. Voltage, rated torque, speed, current, power and shaft extension feature & dimension can be changed to meet customer specific requirement.

Note: The above specifications are for specific customers only. Voltage, torque, speed, current, power, output shaft characteristics and dimensions can be adjusted according to customer's special requirements.
