5IK120RGN-C
Date：2024-09-11 Author：XINDA MOTOR
5IK120RGN-C Xinda 120W AC gear reduction motor 220V low speed high torque speed regulating motor slow forward and reverse motor
Speed:
500 revolutions per minute
300 revolutions per minute
200 revolutions per minute
100 revolutions per minute
60 revolutions per minute
50 revolutions per minute
30 revolutions per minute
20 revolutions per minute
10 revolutions per minute
Other speeds customizable
Number of axes:
12 Axis
15 axis
Function:
-Ordinary motor with no brake
-with brake
Parameter information
model 5IK120RGN-C
Origin Chinese mainland
Power supply mode Alternating current
Voltage 220V
Operation speed Low speed motor
Function Type: AC gear motor
Power phases Single-phase motor
Power type: AC motor
Connect the speed regulator to the motor
①Connect the motor and speed regulator: Connect the two ends with stickers facing upwards, and it is complete.

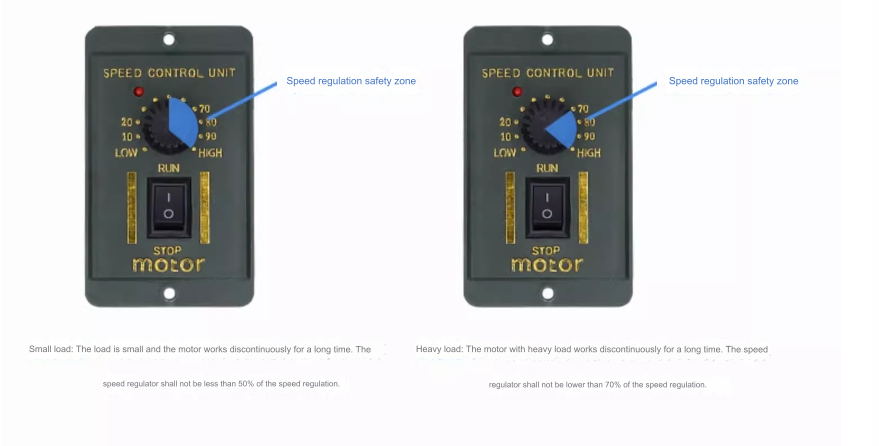

Speed regulation safety range
Q: Why can the speed of the motor only be adjusted to a certain range after it is loaded?A: Because the motor is slowed down by reducing the voltage. After the voltage is reduced, the torque of the motor will also become smaller, and it is very likely to be overloaded.
A: In addition, after the motor speed is slowed down, the cooling fan will also turn slowly, and the cooling effect will become worse. At this time, the heat dissipation will become worse due to the increase in current, and the motor will heat up seriously, which is easy to cause the stator coil insulation to fail and short-circuit and burn the machine.

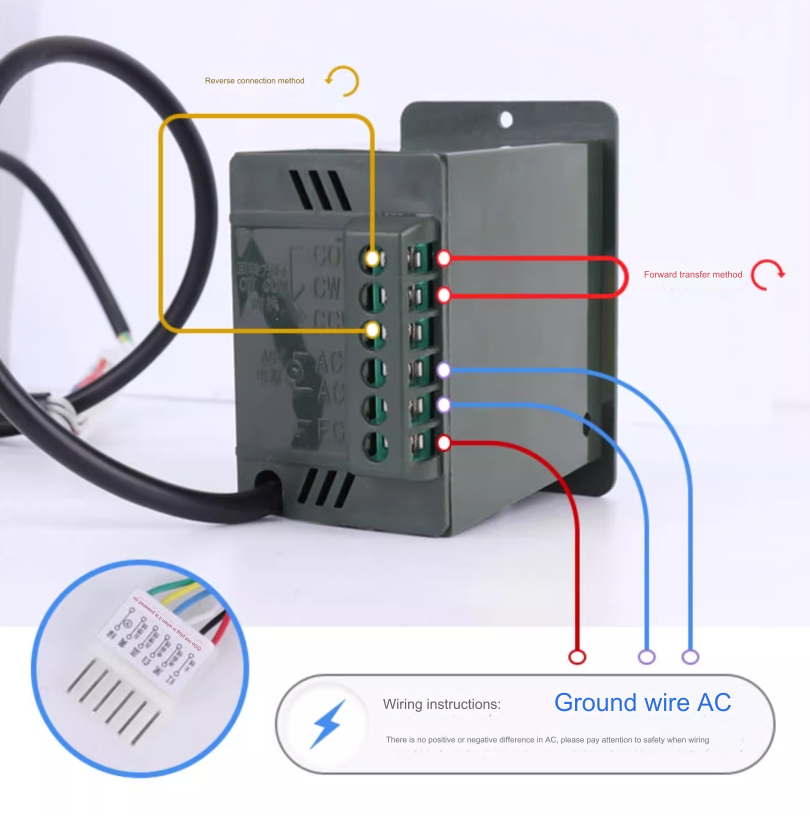

②Connect the speed regulator to AC power: Connect the two AC ports to the power cord and it is complete.
