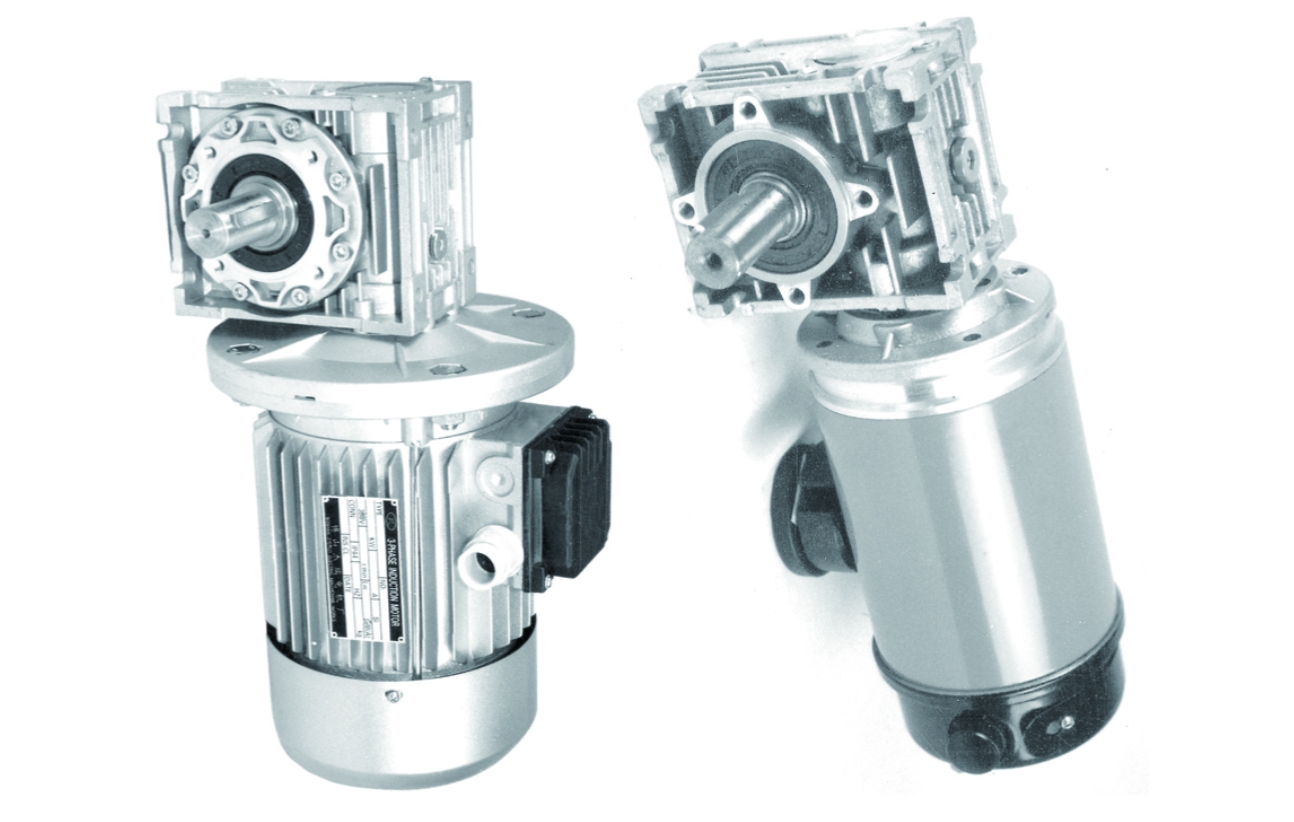

NMRV series worm gear motors are composed of worm gear reducers and various motors (including three-phase AC, single-phase AC, DC servo, permanent magnet DC motors, etc.). The products are in accordance with the parameters of cylindrical worm gears in GB10085-88 and absorb advanced technologies at home and abroad to form a square aluminum alloy box. It has a reasonable structure, beautiful appearance, good heat dissipation performance, and is easy to maintain. This series of motors runs smoothly, has low noise, a large transmission ratio, and a strong carrying capacity. It can be equipped with various types of motors to achieve speed regulation.

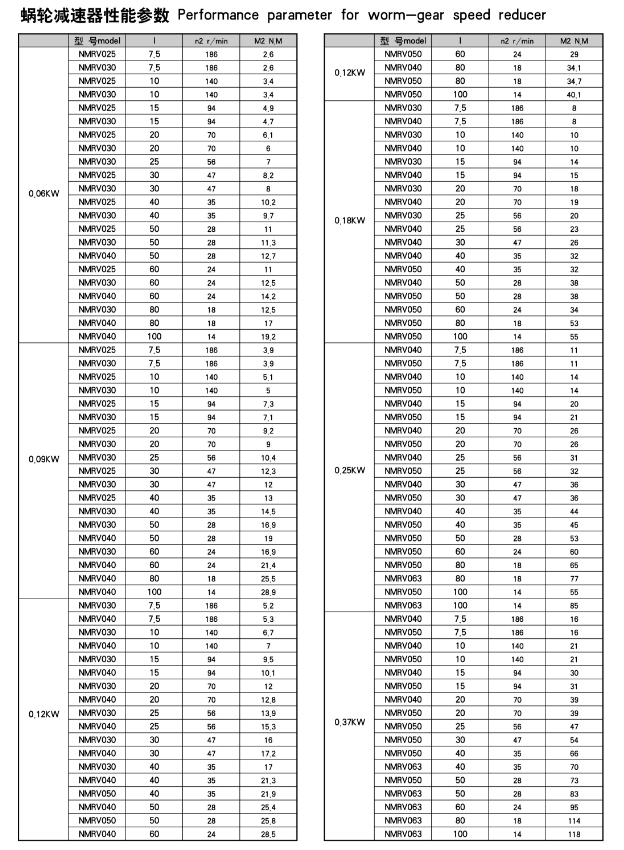

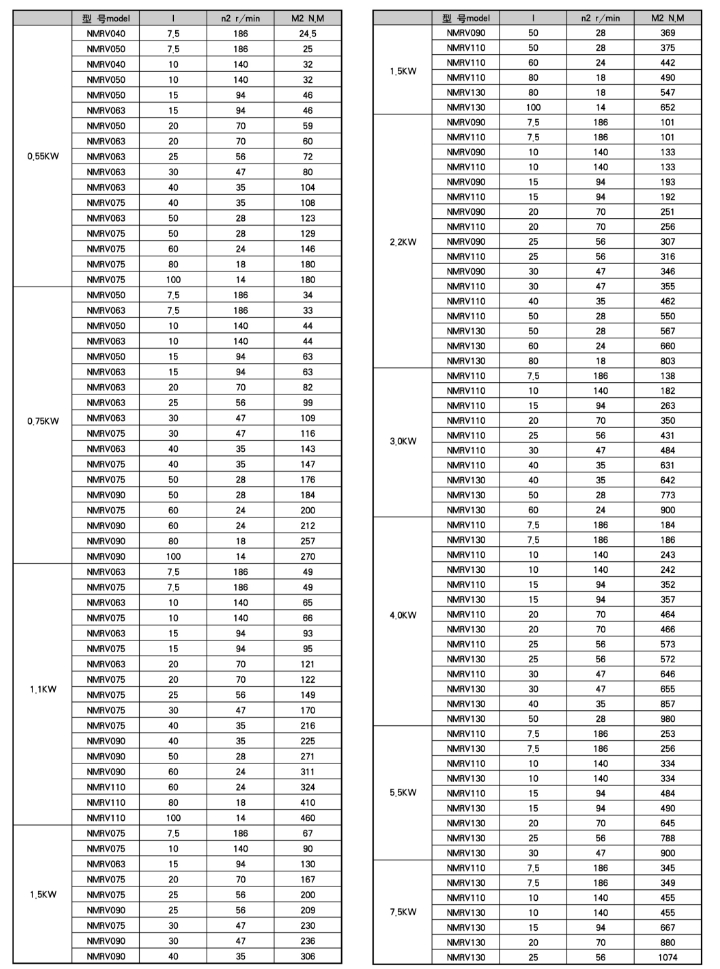

Note: The codes used are as follows: 1-reduction ratio; n2-output speed; M2-output torque; kW-input power (the motor used can be an AC three-phase, single-phase asynchronous motor, or a DC electromagnetic motor or a DC permanent magnet motor).

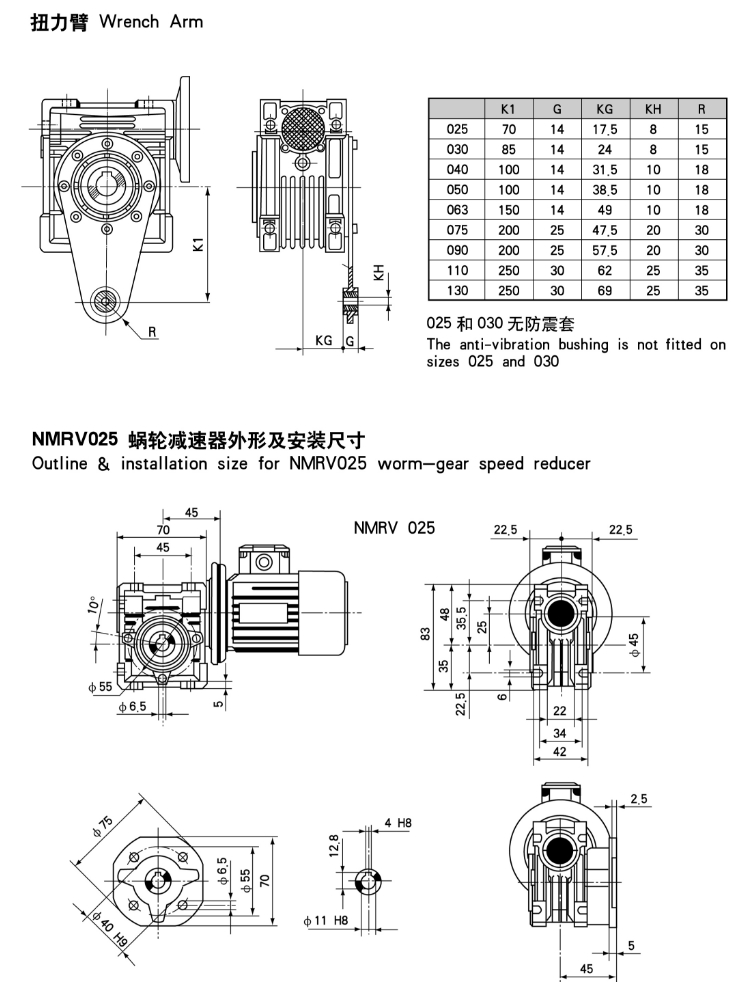

Wrench Arm

Outline & installation size for NMRV025 worm-gear speed reducer

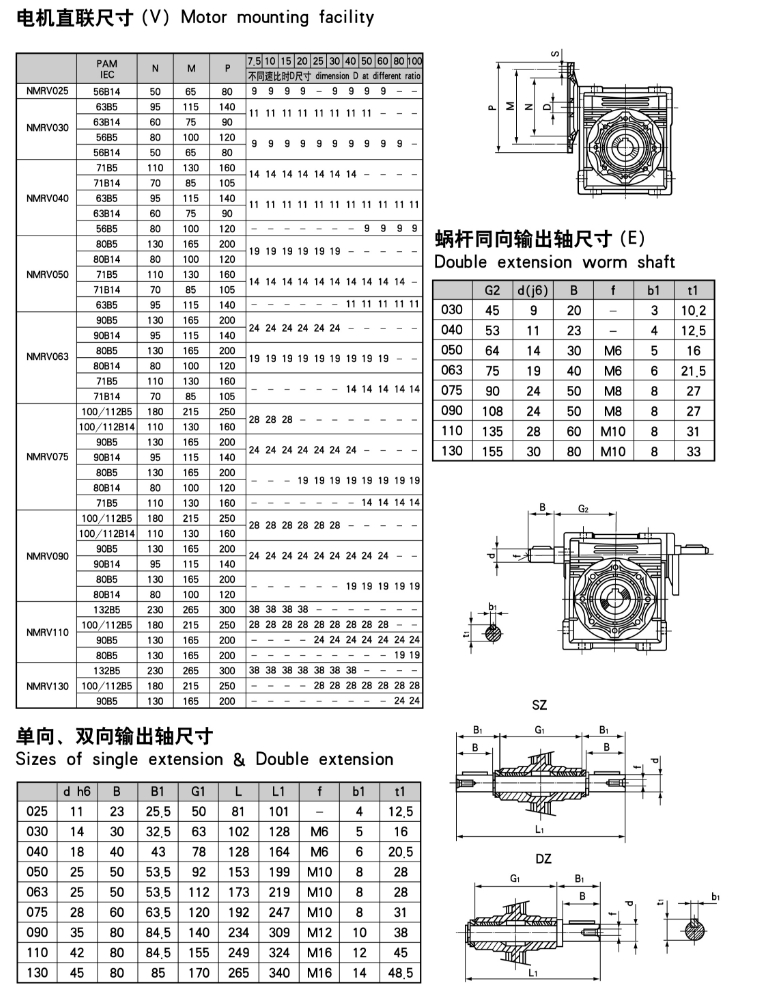

Motor mounting dimension

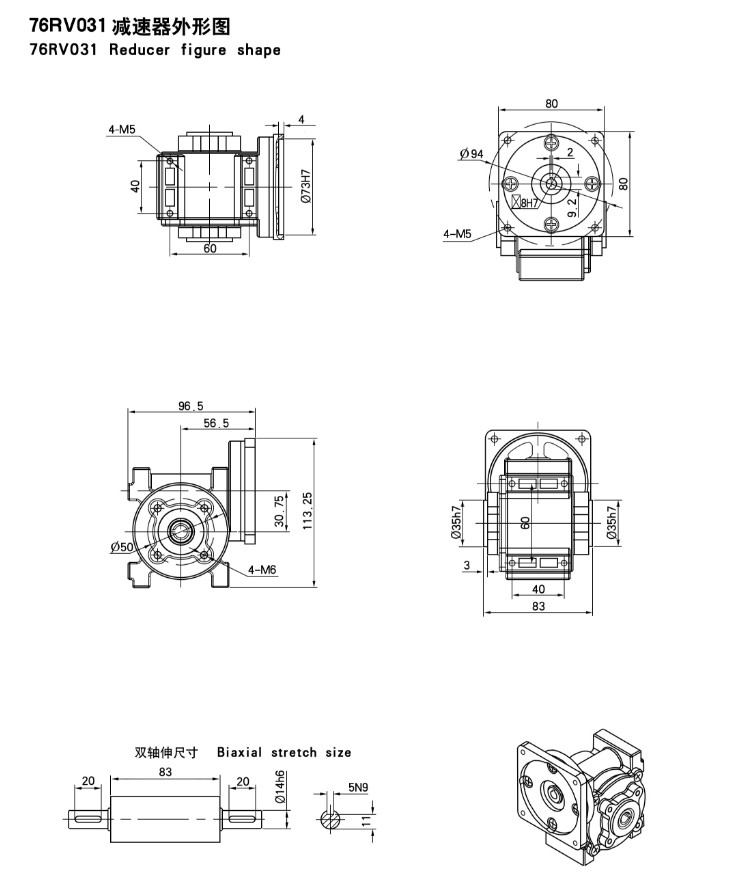

76RV031 Reducer figure shape
