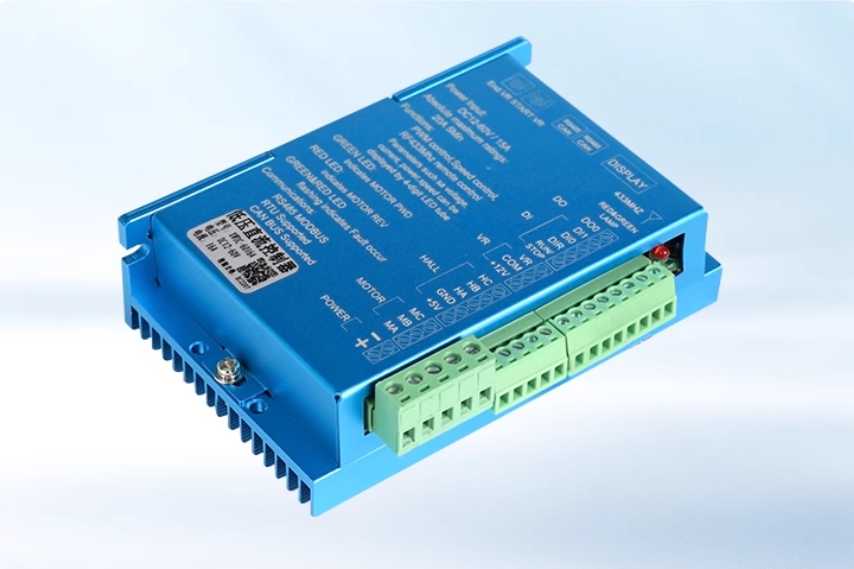

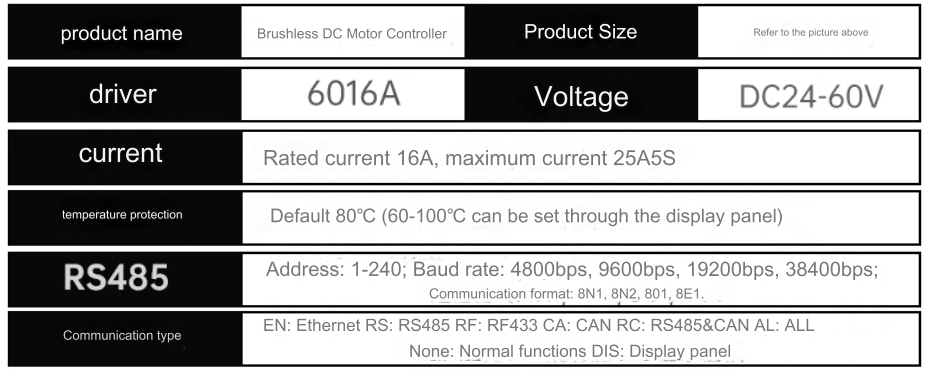

BLDC drive controller

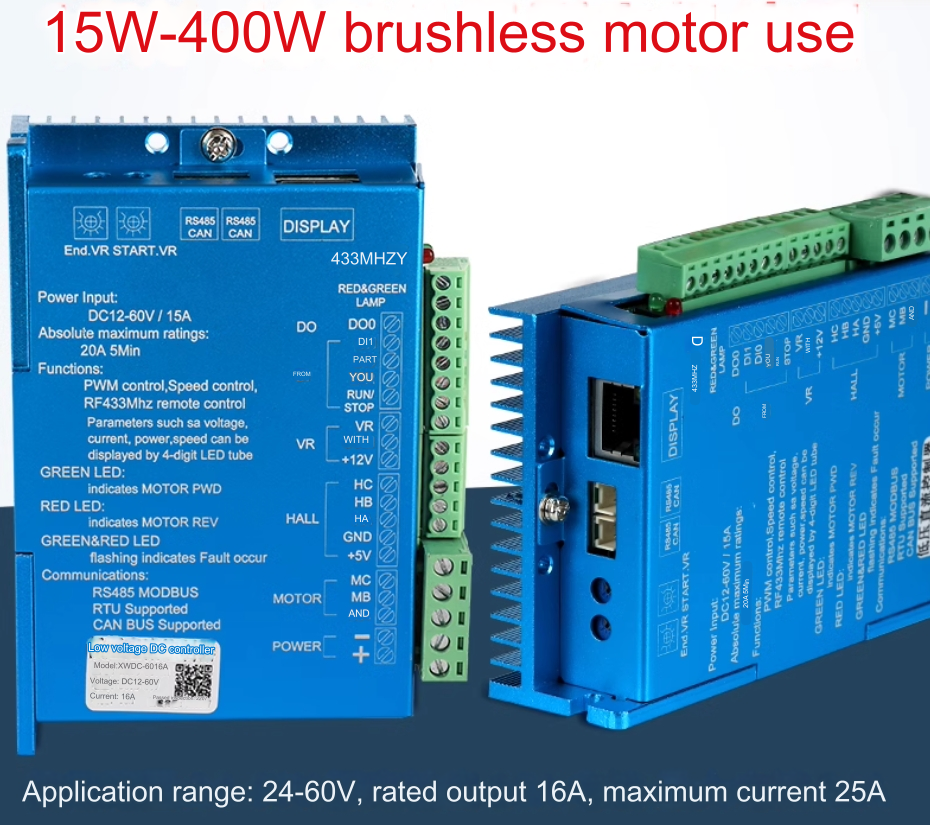

24V60V DC brushless motor controller 15W-400W high power motor 12 brushless motor driver


DC24V-60V brushless motor drive controller
Model: Low voltage brushless DC drive controller
Brand: XD
Power supply mode: DC
Number of phases: single phase

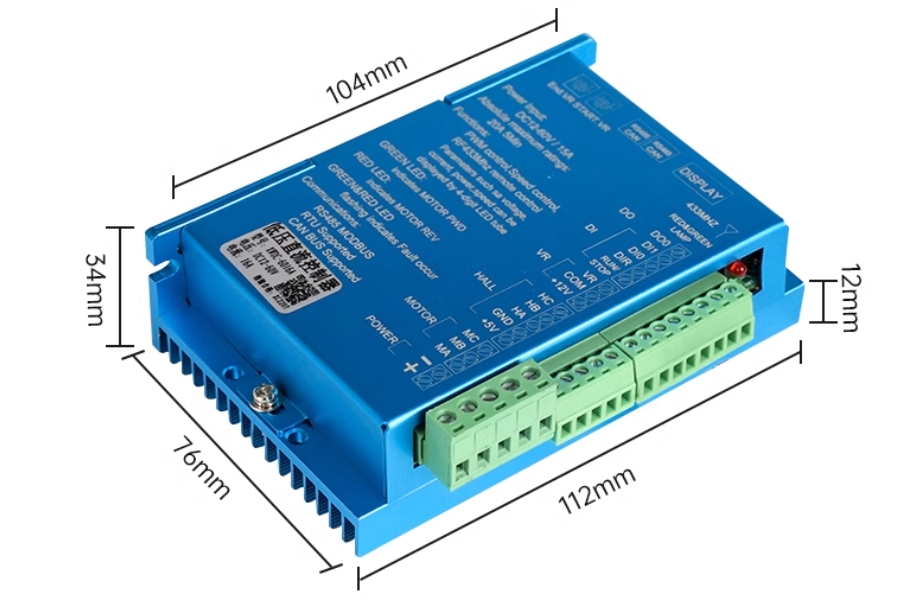

Dimensions: 76x112x34cm
Continuous output current: 15A
Maximum applicable motor capacity: 400W
Input voltage: 24V
Maximum output current: 25A
Compatible motor: DC brushless motor
