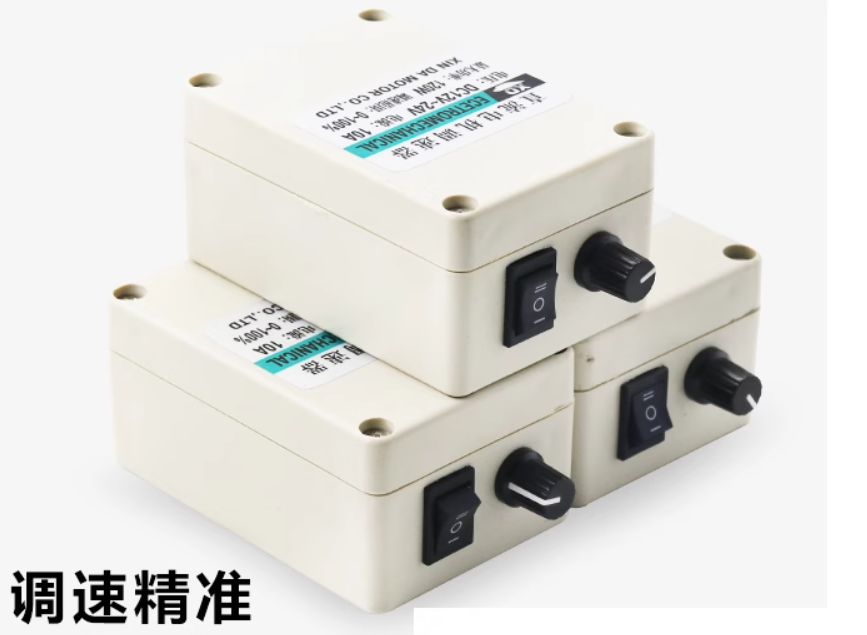

6V-50V DC speed regulator digital display transmission motor speed control switch forward and reverse motor controller box

Brand: XD
Model: Speed control box
Origin: Mainland China
Power supply mode: DC
Classification:
8A DC speed control board,
10A DC with positive and negative speed control board,
10A DC with positive and negative speed control box,
8A conventional digital display speed regulator with remote control,
8A conventional digital display speed regulator,
10A conventional speed control board,
30A conventional speed regulator
30A with forward and reverse speed regulator
30A digital display speed regulator


Voltage: 24V
Model:: Speed control box
Operating speed: speed regulator
Function type:: Control motor
Number of power phases: other
Power supply type:: DC motor

10A DC speed regulator
High-precision imported chip, forward and reverse, adjustable speed

10A speed regulator
DC speed regulator
governor
Can be used as voltage regulator below 120w
Stepless speed regulation
Can be reversed

6V-12V 8A-15A speed regulator

Control power 48W-96W

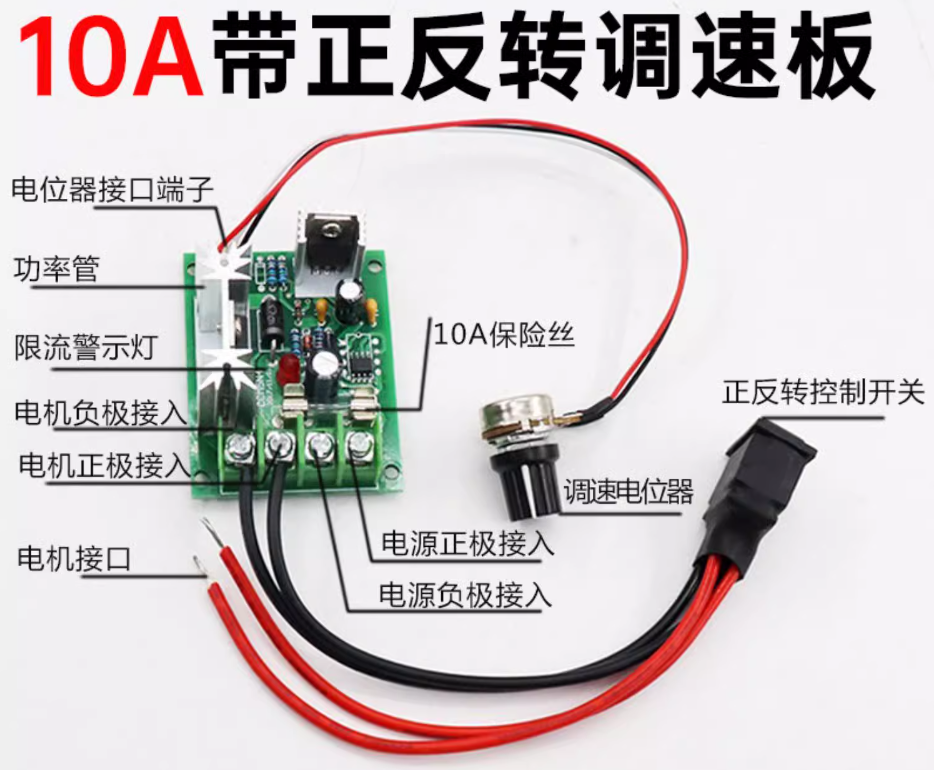

10A with forward and reverse speed control board
Potentiometer interface terminal
Power tube
Current limit warning light
Motor negative pole connection
Motor positive connection
Motor interface
10A fuse
Speed potentiometer
Positive power supply connection
Negative power supply connection
Forward and reverse control switch

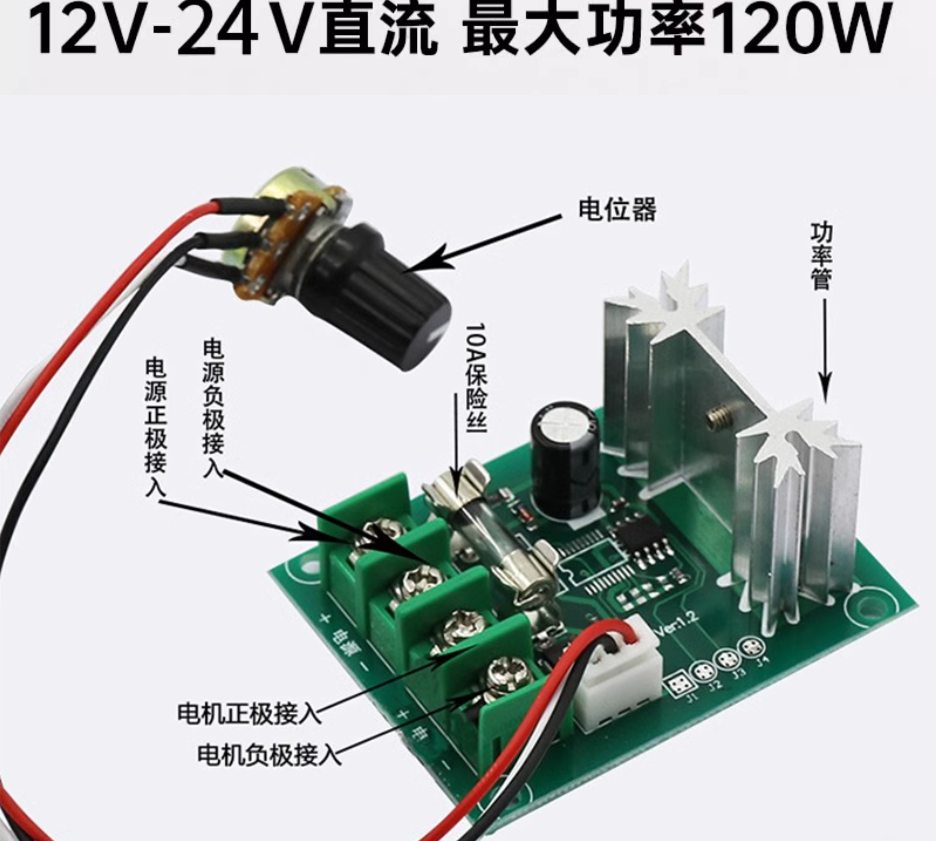

12V-24V DC maximum power 120W

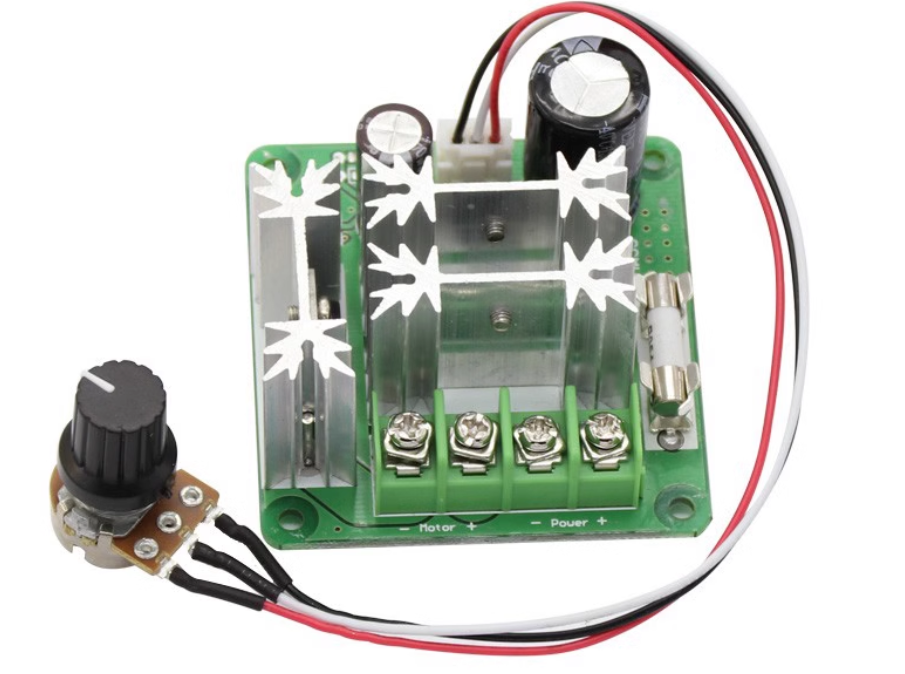

10A conventional speed control board

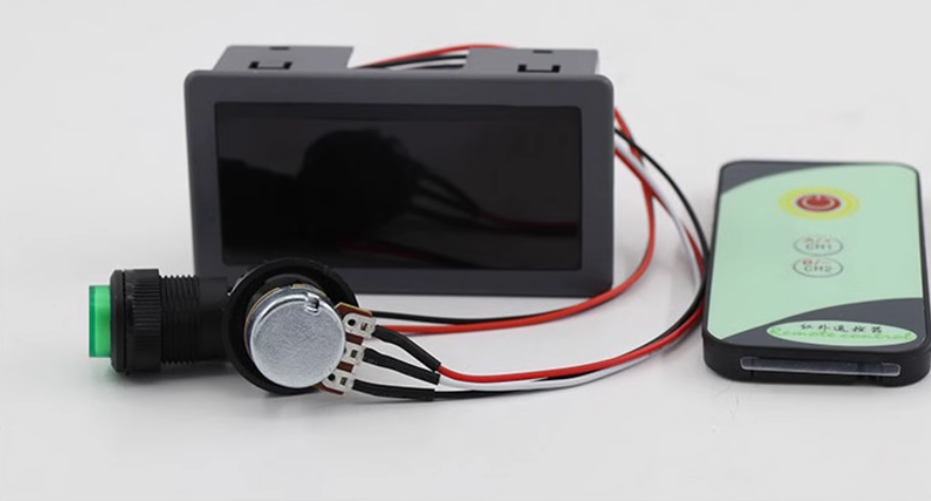

DC digital display speed regulator
30A high current
Accurate display

The remote control distance of the infrared remote control is about 3M

Brand: Xinda Motor
Model: 10A DC speed regulator
Power: 0-120W
Voltage: 12-24v
Potentiometer: resistance B10K; opening 7mm

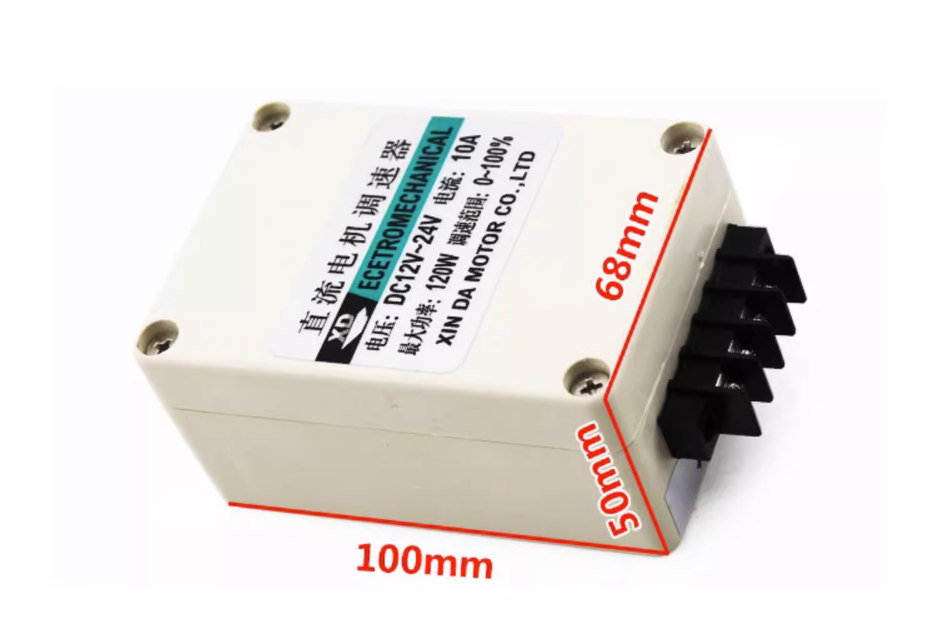

Motor size: 50*68*100mm
Current: 10A
Speed adjustment range: 0-100% motor speed adjustment
Whether forward and reverse: can be reversed


DC input, DC output, can be used as voltage regulator
The above products are in large quantities in stock for a long time. Bulk purchases are welcome. The price is favorable for the minimum batch of 50 pieces. We look forward to long-term cooperation with you.

Precautions and instructions for use (be sure to pay attention to the positive and negative points when inputting voltage)
1. The DC motor speed regulator inputs DC power and cannot be directly connected to AC power (such as household 220V AC).
electricity) otherwise it will burn out.
2. The positive and negative poles of the DC power supply cannot be connected reversely, otherwise the speed regulator will be damaged.
The i motor can be either positive or negative. When the running direction is inconsistent with expectations, the direction can be changed by adjusting the line sequence.
The potentiometer knob can change the output duty cycle of the speed regulator, thereby changing the motor speed.

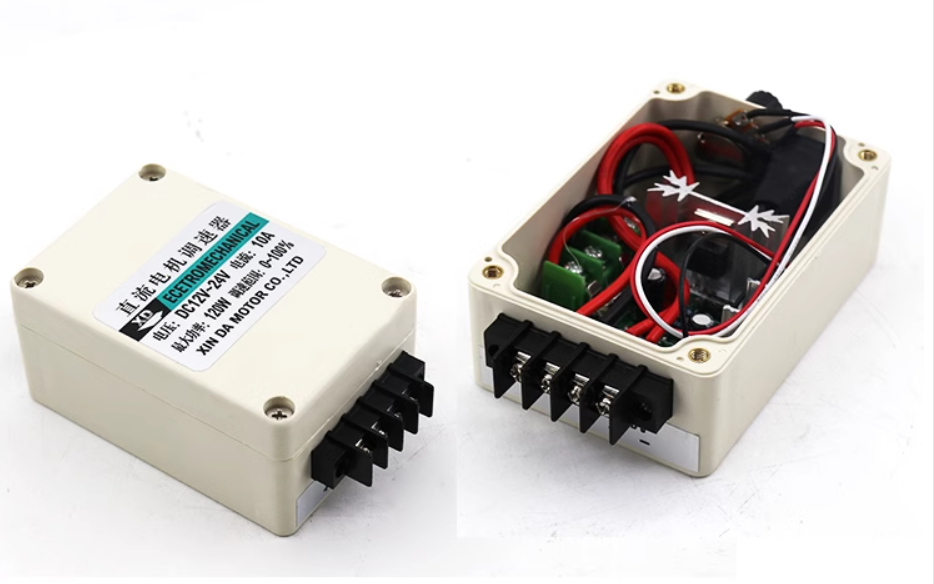

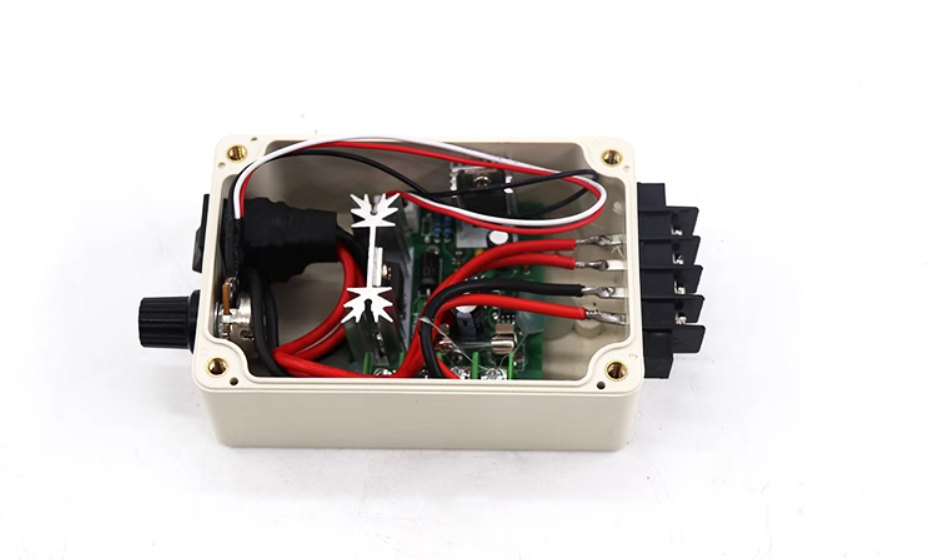

The newly upgraded interior is more sophisticated
Eliminate the exposure of external wires and instead hide the wires inside, all for the sake of safety

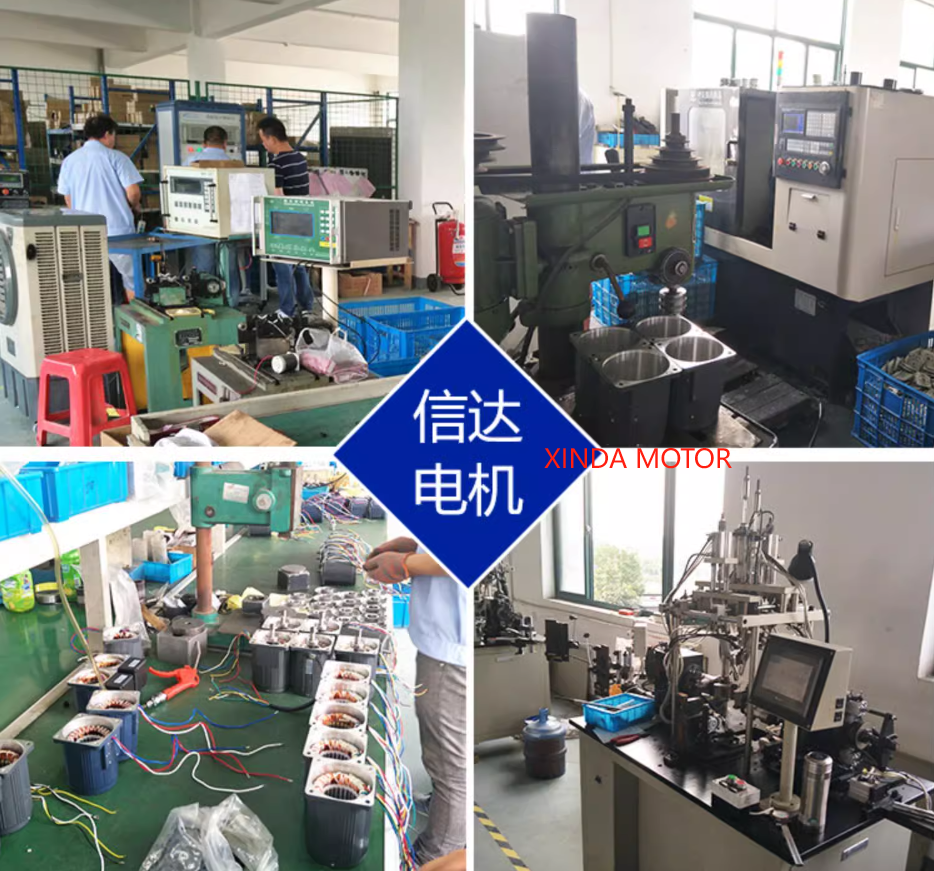

Years of production experience
Rich production and processing experience, strong technical force


One stop solution
1. Customize products suitable for customer needs 2. Solve problems for customers in a timely manner during use
